HXT - 25D-28
Specifications
- Type: Outrunner
- Weight: 58.00g (2.05oz)
- Maximum Amps: 19

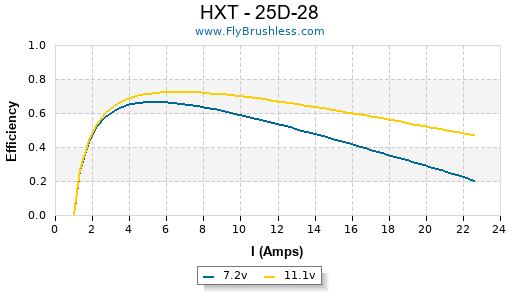

Constants
- kV: 1117
- Rm: 0.251
- Io: 0.98
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 10.01 | 0.98 | 10710 |
Bruce Abbot test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.6 | 7330 |
| 10 | 0.7 | 10450 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 7x3.5 | 1 | 6.9 | 2.25 | 15 | 7200 | 23.9 | 117 | 4.13 | 93% |
| GWS HD 7x3.5 | 1 | 7.9 | 2.7 | 21 | 8100 | 26.9 | 152 | 5.36 | 92% |
| GWS HD 7x3.5 | 1 | 8.9 | 3.15 | 28 | 9060 | 30.0 | 194 | 6.84 | 91% |
| GWS HD 7x3.5 | 1 | 9.9 | 3.7 | 36 | 9990 | 33.1 | 242 | 8.54 | 90% |
| GWS HD 7x3.5 | 1 | 10.9 | 4.3 | 46 | 10950 | 36.3 | 297 | 10.48 | 90% |
| APC WSF 7x3.8 | 1 | 7 | 4.05 | 28 | 6780 | 24.4 | 228 | 8.04 | 87% |
| APC WSF 7x3.8 | 1 | 7.9 | 5 | 39 | 7560 | 27.2 | 288 | 10.16 | 86% |
| APC WSF 7x3.8 | 1 | 8.9 | 6.1 | 54 | 8310 | 29.9 | 356 | 12.56 | 84% |
| APC WSF 7x3.8 | 1 | 9.9 | 7.3 | 72 | 9030 | 32.5 | 437 | 15.41 | 82% |
| APC WSF 7x3.8 | 1 | 10.9 | 8.6 | 93 | 9690 | 34.9 | 508 | 17.92 | 80% |
| APC SF 7x4 | 1 | 7 | 3.25 | 22 | 6990 | 26.5 | 181 | 6.38 | 89% |
| APC SF 7x4 | 1 | 7.9 | 4 | 31 | 7800 | 29.6 | 232 | 8.18 | 88% |
| APC SF 7x4 | 1 | 8.9 | 4.8 | 42 | 8640 | 32.7 | 287 | 10.12 | 87% |
| APC SF 7x4 | 1 | 9.9 | 5.85 | 57 | 9450 | 35.8 | 359 | 12.66 | 85% |
| APC SF 7x4 | 1 | 10.9 | 6.8 | 74 | 10230 | 38.8 | 423 | 14.92 | 84% |
| APC E 7x5 | 1 | 7 | 4 | 28 | 6750 | 32.0 | 196 | 6.91 | 86% |
| APC E 7x5 | 1 | 7.9 | 4.9 | 38 | 7560 | 35.8 | 250 | 8.82 | 86% |
| APC E 7x5 | 1 | 8.9 | 5.9 | 52 | 8400 | 39.8 | 312 | 11.01 | 84% |
| APC E 7x5 | 1 | 9.9 | 6.9 | 68 | 9180 | 43.5 | 380 | 13.40 | 83% |
| APC E 7x5 | 1 | 10.9 | 7.95 | 86 | 9900 | 46.9 | 446 | 15.73 | 81% |
| APC SF 7x6 | 1 | 6.9 | 4.8 | 33 | 6570 | 37.3 | 210 | 7.41 | 85% |
| APC SF 7x6 | 1 | 7.9 | 5.9 | 46 | 7290 | 41.4 | 260 | 9.17 | 83% |
| APC SF 7x6 | 1 | 8.9 | 7.15 | 63 | 8010 | 45.5 | 316 | 11.15 | 81% |
| APC SF 7x6 | 1 | 9.9 | 8.55 | 84 | 8700 | 49.4 | 378 | 13.33 | 79% |
| APC SF 7x6 | 1 | 10.9 | 9.85 | 107 | 9360 | 53.2 | 437 | 15.41 | 77% |
| APC Sport 7x7 | 1 | 6.9 | 4.4 | 30 | 6630 | 44.0 | 186 | 6.56 | 86% |
| APC Sport 7x7 | 1 | 7.9 | 5.3 | 41 | 7440 | 49.3 | 239 | 8.43 | 84% |
| APC Sport 7x7 | 1 | 8.9 | 6.4 | 56 | 8280 | 54.9 | 295 | 10.41 | 83% |
| APC Sport 7x7 | 1 | 9.9 | 7.45 | 73 | 9030 | 59.9 | 357 | 12.59 | 82% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| APC Sport 7x7 | 1 | 10.9 | 8.6 | 93 | 9780 | 64.8 | 417 | 14.71 | 80% |
| APC Sport 7x7 | 1 | 14 | 12.3 | 172 | 11220 | 74.4 | 607 | 21.41 | 72% |
| APC Sport 7x7 | 1 | 14.6 | 13.2 | 192 | 12150 | 80.5 | 652 | 23.00 | 75% |
| GWS HD 8x4 | 1 | 7 | 3.95 | 27 | 6810 | 25.8 | 246 | 8.68 | 87% |
| GWS HD 8x4 | 1 | 7.9 | 4.75 | 37 | 7620 | 28.9 | 306 | 10.79 | 86% |
| GWS HD 8x4 | 1 | 8.9 | 5.7 | 50 | 8430 | 31.9 | 377 | 13.30 | 85% |
| GWS HD 8x4 | 1 | 9.9 | 6.7 | 66 | 9180 | 34.8 | 457 | 16.12 | 83% |
| GWS HD 8x4 | 1 | 10.9 | 7.8 | 85 | 9960 | 37.7 | 538 | 18.98 | 82% |
| GWS HD 8x6 | 1 | 6.9 | 6 | 41 | 6240 | 35.5 | 281 | 9.91 | 81% |
| GWS HD 8x6 | 1 | 7.9 | 7.3 | 57 | 6900 | 39.2 | 347 | 12.24 | 78% |
| GWS HD 8x6 | 1 | 8.9 | 8.8 | 78 | 7620 | 43.3 | 418 | 14.74 | 77% |
| GWS HD 8x6 | 1 | 9.9 | 10.85 | 107 | 8190 | 46.5 | 492 | 17.35 | 74% |
| GWS HD 8x6 | 1 | 10.9 | 11.85 | 129 | 8790 | 49.9 | 567 | 20.00 | 72% |
| APC E 8x8 | 1 | 6.9 | 8.4 | 57 | 5640 | 42.7 | 268 | 9.45 | 73% |
| APC E 8x8 | 1 | 7.9 | 10.1 | 79 | 6210 | 47.0 | 330 | 11.64 | 70% |
| APC E 8x8 | 1 | 8.9 | 11.65 | 103 | 6720 | 50.9 | 388 | 13.69 | 68% |
| APC E 8x8 | 1 | 9.9 | 13.4 | 132 | 7200 | 54.5 | 448 | 15.80 | 65% |
| APC E 8x8 | 1 | 10.9 | 15.2 | 165 | 7590 | 57.5 | 508 | 17.92 | 62% |
| APC E 9x4.5 | 1 | 6.9 | 6.15 | 42 | 6240 | 26.6 | 364 | 12.84 | 81% |
| APC E 9x4.5 | 1 | 7.9 | 7.6 | 60 | 6900 | 29.4 | 458 | 16.16 | 78% |
| APC E 9x4.5 | 1 | 8.9 | 9 | 80 | 7530 | 32.1 | 550 | 19.40 | 76% |
| APC E 9x4.5 | 1 | 9.9 | 10.55 | 104 | 8160 | 34.8 | 652 | 23.00 | 74% |
| APC E 9x4.5 | 1 | 10.9 | 12.05 | 131 | 8700 | 37.1 | 746 | 26.31 | 71% |
| APC SF 9x4.7 | 1 | 6.9 | 6.85 | 47 | 6090 | 27.1 | 388 | 13.69 | 79% |
| APC SF 9x4.7 | 1 | 7.9 | 8.25 | 65 | 6750 | 30.0 | 473 | 16.68 | 76% |
| APC SF 9x4.7 | 1 | 8.9 | 9.7 | 86 | 7350 | 32.7 | 567 | 20.00 | 74% |
| APC SF 9x4.7 | 1 | 9.9 | 11.2 | 110 | 7980 | 35.5 | 670 | 23.63 | 72% |
| APC SF 9x4.7 | 1 | 10.8 | 12.7 | 137 | 8490 | 37.8 | 766 | 27.02 | 70% |
| GWS HD 9x5 | 1 | 6.9 | 6.4 | 44 | 6150 | 29.1 | 375 | 13.23 | 80% |
| GWS HD 9x5 | 1 | 7.9 | 7.7 | 60 | 6810 | 32.2 | 463 | 16.33 | 77% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 9x5 | 1 | 8.9 | 9.2 | 81 | 7440 | 35.2 | 560 | 19.75 | 75% |
| GWS HD 9x5 | 1 | 9.9 | 10.8 | 106 | 8040 | 38.1 | 663 | 23.39 | 73% |
| APC E 10x5 | 1 | 6.9 | 8.2 | 56 | 5760 | 27.3 | 446 | 15.73 | 75% |
| APC E 10x5 | 1 | 7.9 | 9.8 | 77 | 6300 | 29.8 | 548 | 19.33 | 71% |
| APC E 10x5 | 1 | 8.9 | 11.7 | 104 | 6840 | 32.4 | 652 | 23.00 | 69% |
| APC E 10x5 | 1 | 9.8 | 13.4 | 131 | 7290 | 34.5 | 748 | 26.38 | 67% |
| APC E 10x5 | 1 | 10.8 | 15.1 | 163 | 7680 | 36.4 | 840 | 29.63 | 64% |
| GWS HD 10x6 | 1 | 6.9 | 8.3 | 57 | 5670 | 32.2 | 450 | 15.87 | 74% |
| GWS HD 10x6 | 1 | 7.9 | 10 | 79 | 6240 | 35.5 | 545 | 19.22 | 71% |
| GWS HD 10x6 | 1 | 8.9 | 11.7 | 104 | 6750 | 38.4 | 649 | 22.89 | 68% |
| GWS HD 10x6 | 1 | 9.9 | 13.55 | 134 | 7260 | 41.2 | 740 | 26.10 | 66% |
| GWS HD 10x6 | 1 | 10.9 | 15.3 | 166 | 7620 | 43.3 | 835 | 29.45 | 63% |
Bruce Abbot test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC SF 7x4 | 1 | 7 | 3 | 21 | 6765 | 25.6 | 0 | 0.00 | 87% |
| APC SF 7x4 | 1 | 10 | 5.4 | 54 | 9263 | 35.1 | 0 | 0.00 | 83% |
| APC E 7x5 | 1 | 10 | 6.2 | 62 | 9065 | 42.9 | 0 | 0.00 | 81% |
| GWS EP 8x4 | 1 | 7 | 3.5 | 24 | 6652 | 25.2 | 0 | 0.00 | 85% |
| GWS EP 8x4 | 1 | 10 | 6.1 | 61 | 9093 | 34.4 | 0 | 0.00 | 81% |
| GWS HD 8x6 | 1 | 7 | 5.4 | 37 | 6215 | 35.3 | 0 | 0.00 | 79% |
| GWS HD 8x6 | 1 | 10 | 9.5 | 95 | 8278 | 47.0 | 0 | 0.00 | 74% |
| APC E 8x6 | 1 | 10 | 10.4 | 104 | 8034 | 45.6 | 0 | 0.00 | 72% |
| APC E 9x4.5 | 1 | 10 | 10.5 | 105 | 8020 | 34.2 | 0 | 0.00 | 72% |
| GWS EP 9x5 | 1 | 7 | 5.9 | 41 | 6103 | 28.9 | 0 | 0.00 | 78% |
| GWS EP 9x5 | 1 | 10 | 10 | 100 | 8154 | 38.6 | 0 | 0.00 | 73% |
| GWS HD 9x7.5 | 1 | 7 | 9 | 63 | 5392 | 38.3 | 0 | 0.00 | 69% |
| GWS HD 9x7.5 | 1 | 10 | 14.6 | 146 | 6923 | 49.2 | 0 | 0.00 | 62% |
| APC SF 10x4.7 | 1 | 7 | 9.4 | 65 | 5291 | 23.6 | 0 | 0.00 | 68% |
| GWS EP 10x6 | 1 | 7 | 8 | 56 | 5630 | 32.0 | 0 | 0.00 | 72% |
| GWS EP 10x6 | 1 | 10 | 13.1 | 131 | 7285 | 41.4 | 0 | 0.00 | 65% |
| APC E 10x7 | 1 | 7 | 9.8 | 68 | 5194 | 34.4 | 0 | 0.00 | 66% |
| GWS HD 10x8 | 1 | 7 | 11.4 | 79 | 4879 | 37.0 | 0 | 0.00 | 62% |
| GWS EP 11x7 | 1 | 7 | 10.7 | 74 | 5008 | 33.2 | 0 | 0.00 | 64% |
Comments
Bruce Abbot on 2009-01-14 02:53:25
An unusual feature of this motor is the bell, which is made of aluminium only. There is no iron ring to complete the magnetic path. Despite this, it still manages to achieve good power output and better efficiency than some other outrunners of similar size and cost. Apparently, back-iron is not required when the magnets are curved and have 100% coverage.
