XMotor - 3536CA-8T
Specifications
- Type: Outrunner
- Weight: 105.00g (3.70oz)
- Diameter: 35.00mm (1.38in)
- Length: 36.00mm (1.42in)
- Shaft Diameter: 4.00mm (0.16in)
- Maximum Amps: 32

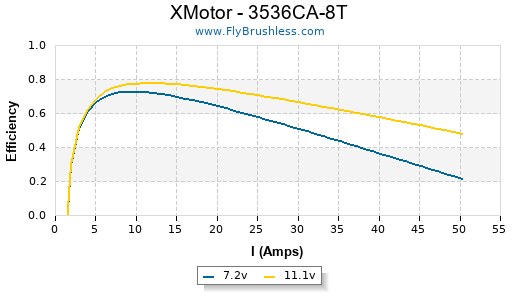

Constants
- kV: 1010
- Rm: 0.112
- Io: 1.4
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 1.15 | 6930 |
| 8 | 1.2 | 7920 |
| 10 | 1.4 | 9900 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 9x4.5 | 1 | 6.9 | 6.15 | 42 | 6330 | 27.0 | 369 | 13.02 | 91% |
| APC E 9x4.5 | 1 | 7.9 | 7.6 | 60 | 7050 | 30.0 | 472 | 16.65 | 88% |
| APC E 9x4.5 | 1 | 8.9 | 9.15 | 81 | 7800 | 33.2 | 584 | 20.60 | 87% |
| APC E 9x4.5 | 1 | 9.9 | 10.9 | 107 | 8580 | 36.6 | 706 | 24.90 | 86% |
| APC E 9x4.5 | 1 | 10.8 | 12.7 | 137 | 9240 | 39.4 | 830 | 29.28 | 85% |
| GWS HD 10x6 | 1 | 6.9 | 8.25 | 56 | 6030 | 34.3 | 480 | 16.93 | 87% |
| GWS HD 10x6 | 1 | 7.9 | 10.25 | 80 | 6750 | 38.4 | 612 | 21.59 | 85% |
| GWS HD 10x6 | 1 | 8.8 | 12.2 | 107 | 7440 | 42.3 | 744 | 26.24 | 84% |
| GWS HD 10x6 | 1 | 9.8 | 14.2 | 139 | 8100 | 46.0 | 874 | 30.83 | 82% |
| GWS HD 10x6 | 1 | 10.8 | 16.4 | 177 | 8730 | 49.6 | 1027 | 36.23 | 80% |
| APC E 10x7 | 1 | 6.8 | 10.9 | 74 | 5700 | 37.8 | 491 | 17.32 | 83% |
| APC E 10x7 | 1 | 7.8 | 12.9 | 100 | 6390 | 42.4 | 626 | 22.08 | 81% |
| APC E 10x7 | 1 | 8.8 | 15 | 132 | 7020 | 46.5 | 771 | 27.20 | 79% |
| APC E 10x7 | 1 | 9.8 | 17.4 | 170 | 7680 | 50.9 | 930 | 32.80 | 78% |
| APC E 10x7 | 1 | 10.7 | 19.7 | 210 | 8280 | 54.9 | 1092 | 38.52 | 77% |
| APC E 11x5.5 | 1 | 6.8 | 10.5 | 71 | 5730 | 29.8 | 600 | 21.16 | 83% |
| APC E 11x5.5 | 1 | 7.8 | 13.1 | 102 | 6390 | 33.3 | 770 | 27.16 | 81% |
| APC E 11x5.5 | 1 | 8.8 | 15.6 | 137 | 6990 | 36.4 | 923 | 32.56 | 79% |
| APC E 11x5.5 | 1 | 9.8 | 18.4 | 180 | 7560 | 39.4 | 1100 | 38.80 | 76% |
| APC E 11x5.5 | 1 | 10.7 | 21.3 | 227 | 8100 | 42.2 | 1285 | 45.33 | 75% |
| GWS HD 11x7 | 1 | 6.8 | 12.4 | 84 | 5550 | 36.8 | 681 | 24.02 | 81% |
| GWS HD 11x7 | 1 | 7.8 | 15 | 117 | 6150 | 40.8 | 841 | 29.67 | 78% |
| GWS HD 11x7 | 1 | 8.7 | 17.7 | 153 | 6720 | 44.5 | 993 | 35.03 | 76% |
| GWS HD 11x7 | 1 | 9.7 | 20.66 | 200 | 7260 | 48.1 | 1165 | 41.09 | 74% |
| GWS HD 11x7 | 1 | 10.7 | 23.7 | 253 | 7740 | 51.3 | 1336 | 47.13 | 72% |
| APC E 11x7 | 1 | 6.8 | 13.1 | 89 | 5460 | 36.2 | 619 | 21.83 | 79% |
| APC E 11x7 | 1 | 7.8 | 15.9 | 124 | 6030 | 40.0 | 768 | 27.09 | 77% |
| APC E 11x7 | 1 | 8.7 | 18.75 | 163 | 6630 | 44.0 | 919 | 32.42 | 75% |
| APC E 11x7 | 1 | 9.7 | 21.9 | 212 | 7110 | 47.1 | 1070 | 37.74 | 73% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| APC E 11x7 | 1 | 10.5 | 24.6 | 258 | 7590 | 50.3 | 1225 | 43.21 | 72% |
| APC E 11x7 | 1 | 11.5 | 28 | 322 | 7890 | 52.3 | 1402 | 49.45 | 68% |
| APC E 12x6 | 1 | 7.6 | 16 | 121 | 5790 | 32.9 | 886 | 31.25 | 75% |
| APC E 12x6 | 1 | 11.2 | 28.1 | 314 | 7530 | 42.8 | 1520 | 53.62 | 67% |
| APC E 12x6 | 1 | 11.4 | 29.3 | 334 | 7650 | 43.5 | 1630 | 57.50 | 66% |
| GWS HD 12x6 | 1 | 6.8 | 13.2 | 89 | 5430 | 30.9 | 741 | 26.14 | 79% |
| GWS HD 12x6 | 1 | 7.8 | 16.2 | 126 | 6030 | 34.3 | 925 | 32.63 | 77% |
| GWS HD 12x6 | 1 | 8.7 | 19.3 | 167 | 6570 | 37.3 | 1115 | 39.33 | 75% |
| GWS HD 12x6 | 1 | 9.7 | 22.3 | 216 | 7080 | 40.2 | 1287 | 45.40 | 72% |
| GWS HD 12x6 | 1 | 11.1 | 26.5 | 294 | 7650 | 43.5 | 1548 | 54.60 | 68% |
| GWS HD 12x6 | 1 | 11.2 | 27.3 | 305 | 7680 | 43.6 | 1609 | 56.76 | 68% |
| GWS HD 12x6 | 1 | 11.4 | 28 | 319 | 7830 | 44.5 | 1690 | 59.61 | 68% |
| APC E 12x8 | 1 | 7.6 | 18 | 136 | 5460 | 41.4 | 890 | 31.39 | 71% |
| APC E 12x8 | 1 | 10 | 28.1 | 281 | 6390 | 48.4 | 1311 | 46.24 | 63% |
