Komodo - KH2204-15
Specifications
- Type: Outrunner
- Weight: 26.00g (0.92oz)
- Diameter: 27.15mm (1.07in)
- Length: 15.25mm (0.60in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 9

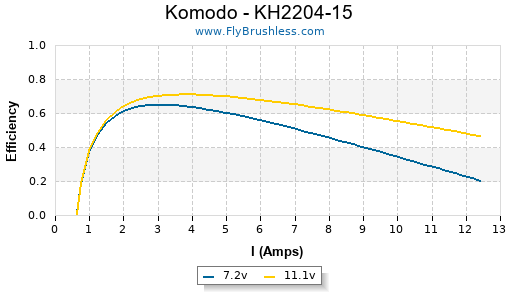

Constants
- kV: 1320
- Rm: 0.458
- Io: 0.6
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.5 | 8910 |
| 8 | 0.55 | 10220 |
| 10 | 0.6 | 12800 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| Zagi Carbon 5.1x4.9 | 1 | 7 | 2.05 | 14 | 8160 | 37.9 | 94 | 3.32 | 88% |
| Zagi Carbon 5.1x4.9 | 1 | 8 | 2.5 | 20 | 9210 | 42.7 | 120 | 4.23 | 87% |
| Zagi Carbon 5.1x4.9 | 1 | 9 | 2.9 | 26 | 10140 | 47.0 | 144 | 5.08 | 85% |
| Zagi Carbon 5.1x4.9 | 1 | 10 | 3.4 | 34 | 11190 | 51.9 | 177 | 6.24 | 85% |
| Zagi Carbon 5.1x4.9 | 1 | 11 | 3.85 | 42 | 12090 | 56.1 | 207 | 7.30 | 83% |
| Zagi Carbon 5.1x4.9 | 1 | 14.7 | 6 | 88 | 15300 | 71.0 | 339 | 11.96 | 79% |
| GWS HD 7x3.5 | 1 | 6.9 | 2.3 | 15 | 7950 | 26.4 | 140 | 4.94 | 87% |
| GWS HD 7x3.5 | 1 | 7.9 | 2.85 | 22 | 8940 | 29.6 | 182 | 6.42 | 86% |
| GWS HD 7x3.5 | 1 | 9 | 3.4 | 30 | 9900 | 32.8 | 230 | 8.11 | 83% |
| GWS HD 7x3.5 | 1 | 9.9 | 4 | 39 | 10740 | 35.6 | 281 | 9.91 | 82% |
| GWS HD 7x3.5 | 1 | 10.9 | 4.6 | 50 | 11610 | 38.5 | 331 | 11.68 | 81% |
| GWS HD 7x3.5 | 1 | 14.7 | 7.2 | 105 | 14490 | 48.0 | 545 | 19.22 | 75% |
| APC SF 7x4 | 1 | 6.9 | 3.65 | 25 | 7260 | 27.5 | 210 | 7.41 | 80% |
| APC SF 7x4 | 1 | 7.9 | 4.5 | 35 | 8010 | 30.3 | 261 | 9.21 | 77% |
| APC SF 7x4 | 1 | 8.9 | 5.3 | 47 | 8730 | 33.1 | 314 | 11.08 | 74% |
| APC SF 7x4 | 1 | 9.9 | 6.3 | 62 | 9420 | 35.7 | 370 | 13.05 | 72% |
| APC SF 7x4 | 1 | 10.9 | 7.2 | 78 | 9960 | 37.7 | 418 | 14.74 | 69% |
| APC SF 7x6 | 1 | 6.9 | 5 | 34 | 6510 | 37.0 | 211 | 7.44 | 71% |
| APC SF 7x6 | 1 | 7.9 | 6.05 | 47 | 7140 | 40.6 | 256 | 9.03 | 68% |
| APC SF 7x6 | 1 | 8.9 | 7.1 | 63 | 7680 | 43.6 | 298 | 10.51 | 65% |
| APC SF 7x6 | 1 | 9.9 | 8.3 | 82 | 8160 | 46.4 | 340 | 11.99 | 62% |
| APC SF 7x6 | 1 | 10.9 | 9.3 | 101 | 8550 | 48.6 | 376 | 13.26 | 59% |
| GWS HD 8x4 | 1 | 6.9 | 4.3 | 29 | 6930 | 26.2 | 258 | 9.10 | 76% |
| GWS HD 8x4 | 1 | 7.9 | 5.15 | 40 | 7650 | 29.0 | 316 | 11.15 | 73% |
| GWS HD 8x4 | 1 | 8.9 | 6.05 | 53 | 8310 | 31.5 | 376 | 13.26 | 71% |
| GWS HD 8x4 | 1 | 9.9 | 7.05 | 69 | 8940 | 33.9 | 444 | 15.66 | 68% |
| GWS HD 8x4 | 1 | 10.9 | 7.9 | 86 | 9450 | 35.8 | 494 | 17.43 | 66% |
| GWS RS 8x4.3 | 1 | 6.9 | 5.3 | 36 | 6390 | 26.0 | 286 | 10.09 | 70% |
| GWS RS 8x4.3 | 1 | 7.9 | 6.3 | 49 | 7020 | 28.6 | 348 | 12.28 | 67% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS RS 8x4.3 | 1 | 8.9 | 7.25 | 64 | 7620 | 31.0 | 409 | 14.43 | 65% |
| GWS RS 8x4.3 | 1 | 9.9 | 8.2 | 81 | 8130 | 33.1 | 465 | 16.40 | 62% |
Comments
Dr Kiwi on 2011-05-12 07:27:55
Overall length (= shaft length) = 44.87mm
