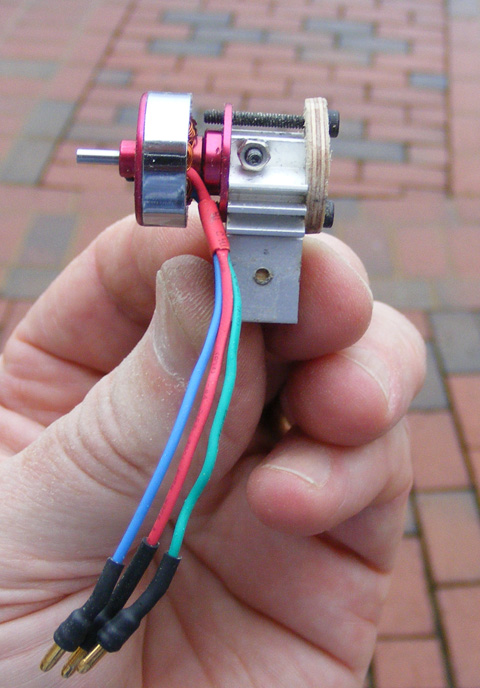

AEO - C10-2100
Specifications
- Type: Outrunner
- Weight: 10.00g (0.35oz)
- Diameter: 17.85mm (0.70in)
- Length: 14.60mm (0.57in)
- Shaft Diameter: 2.00mm (0.08in)
- Maximum Amps: 5
- Maximum RPM: 20000
Constants
- kV: 2210
- Rm: 1.6
- Io: 0.35
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.25 | 14550 |
| 8 | 0.3 | 16740 |
| 10.01 | 0.35 | 20850 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS DD 3x2 | 1 | 7 | 0.9 | 6 | 12930 | 24.5 | 34 | 1.20 | 84% |
| GWS DD 3x2 | 1 | 8 | 1 | 8 | 14580 | 27.6 | 44 | 1.55 | 82% |
| GWS DD 3x2 | 1 | 8.9 | 1.2 | 10 | 16050 | 30.4 | 56 | 1.98 | 82% |
| GWS DD 3x2 | 1 | 9.9 | 1.3 | 12 | 17460 | 33.1 | 65 | 2.29 | 80% |
| GWS DD 3x2 | 1 | 10.9 | 1.55 | 16 | 18810 | 35.6 | 75 | 2.65 | 78% |
| GWS DD 4x2.5 | 1 | 7 | 1.35 | 9 | 11400 | 27.0 | 60 | 2.12 | 74% |
| GWS DD 4x2.5 | 1 | 7.4 | 1.45 | 10 | 11910 | 28.2 | 66 | 2.33 | 73% |
| GWS DD 4x2.5 | 1 | 8 | 1.55 | 12 | 12690 | 30.0 | 74 | 2.61 | 72% |
| GWS DD 4x2.5 | 1 | 9 | 1.8 | 16 | 13920 | 33.0 | 90 | 3.17 | 70% |
| GWS DD 4x2.5 | 1 | 10 | 2.05 | 20 | 15060 | 35.6 | 105 | 3.70 | 68% |
| GWS DD 4x2.5 | 1 | 11 | 2.3 | 25 | 16080 | 38.1 | 120 | 4.23 | 66% |
| GWS HD 4x4 | 1 | 6.9 | 1.8 | 12 | 9900 | 37.5 | 55 | 1.94 | 65% |
| GWS HD 4x4 | 1 | 7.4 | 1.9 | 14 | 10290 | 39.0 | 59 | 2.08 | 63% |
| GWS HD 4x4 | 1 | 8 | 2.1 | 16 | 10830 | 41.0 | 66 | 2.33 | 61% |
| GWS HD 4x4 | 1 | 8.9 | 2.4 | 21 | 11670 | 44.2 | 78 | 2.75 | 59% |
| GWS HD 4x4 | 1 | 10 | 2.75 | 27 | 12480 | 47.3 | 90 | 3.17 | 56% |
| GWS HD 4x4 | 1 | 11 | 3.05 | 33 | 13080 | 49.5 | 102 | 3.60 | 54% |
| GWS HD 4.5x3 | 1 | 7 | 1.65 | 11 | 10410 | 29.6 | 75 | 2.65 | 67% |
| GWS HD 4.5x3 | 1 | 7.4 | 1.8 | 13 | 10920 | 31.0 | 83 | 2.93 | 67% |
| GWS HD 4.5x3 | 1 | 8 | 1.95 | 15 | 11400 | 32.4 | 91 | 3.21 | 64% |
| GWS HD 4.5x3 | 1 | 8.9 | 2.25 | 20 | 12330 | 35.0 | 107 | 3.77 | 63% |
| GWS HD 4.5x3 | 1 | 10 | 2.6 | 26 | 13140 | 37.3 | 121 | 4.27 | 59% |
| GWS HD 4.5x3 | 1 | 10.9 | 2.9 | 31 | 13890 | 39.5 | 139 | 4.90 | 58% |
| GWS HD 4.5x4 | 1 | 7 | 2 | 14 | 9300 | 35.2 | 76 | 2.68 | 60% |
| GWS HD 4.5x4 | 1 | 7.4 | 2.15 | 15 | 9720 | 36.8 | 82 | 2.89 | 59% |
| GWS HD 4.5x4 | 1 | 7.9 | 2.3 | 18 | 10170 | 38.5 | 89 | 3.14 | 58% |
| GWS HD 4.5x4 | 1 | 8.9 | 2.6 | 23 | 11040 | 41.8 | 108 | 3.81 | 56% |
| GWS HD 4.5x4 | 1 | 9.9 | 2.9 | 28 | 11640 | 44.1 | 121 | 4.27 | 53% |
| GWS HD 4.5x4 | 1 | 10.9 | 3.25 | 35 | 12210 | 46.2 | 135 | 4.76 | 51% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| Gunther 4.92x4.33 | 1 | 7 | 2.5 | 17 | 7830 | 32.1 | 94 | 3.32 | 51% |
| Gunther 4.92x4.33 | 1 | 7.4 | 2.6 | 19 | 8130 | 33.3 | 97 | 3.42 | 50% |
| GWS HD 5x3 | 1 | 7 | 1.85 | 12 | 9930 | 28.2 | 91 | 3.21 | 64% |
| GWS HD 5x3 | 1 | 7.4 | 2 | 14 | 10320 | 29.3 | 99 | 3.49 | 63% |
| GWS HD 5x3 | 1 | 7.9 | 2.15 | 16 | 10800 | 30.7 | 108 | 3.81 | 62% |
| GWS HD 5x3 | 1 | 9 | 2.5 | 22 | 11730 | 33.3 | 129 | 4.55 | 59% |
| GWS HD 5x3 | 1 | 10 | 2.8 | 28 | 12480 | 35.5 | 145 | 5.11 | 56% |
| GWS HD 5x3 | 1 | 10.9 | 3.1 | 33 | 13110 | 37.2 | 163 | 5.75 | 54% |
| GWS HD 6x3 | 1 | 7 | 2.4 | 16 | 8250 | 23.4 | 111 | 3.92 | 53% |
| GWS HD 6x3 | 1 | 7.4 | 2.55 | 18 | 8430 | 23.9 | 120 | 4.23 | 52% |
| GWS HD 7x3.5 | 1 | 7 | 2.6 | 18 | 7050 | 23.4 | 108 | 3.81 | 46% |
