ARC - 20-34-110
Specifications
- Type: Inrunner
- Weight: 42.00g (1.48oz)
- Diameter: 20.00mm (0.79in)
- Length: 34.00mm (1.34in)
- Shaft Diameter: 2.00mm (0.08in)
- Maximum Amps: 11

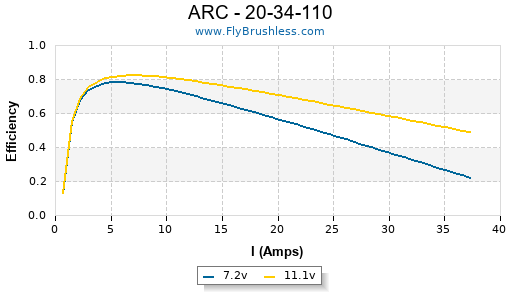

Constants
- kV: 3050
- Rm: 0.15
- Io: 0.65
Io Test Data
Dr Kiwi test results
Volts | Amps | RPM |
---|---|---|
6 | 0.45 | 18240 |
8 | 0.55 | 24180 |
10 | 0.55 | 30270 |
Test Data
Dr Kiwi test results
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
---|---|---|---|---|---|---|---|---|---|
Wemotec MicroFan Impeller 1.91x3 | 1 | 6.9 | 2.1 | 14 | 20370 | 57.9 | 55 | 1.94 | 97% |
Wemotec MicroFan Impeller 1.91x3 | 1 | 7.9 | 2.75 | 21 | 23280 | 66.1 | 73 | 2.57 | 97% |
Wemotec MicroFan Impeller 1.91x3 | 1 | 8.9 | 3.1 | 27 | 26070 | 74.1 | 91 | 3.21 | 96% |
Wemotec MicroFan Impeller 1.91x3 | 1 | 9.9 | 3.7 | 36 | 28800 | 81.8 | 115 | 4.06 | 95% |
Wemotec MicroFan Impeller 1.91x3 | 1 | 10.8 | 4.3 | 46 | 31620 | 89.8 | 139 | 4.90 | 96% |
Wemotec MicroFan Impeller 1.91x3 | 1 | 13.4 | 6.2 | 83 | 38220 | 108.6 | 209 | 7.37 | 94% |
GWS EDF55 2.17x3.7 | 1 | 6.9 | 4.4 | 30 | 19040 | 66.7 | 124 | 4.37 | 90% |
GWS EDF55 2.17x3.7 | 1 | 7.9 | 6.4 | 50 | 21000 | 73.6 | 150 | 5.29 | 87% |
GWS EDF55 2.17x3.7 | 1 | 8.8 | 6.7 | 58 | 23880 | 83.7 | 197 | 6.95 | 89% |
GWS EDF55 2.17x3.7 | 1 | 9.8 | 8.1 | 79 | 26220 | 91.9 | 240 | 8.47 | 88% |
GWS EDF55 2.17x3.7 | 1 | 10.8 | 9.25 | 99 | 28350 | 99.3 | 284 | 10.02 | 86% |
GWS EDF55 2.17x3.7 | 1 | 13.6 | 13.3 | 180 | 33880 | 118.7 | 408 | 14.39 | 82% |
GWS HD 3x3 | 1 | 7 | 3.75 | 26 | 19620 | 55.7 | 86 | 3.03 | 92% |
GWS HD 3x3 | 1 | 8 | 4.65 | 37 | 22200 | 63.1 | 109 | 3.84 | 91% |
GWS HD 3x3 | 1 | 8.9 | 5.6 | 49 | 24630 | 70.0 | 133 | 4.69 | 91% |
GWS HD 3x3 | 1 | 9.9 | 6.65 | 65 | 27120 | 77.0 | 163 | 5.75 | 90% |
GWS HD 3x3 | 1 | 10.9 | 7.8 | 85 | 29640 | 84.2 | 193 | 6.81 | 89% |
APC E 4.2x4 | 1 | 6.9 | 7.1 | 48 | 18390 | 69.7 | 154 | 5.43 | 87% |
APC E 4.2x4 | 1 | 7.9 | 8.9 | 70 | 20730 | 78.5 | 192 | 6.77 | 86% |
APC E 4.2x4 | 1 | 8.9 | 10.6 | 94 | 22680 | 85.9 | 240 | 8.47 | 84% |
APC E 4.2x4 | 1 | 9.9 | 12.45 | 123 | 24810 | 94.0 | 282 | 9.95 | 82% |
APC E 4.2x4 | 1 | 10.9 | 14.5 | 158 | 26940 | 102.0 | 330 | 11.64 | 81% |
APC E 4.5x4.1 | 1 | 6.9 | 9.45 | 65 | 17250 | 67.0 | 208 | 7.34 | 82% |
APC E 4.5x4.1 | 1 | 7 | 9.7 | 67 | 17190 | 66.7 | 207 | 7.30 | 81% |
APC E 4.5x4.1 | 1 | 7.3 | 10.45 | 76 | 18030 | 70.0 | 225 | 7.94 | 81% |
APC E 4.75x4.75 | 1 | 6.9 | 12 | 82 | 15570 | 70.0 | 194 | 6.84 | 74% |
APC E 5.25x6.25 | 1 | 6.6 | 16.1 | 106 | 12510 | 74.0 | 201 | 7.09 | 62% |
APC E 5.5x4.5 | 1 | 6.6 | 14.3 | 94 | 14880 | 63.4 | 251 | 8.85 | 74% |
GWS HD 8x4 | 3 | 6.9 | 3.65 | 25 | 6630 | 25.1 | 215 | 7.58 | 95% |
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
GWS HD 8x4 | 3 | 8 | 4.45 | 35 | 7500 | 28.4 | 276 | 9.74 | 92% |
GWS HD 8x4 | 3 | 8.9 | 5.4 | 48 | 8370 | 31.7 | 343 | 12.10 | 93% |
GWS HD 8x4 | 3 | 9.9 | 6.5 | 64 | 9240 | 35.0 | 429 | 15.13 | 92% |
GWS HD 8x4 | 3 | 10.9 | 7.55 | 82 | 10020 | 38.0 | 508 | 17.92 | 90% |
GWS HD 9x5 | 3 | 6.9 | 6.5 | 44 | 6210 | 29.4 | 375 | 13.23 | 89% |
GWS HD 9x5 | 4.43 | 7 | 2.6 | 18 | 4590 | 21.7 | 197 | 6.95 | 95% |
GWS HD 9x5 | 3 | 7.9 | 8.05 | 63 | 6960 | 33.0 | 476 | 16.79 | 87% |
GWS HD 9x5 | 4.43 | 8 | 3.2 | 25 | 5220 | 24.7 | 256 | 9.03 | 95% |
GWS HD 9x5 | 3 | 8.9 | 9.7 | 86 | 7680 | 36.4 | 581 | 20.49 | 85% |
GWS HD 9x5 | 4.43 | 9 | 3.9 | 35 | 5850 | 27.7 | 321 | 11.32 | 94% |
GWS HD 9x5 | 3 | 9.9 | 11.4 | 112 | 8340 | 39.5 | 690 | 24.34 | 83% |
GWS HD 9x5 | 4.43 | 9.9 | 4.65 | 46 | 6420 | 30.4 | 390 | 13.76 | 94% |
GWS HD 9x5 | 4.43 | 10.9 | 5.5 | 59 | 7050 | 33.4 | 477 | 16.83 | 94% |
APC SF 10x4.7 | 4.43 | 6.9 | 4.6 | 31 | 4380 | 19.5 | 333 | 11.75 | 92% |
APC SF 10x4.7 | 4.43 | 7.9 | 5.85 | 46 | 4920 | 21.9 | 448 | 15.80 | 90% |
APC SF 10x4.7 | 4.43 | 8.9 | 7.25 | 64 | 5460 | 24.3 | 538 | 18.98 | 89% |
APC SF 10x4.7 | 4.43 | 9.9 | 8.8 | 87 | 5970 | 26.6 | 661 | 23.32 | 88% |
APC SF 10x4.7 | 4.43 | 10.9 | 10.45 | 113 | 6480 | 28.8 | 788 | 27.80 | 86% |
GWS HD 10x6 | 4.43 | 7 | 3.65 | 25 | 4500 | 25.6 | 272 | 9.59 | 93% |
GWS HD 10x6 | 4.43 | 7.9 | 4.5 | 35 | 5070 | 28.8 | 345 | 12.17 | 93% |
GWS HD 10x6 | 4.43 | 8.9 | 5.45 | 48 | 5670 | 32.2 | 426 | 15.03 | 93% |
GWS HD 10x6 | 4.43 | 9.9 | 6.6 | 65 | 6240 | 35.5 | 526 | 18.55 | 92% |
GWS HD 10x6 | 4.43 | 10.9 | 7.7 | 83 | 6810 | 38.7 | 619 | 21.83 | 91% |
GWS HD 10x8 | 4.43 | 6.9 | 5.9 | 40 | 4260 | 32.3 | 311 | 10.97 | 90% |
GWS HD 10x8 | 4.43 | 7.9 | 7.45 | 58 | 4800 | 36.4 | 399 | 14.07 | 88% |
GWS HD 10x8 | 4.43 | 8.9 | 9.05 | 80 | 5280 | 40.0 | 490 | 17.28 | 86% |
GWS HD 10x8 | 4.43 | 9.9 | 10.7 | 105 | 5760 | 43.6 | 576 | 20.32 | 85% |
GWS HD 10x8 | 4.43 | 10.9 | 12.6 | 137 | 6240 | 47.3 | 675 | 23.81 | 83% |
Ikarus 10.5x5 | 5.33 | 6.9 | 3.95 | 27 | 3660 | 17.3 | 312 | 11.01 | 93% |
Ikarus 10.5x5 | 5.33 | 7.9 | 4.85 | 38 | 4140 | 19.6 | 398 | 14.04 | 92% |
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
Ikarus 10.5x5 | 5.33 | 8.9 | 5.85 | 52 | 4620 | 21.9 | 489 | 17.25 | 91% |
Ikarus 10.5x5 | 5.33 | 9.9 | 6.85 | 67 | 5070 | 24.0 | 592 | 20.88 | 89% |
Ikarus 10.5x5 | 5.33 | 10.9 | 8 | 87 | 5520 | 26.1 | 700 | 24.69 | 88% |
APC SF 11x4.7 | 5.33 | 6.9 | 3.8 | 26 | 3690 | 16.4 | 312 | 11.01 | 93% |
APC SF 11x4.7 | 5.33 | 7.9 | 4.85 | 38 | 4140 | 18.4 | 412 | 14.53 | 92% |
APC SF 11x4.7 | 5.33 | 8.9 | 6 | 53 | 4590 | 20.4 | 524 | 18.48 | 90% |
APC SF 11x4.7 | 5.33 | 9.9 | 7.25 | 71 | 5040 | 22.4 | 640 | 22.58 | 89% |
APC SF 11x4.7 | 5.33 | 10.9 | 8.6 | 93 | 5430 | 24.2 | 753 | 26.56 | 87% |
Graupner SF 11x5 | 5.33 | 6.9 | 4.2 | 28 | 3630 | 17.2 | 332 | 11.71 | 92% |
Graupner SF 11x5 | 5.33 | 7.9 | 5.2 | 41 | 4110 | 19.5 | 427 | 15.06 | 91% |
Graupner SF 11x5 | 5.33 | 8.9 | 6.15 | 54 | 4560 | 21.6 | 524 | 18.48 | 90% |
Graupner SF 11x5 | 5.33 | 9.9 | 7.35 | 72 | 5040 | 23.9 | 627 | 22.12 | 89% |
Graupner SF 11x5 | 5.33 | 10.9 | 8.5 | 92 | 5430 | 25.7 | 747 | 26.35 | 87% |
APC E 11x5.5 | 5.33 | 6.9 | 3.1 | 21 | 3750 | 19.5 | 261 | 9.21 | 95% |
APC E 11x5.5 | 5.33 | 7.9 | 3.9 | 30 | 4230 | 22.0 | 340 | 11.99 | 94% |
APC E 11x5.5 | 5.33 | 8.9 | 4.6 | 40 | 4710 | 24.5 | 421 | 14.85 | 92% |
APC E 11x5.5 | 5.33 | 9.9 | 5.55 | 54 | 5220 | 27.2 | 525 | 18.52 | 92% |
APC E 11x5.5 | 5.33 | 10.9 | 6.55 | 71 | 5670 | 29.5 | 626 | 22.08 | 91% |
GWS HD 11x7 | 4.43 | 6.9 | 5.6 | 38 | 4290 | 28.4 | 396 | 13.97 | 90% |
GWS HD 11x7 | 5.33 | 6.9 | 3.6 | 24 | 3690 | 24.5 | 298 | 10.51 | 93% |
GWS HD 11x7 | 4.43 | 7.9 | 7.05 | 55 | 4830 | 32.0 | 511 | 18.02 | 89% |
GWS HD 11x7 | 5.33 | 7.9 | 4.45 | 35 | 4170 | 27.6 | 385 | 13.58 | 92% |
GWS HD 11x7 | 4.43 | 8.9 | 8.55 | 76 | 5370 | 35.6 | 632 | 22.29 | 88% |
GWS HD 11x7 | 5.33 | 8.9 | 5.5 | 48 | 4680 | 31.0 | 484 | 17.07 | 92% |
GWS HD 11x7 | 4.43 | 9.9 | 10.2 | 100 | 5850 | 38.8 | 759 | 26.77 | 86% |
GWS HD 11x7 | 5.33 | 9.9 | 6.5 | 64 | 5130 | 34.0 | 584 | 20.60 | 91% |
GWS HD 11x7 | 4.43 | 10.8 | 11.75 | 126 | 6300 | 41.8 | 870 | 30.69 | 85% |
APC SF 12x6 | 4.43 | 6.9 | 10.05 | 69 | 3810 | 21.6 | 614 | 21.66 | 80% |
APC SF 12x6 | 4.43 | 7.8 | 12.4 | 96 | 4170 | 23.7 | 751 | 26.49 | 78% |
GWS HD 12x8 | 4.43 | 6.9 | 7.75 | 53 | 4050 | 30.7 | 512 | 18.06 | 85% |
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
GWS HD 12x8 | 4.43 | 7.9 | 9.65 | 76 | 4530 | 34.3 | 638 | 22.50 | 83% |
APC E 13x6.5 | 4.43 | 6.9 | 8.1 | 55 | 4020 | 24.7 | 559 | 19.72 | 85% |
APC E 13x6.5 | 4.43 | 7.9 | 10.1 | 79 | 4470 | 27.5 | 708 | 24.97 | 82% |
APC E 13x8 | 4.43 | 6.9 | 9.3 | 64 | 3900 | 29.6 | 579 | 20.42 | 82% |
APC E 13x8 | 4.43 | 7.9 | 11.45 | 90 | 4320 | 32.7 | 722 | 25.47 | 79% |
