E-max - BL 2215/25


E-max - BL 2215/25

Specifications

  • Type: Outrunner
  • Weight: 59.00g (2.08oz)
  • Diameter: 28.30mm (1.11in)
  • Length: 32.86mm (1.29in)
  • Shaft Diameter: 3.00mm (0.12in)
  • Maximum Amps: 17

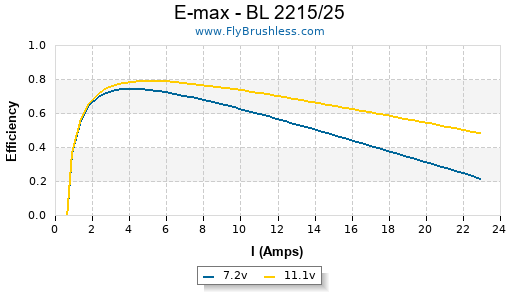

Constants

  • kV: 985
  • Rm: 0.245
  • Io: 0.57



Io Test Data

Dr Kiwi test results
Volts Amps RPM
10.025 0.57 9720

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 9x5 1 6.9 4.7 32 5700 27.0 314 11.08 84%
GWS HD 9x5 1 7.9 5.7 45 6390 30.3 398 14.04 82%
GWS HD 9x5 1 8.9 6.85 60 7020 33.2 486 17.14 80%
GWS HD 9x5 1 9.9 8.1 80 7680 36.4 584 20.60 79%
APC E 10x5 1 6.9 6.25 43 5370 25.4 392 13.83 79%
APC E 10x5 1 7.9 7.6 60 5970 28.3 483 17.04 77%
APC E 10x5 1 8.9 9 80 6510 30.8 586 20.67 74%
APC E 10x5 1 9.9 10.55 104 7020 33.2 686 24.20 72%
APC E 10x5 1 10.9 12.15 132 7500 35.5 792 27.94 70%
GWS HD 10x6 1 6.9 6.25 43 5370 30.5 389 13.72 79%
GWS HD 10x6 1 7.9 7.55 59 5970 33.9 475 16.76 77%
GWS HD 10x6 1 8.9 9 80 6480 36.8 585 20.64 74%
GWS HD 10x6 1 9.9 10.5 103 7050 40.1 680 23.99 72%
GWS HD 10x6 1 10.9 12.15 132 7470 42.4 780 27.51 70%
APC E 10x7 1 6.9 8 55 5040 33.4 378 13.33 74%
APC E 10x7 1 7.9 9.4 74 5550 36.8 460 16.23 71%
APC E 10x7 1 8.9 10.85 96 6030 40.0 550 19.40 69%
APC E 10x7 1 9.9 12.4 122 6540 43.4 654 23.07 67%
APC E 10x7 1 10.9 14 152 6990 46.3 750 26.46 65%
GWS HD 10x8 1 6.9 8.95 61 4680 35.5 381 13.44 69%
GWS HD 10x8 1 7.9 10.7 84 5160 39.1 460 16.23 66%
GWS HD 10x8 1 8.9 12.55 111 5550 42.0 540 19.05 63%
GWS HD 10x8 1 9.9 14.5 143 5940 45.0 620 21.87 61%
GWS HD 10x8 1 10.9 16.3 177 6240 47.3 696 24.55 58%
APC E 11x5.5 1 6.9 7.65 52 5010 26.1 469 16.54 74%
APC E 11x5.5 1 7.9 9.25 73 5520 28.8 567 20.00 71%
APC E 11x5.5 1 8.9 10.85 96 5970 31.1 678 23.92 68%
APC E 11x5.5 1 9.9 12.75 126 6420 33.4 796 28.08 66%
APC E 11x5.5 1 10.9 14.65 159 6750 35.2 921 32.49 63%
