XMotor - 2826CA-18T



Specifications

  • Type: Outrunner
  • Weight: 44.00g (1.55oz)
  • Diameter: 28.00mm (1.10in)
  • Length: 26.00mm (1.02in)
  • Maximum Amps: 14

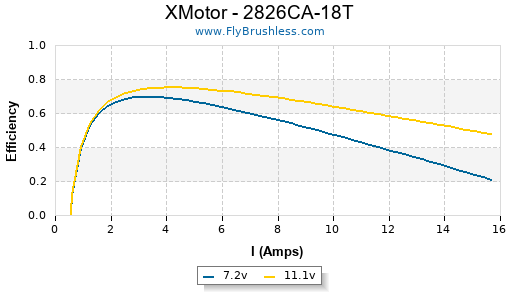

Constants

  • kV: 1030
  • Rm: 0.36
  • Io: 0.55



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 0.4 7080
8 0.45 8070
10 0.55 10170

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 8x4 1 7 2.9 20 6270 23.8 201 7.09 87%
GWS HD 8x4 1 7.9 3.5 27 7020 26.6 255 8.99 86%
GWS HD 8x4 1 8.9 4.2 37 7710 29.2 314 11.08 84%
GWS HD 8x4 1 9.9 5 49 8430 31.9 382 13.47 83%
GWS HD 8x4 1 10.9 5.85 63 9120 34.5 450 15.87 81%
GWS HD 9x5 1 6.9 4.8 33 5640 26.7 314 11.08 79%
GWS HD 9x5 1 7.9 5.7 45 6240 29.6 384 13.55 77%
GWS HD 9x5 1 8.9 6.8 60 6810 32.2 468 16.51 74%
GWS HD 9x5 1 9.9 7.9 78 7380 34.9 544 19.19 72%
GWS HD 10x6 1 6.9 6 41 5190 29.5 369 13.02 73%
GWS HD 10x6 1 7.9 7.2 56 5730 32.6 450 15.87 70%
GWS HD 10x6 1 8.9 8.4 74 6210 35.3 531 18.73 68%
GWS HD 10x6 1 9.8 9.6 94 6630 37.7 605 21.34 66%
GWS HD 10x6 1 10.8 10.9 117 7020 39.9 680 23.99 63%
GWS HD 11x7 1 6.9 8.2 56 4500 29.8 453 15.98 63%
GWS HD 11x7 1 7.8 9.65 75 4860 32.2 536 18.91 60%
GWS HD 11x7 1 8.8 11 96 5130 34.0 608 21.45 57%
GWS HD 11x7 1 9.8 12.3 120 5460 36.2 676 23.85 54%
GWS HD 11x7 1 10.7 13.6 145 5730 38.0 735 25.93 52%
