Suppo - A2212-6 Blue DS



Specifications

  • Type: Outrunner
  • Weight: 56.00g (1.98oz)
  • Diameter: 27.80mm (1.09in)
  • Length: 24.60mm (0.97in)
  • Shaft Diameter: 3.17mm (0.12in)
  • Maximum Amps: 28

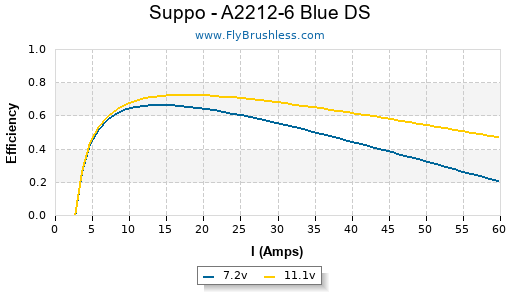

Constants

  • kV: 2175
  • Rm: 0.095
  • Io: 2.6



Io Test Data

Dr Kiwi test results
Volts Amps RPM
10.015 2.6 21210

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
Graupner 5x5 1 6.9 10.3 71 13200 62.5 246 8.68 88%
Graupner 5x5 1 7.9 12.5 98 14730 69.7 311 10.97 86%
Graupner 5x5 1 8.9 14.9 132 16200 76.7 375 13.23 84%
Graupner 5x5 1 9.8 17.55 171 17610 83.4 445 15.70 83%
Graupner 5x5 1 10.8 20.3 219 18930 89.6 515 18.17 81%
Zagi Carbon 5.1x4.9 1 6.8 8.95 60 13380 62.1 256 9.03 90%
Zagi Carbon 5.1x4.9 1 6.9 8.8 60 13290 61.7 251 8.85 89%
Zagi Carbon 5.1x4.9 1 7.8 10.8 84 14850 68.9 317 11.18 88%
Zagi Carbon 5.1x4.9 1 7.8 10.95 85 15030 69.7 327 11.53 89%
Zagi Carbon 5.1x4.9 1 8.8 12.95 113 16440 76.3 389 13.72 86%
Zagi Carbon 5.1x4.9 1 8.8 13.05 114 16680 77.4 401 14.14 87%
Zagi Carbon 5.1x4.9 1 9.8 15.35 150 18150 84.2 481 16.97 85%
Zagi Carbon 5.1x4.9 1 9.8 15.3 149 18000 83.5 467 16.47 84%
Zagi Carbon 5.1x4.9 1 10.7 17.9 191 19440 90.2 551 19.44 84%
Zagi Carbon 5.1x4.9 1 10.8 17.8 192 19570 90.8 565 19.93 83%
APC E 5.5x4.5 1 6.8 10.5 71 13110 55.9 253 8.92 89%
APC E 5.5x4.5 1 6.9 10.2 70 12960 55.2 248 8.75 86%
APC E 5.5x4.5 1 7.8 12.75 99 14700 62.6 321 11.32 87%
APC E 5.5x4.5 1 7.8 12.2 95 14580 62.1 322 11.36 86%
APC E 5.5x4.5 1 8.8 14.6 128 16080 68.5 402 14.18 84%
APC E 5.5x4.5 1 8.8 15 132 16170 68.9 398 14.04 84%
APC E 5.5x4.5 1 9.8 17.6 172 17640 75.2 483 17.04 83%
APC E 5.5x4.5 1 9.8 17.75 173 17610 75.0 481 16.97 83%
APC E 5.5x4.5 1 10.8 20 216 19020 81.0 564 19.89 81%
APC E 5.5x4.5 1 10.8 20 216 18870 80.4 560 19.75 80%
APC E 6x4 1 6.9 10.3 71 12930 49.0 331 11.68 86%
APC E 6x4 1 7.8 12.7 99 14520 55.0 423 14.92 86%
APC E 6x4 1 8.8 15.6 137 16020 60.7 531 18.73 84%
APC E 6x4 1 8.8 1515 13332 15990 60.6 526 18.55 84%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC E 6x4 1 9.7 18.2 176 17430 66.0 633 22.33 83%
APC E 6x4 1 9.7 17.9 173 17430 66.0 633 22.33 83%
APC E 6x4 1 10.7 20.9 223 18780 71.1 736 25.96 81%
APC E 6x4 1 10.7 21.1 225 18780 71.1 740 26.10 81%
