Grayson - Mega Jet 18


Grayson - Mega Jet 18

Specifications

  • Type: Outrunner
  • Weight: 61.00g (2.15oz)
  • Maximum Amps: 25

Constants

  • kV: 1820
  • Rm: 0.1
  • Io: 1.8



Io Test Data

Dr Kiwi test results
Volts Amps RPM
10 1.8 17850

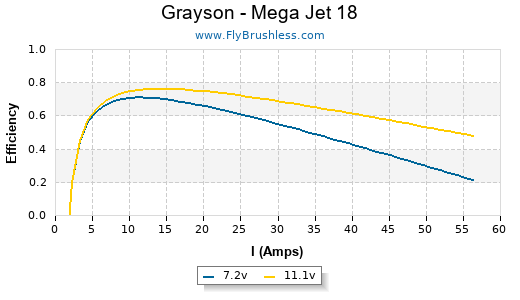

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
Zagi Carbon 5.1x4.9 1 6.9 5.8 40 11730 54.4 196 6.91 93%
Zagi Carbon 5.1x4.9 1 7.9 7.15 56 13230 61.4 252 8.89 92%
Zagi Carbon 5.1x4.9 1 8.8 8.5 74 14670 68.1 310 10.93 92%
Zagi Carbon 5.1x4.9 1 9.9 10.2 100 16170 75.0 380 13.40 90%
Zagi Carbon 5.1x4.9 1 10.8 11.8 127 17730 82.3 448 15.80 90%
APC E 6x4 1 6.9 7 48 11580 43.9 258 9.10 92%
APC E 6x4 1 7.9 8.55 67 12990 49.2 327 11.53 90%
APC E 6x4 1 8.9 10.4 92 14400 54.5 411 14.50 89%
APC E 6x4 1 9.8 12.25 120 15690 59.4 497 17.53 88%
APC E 6x4 1 10.8 14.3 154 17070 64.7 598 21.09 87%
APC E 6x5.5 1 6.8 9.8 66 11010 57.3 270 9.52 89%
APC E 6x5.5 1 7.8 11.9 92 12420 64.7 348 12.28 87%
APC E 6x5.5 1 8.8 13.85 121 13710 71.4 431 15.20 86%
APC E 6x5.5 1 9.8 16.15 158 15030 78.3 519 18.31 84%
APC E 6x5.5 1 10.8 18.5 199 16260 84.7 615 21.69 83%
Graupner CAM Speed 6x6 1 6.9 9.6 66 11070 62.9 266 9.38 88%
Graupner CAM Speed 6x6 1 7.8 11.75 91 12420 70.6 335 11.82 87%
Graupner CAM Speed 6x6 1 8.8 14.1 124 13750 78.1 411 14.50 86%
Graupner CAM Speed 6x6 1 9.7 16.4 159 14940 84.9 486 17.14 85%
Graupner CAM Speed 6x6 1 10.7 18.9 202 16110 91.5 569 20.07 83%
GWS HD 7x3.5 1 6.9 6.8 46 11610 38.5 317 11.18 92%
GWS HD 7x3.5 1 7.8 8.45 65 13050 43.2 411 14.50 92%
GWS HD 7x3.5 1 8.8 10.2 89 14430 47.8 511 18.02 90%
GWS HD 7x3.5 1 9.8 12.3 120 15780 52.3 629 22.19 88%
GWS HD 7x3.5 1 10.8 14.55 157 0 0.0 730 25.75 0%
APC E 7x5 1 6.8 13.3 90 10320 48.9 500 17.64 83%
APC E 7x5 1 7.8 16.8 131 11460 54.3 610 21.52 81%
APC E 7x5 1 8.7 19.9 173 12570 59.5 761 26.84 79%
