LightFlightRC - 28-37-3 Silver #2
Specifications
- Type: Inrunner
- Weight: 76.00g (2.68oz)
- Diameter: 28.00mm (1.10in)
- Length: 37.15mm (1.46in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 25
Constants
- kV: 2750
- Rm: 0.122
- Io: 0.9
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 10.02 | 0.9 | 27330 |

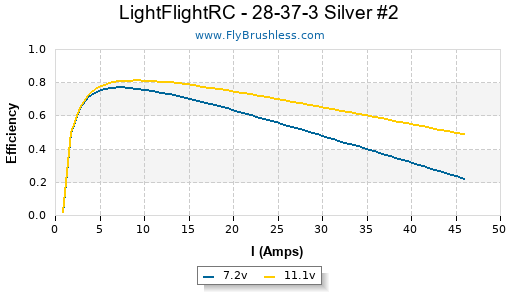

Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 4.1x4.1 | 1 | 6.9 | 7 | 48 | 17100 | 66.4 | 167 | 5.89 | 90% |
| APC E 4.1x4.1 | 1 | 7.9 | 8.65 | 68 | 19080 | 74.1 | 209 | 7.37 | 88% |
| APC E 4.1x4.1 | 1 | 8.8 | 10.45 | 91 | 21030 | 81.7 | 255 | 8.99 | 87% |
| APC E 4.1x4.1 | 1 | 9.8 | 12.4 | 121 | 23040 | 89.5 | 307 | 10.83 | 85% |
| APC E 4.1x4.1 | 1 | 10.8 | 14.5 | 156 | 24900 | 96.7 | 359 | 12.66 | 84% |
| Zagi Carbon 5.1x4.9 | 1 | 6.9 | 12.1 | 83 | 15270 | 70.9 | 341 | 12.03 | 80% |
| Zagi Carbon 5.1x4.9 | 1 | 7.9 | 14.9 | 117 | 16890 | 78.4 | 425 | 14.99 | 78% |
| Zagi Carbon 5.1x4.9 | 1 | 8.8 | 17.7 | 155 | 18330 | 85.0 | 503 | 17.74 | 76% |
| Zagi Carbon 5.1x4.9 | 1 | 9.8 | 20.5 | 200 | 19830 | 92.0 | 591 | 20.85 | 74% |
