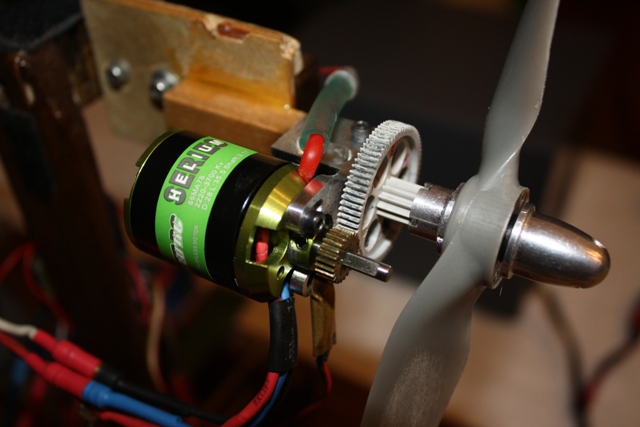

Exceed - Helium 2220-3700
Specifications
- Type: Outrunner
- Weight: 76.00g (2.68oz)
- Diameter: 28.00mm (1.10in)
- Length: 41.75mm (1.64in)
- Shaft Diameter: 3.20mm (0.13in)
- Maximum Amps: 35
Constants
- kV: 4175
- Rm: 0.046
- Io: 3.7
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 3.25 | 28680 |
| 8 | 3.3 | 32900 |
| 10 | 3.7 | 41100 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| EMP 6x5 | 3.17 | 6.8 | 6.4 | 43 | 8610 | 40.8 | 172 | 6.07 | 96% |
| EMP 6x5 | 3.17 | 7.8 | 7.65 | 59 | 9720 | 46.0 | 229 | 8.08 | 95% |
| EMP 6x5 | 3.17 | 8.8 | 8.15 | 71 | 10950 | 51.8 | 290 | 10.23 | 94% |
| EMP 6x5 | 3.17 | 9.8 | 9.4 | 92 | 12180 | 57.7 | 353 | 12.45 | 94% |
| EMP 6x5 | 3.17 | 10.8 | 11.3 | 122 | 13290 | 62.9 | 422 | 14.89 | 93% |
| APC E 7x5 | 3.17 | 6.9 | 9.45 | 65 | 8550 | 40.5 | 318 | 11.22 | 94% |
| APC E 7x5 | 3.17 | 7.8 | 11.6 | 90 | 9540 | 45.2 | 404 | 14.25 | 93% |
| APC E 7x5 | 3.17 | 8.8 | 13.6 | 119 | 10710 | 50.7 | 516 | 18.20 | 92% |
| APC E 7x5 | 3.17 | 9.7 | 16 | 155 | 11760 | 55.7 | 631 | 22.26 | 92% |
| APC E 7x5 | 3.17 | 10.7 | 18.8 | 201 | 12840 | 60.8 | 750 | 26.46 | 91% |
| APC E 8x4 | 3.17 | 6.8 | 11 | 74 | 8250 | 31.2 | 429 | 15.13 | 92% |
| APC E 8x4 | 3.17 | 7.7 | 14.3 | 110 | 9300 | 35.2 | 562 | 19.82 | 92% |
| APC E 8x4 | 3.17 | 8.7 | 16.5 | 143 | 10410 | 39.4 | 710 | 25.04 | 91% |
| APC E 8x4 | 3.17 | 9.6 | 19.6 | 188 | 11430 | 43.3 | 861 | 30.37 | 90% |
| APC E 8x4 | 3.17 | 10.6 | 23.1 | 244 | 12420 | 47.0 | 1050 | 37.04 | 89% |
| APC E 9x4.5 | 3.17 | 7.9 | 18.9 | 149 | 9060 | 38.6 | 795 | 28.04 | 87% |
| APC E 9x4.5 | 3.17 | 11 | 33.9 | 372 | 12060 | 51.4 | 1500 | 52.91 | 83% |
