Komodo - KH2208-8
Specifications
- Type: Outrunner
- Weight: 41.00g (1.45oz)
- Diameter: 27.82mm (1.10in)
- Length: 21.43mm (0.84in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 15

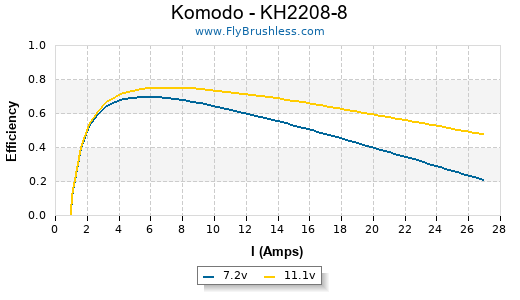

Constants
- kV: 1125
- Rm: 0.21
- Io: 0.95
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.8 | 7660 |
| 8 | 0.85 | 8740 |
| 10 | 0.95 | 10930 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| Zagi Carbon 5.1x4.9 | 1 | 11 | 3.5 | 38 | 11430 | 53.0 | 186 | 6.56 | 92% |
| Zagi Carbon 5.1x4.9 | 1 | 14.7 | 5.45 | 80 | 14940 | 69.3 | 322 | 11.36 | 90% |
| MAS 3-blade 6x4 | 1 | 7 | 2.8 | 19 | 7260 | 27.5 | 104 | 3.67 | 92% |
| MAS 3-blade 6x4 | 1 | 7.9 | 3.4 | 26 | 8140 | 30.8 | 132 | 4.66 | 92% |
| MAS 3-blade 6x4 | 1 | 8.9 | 4.05 | 36 | 9060 | 34.3 | 168 | 5.93 | 90% |
| MAS 3-blade 6x4 | 1 | 9.9 | 4.8 | 47 | 10000 | 37.9 | 208 | 7.34 | 90% |
| MAS 3-blade 6x4 | 1 | 10.9 | 5.5 | 59 | 10880 | 41.2 | 247 | 8.71 | 89% |
| MAS 3-blade 6x4 | 1 | 14.6 | 8.5 | 124 | 14040 | 53.2 | 436 | 15.38 | 85% |
| APC E 6x5.5 | 1 | 10.9 | 6.05 | 65 | 10770 | 56.1 | 264 | 9.31 | 88% |
| APC E 6x5.5 | 1 | 14.6 | 9.1 | 132 | 13890 | 72.3 | 454 | 16.01 | 85% |
| GWS HD 7x3.5 | 1 | 7 | 2.2 | 15 | 7380 | 24.5 | 121 | 4.27 | 94% |
| GWS HD 7x3.5 | 1 | 8 | 2.6 | 20 | 8310 | 27.5 | 154 | 5.43 | 92% |
| GWS HD 7x3.5 | 1 | 9 | 3.1 | 27 | 9330 | 30.9 | 206 | 7.27 | 92% |
| GWS HD 7x3.5 | 1 | 10 | 3.65 | 36 | 10290 | 34.1 | 252 | 8.89 | 91% |
| GWS HD 7x3.5 | 1 | 10.9 | 4.2 | 45 | 11220 | 37.2 | 302 | 10.65 | 91% |
| APC SF 7x4 | 1 | 6.9 | 3.3 | 22 | 7110 | 26.9 | 196 | 6.91 | 92% |
| APC SF 7x4 | 1 | 7.9 | 4.1 | 32 | 7980 | 30.2 | 253 | 8.92 | 90% |
| APC SF 7x4 | 1 | 8.9 | 5.05 | 44 | 8850 | 33.5 | 319 | 11.25 | 88% |
| APC SF 7x4 | 1 | 9.9 | 6 | 59 | 9690 | 36.7 | 382 | 13.47 | 87% |
| APC SF 7x4 | 1 | 10.9 | 7 | 76 | 10470 | 39.7 | 454 | 16.01 | 85% |
| MAS 3-blade 7x4 | 1 | 7 | 4.15 | 29 | 6960 | 26.4 | 167 | 5.89 | 88% |
| MAS 3-blade 7x4 | 1 | 7.9 | 5 | 39 | 7800 | 29.6 | 219 | 7.72 | 88% |
| MAS 3-blade 7x4 | 1 | 8.9 | 5.95 | 52 | 8620 | 32.6 | 276 | 9.74 | 86% |
| MAS 3-blade 7x4 | 1 | 9.9 | 6.95 | 68 | 9500 | 36.0 | 354 | 12.49 | 85% |
| MAS 3-blade 7x4 | 1 | 10.9 | 8 | 87 | 10280 | 38.9 | 427 | 15.06 | 84% |
| MAS 3-blade 7x4 | 1 | 14.6 | 12.2 | 178 | 13020 | 49.3 | 736 | 25.96 | 79% |
| APC E 7x5 | 1 | 6.9 | 4.1 | 28 | 6900 | 32.7 | 210 | 7.41 | 89% |
| APC E 7x5 | 1 | 7.9 | 5 | 39 | 7770 | 36.8 | 267 | 9.42 | 87% |
| APC E 7x5 | 1 | 8.9 | 6 | 53 | 8640 | 40.9 | 340 | 11.99 | 86% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| APC E 7x5 | 1 | 9.9 | 7 | 69 | 9450 | 44.7 | 410 | 14.46 | 85% |
| APC E 7x5 | 1 | 10.9 | 8.1 | 88 | 10200 | 48.3 | 488 | 17.21 | 83% |
| APC E 7x5 | 1 | 14.6 | 12.85 | 187 | 12840 | 60.8 | 795 | 28.04 | 78% |
| MAS 7x5.5 | 1 | 6.9 | 5.5 | 37 | 6660 | 34.7 | 210 | 7.41 | 86% |
| MAS 7x5.5 | 1 | 7.9 | 6.7 | 52 | 7440 | 38.8 | 268 | 9.45 | 84% |
| MAS 7x5.5 | 1 | 8.9 | 8.05 | 71 | 8190 | 42.7 | 326 | 11.50 | 82% |
| MAS 7x5.5 | 1 | 9.9 | 9.25 | 91 | 8880 | 46.2 | 387 | 13.65 | 80% |
| MAS 7x5.5 | 1 | 10.9 | 10.6 | 115 | 9570 | 49.8 | 453 | 15.98 | 78% |
| APC SF 7x6 | 1 | 6.9 | 4.9 | 33 | 6780 | 38.5 | 223 | 7.87 | 87% |
| APC SF 7x6 | 1 | 7.9 | 6 | 47 | 7590 | 43.1 | 276 | 9.74 | 85% |
| APC SF 7x6 | 1 | 8.9 | 7.3 | 64 | 8310 | 47.2 | 340 | 11.99 | 83% |
| APC SF 7x6 | 1 | 9.9 | 8.7 | 86 | 9030 | 51.3 | 404 | 14.25 | 81% |
| APC SF 7x6 | 1 | 10.9 | 10.1 | 110 | 9690 | 55.1 | 469 | 16.54 | 79% |
| APC Sport 7x6 | 1 | 6.9 | 4.35 | 30 | 6870 | 39.0 | 172 | 6.07 | 89% |
| APC Sport 7x6 | 1 | 7.9 | 5.3 | 41 | 7740 | 44.0 | 220 | 7.76 | 87% |
| APC Sport 7x6 | 1 | 8.9 | 6.25 | 55 | 8610 | 48.9 | 272 | 9.59 | 86% |
| APC Sport 7x6 | 1 | 9.9 | 7.35 | 72 | 9390 | 53.4 | 330 | 11.64 | 84% |
| APC Sport 7x6 | 1 | 10.9 | 8.4 | 91 | 10110 | 57.4 | 393 | 13.86 | 82% |
| APC Sport 7x6 | 1 | 14.6 | 12.4 | 181 | 12960 | 73.6 | 700 | 24.69 | 79% |
| APC Sport 7x7 | 1 | 7 | 4.65 | 32 | 6840 | 45.3 | 202 | 7.13 | 87% |
| APC Sport 7x7 | 1 | 7.9 | 5.6 | 44 | 7650 | 50.7 | 253 | 8.92 | 86% |
| APC Sport 7x7 | 1 | 8.9 | 6.6 | 58 | 8460 | 56.1 | 309 | 10.90 | 84% |
| APC Sport 7x7 | 1 | 9.9 | 7.75 | 76 | 9240 | 61.2 | 374 | 13.19 | 83% |
| APC Sport 7x7 | 1 | 10.9 | 9.05 | 98 | 10020 | 66.4 | 448 | 15.80 | 82% |
| APC Sport 7x7 | 1 | 14.6 | 13.8 | 201 | 12540 | 83.1 | 804 | 28.36 | 76% |
| GWS HD 8x4 | 1 | 6.9 | 4 | 27 | 6900 | 26.1 | 257 | 9.07 | 89% |
| GWS HD 8x4 | 1 | 7.9 | 4.95 | 39 | 7830 | 29.7 | 327 | 11.53 | 88% |
| GWS HD 8x4 | 1 | 8.9 | 5.9 | 52 | 8610 | 32.6 | 403 | 14.22 | 86% |
| GWS HD 8x4 | 1 | 9.9 | 7 | 69 | 9450 | 35.8 | 489 | 17.25 | 85% |
| GWS HD 8x4 | 1 | 10.9 | 8.1 | 88 | 10230 | 38.8 | 574 | 20.25 | 83% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| MAS 8x4 | 1 | 6.9 | 6.2 | 42 | 6450 | 24.4 | 279 | 9.84 | 83% |
| MAS 8x4 | 1 | 7.9 | 7.5 | 59 | 7170 | 27.2 | 351 | 12.38 | 81% |
| MAS 8x4 | 1 | 8.9 | 8.85 | 78 | 7920 | 30.0 | 430 | 15.17 | 79% |
| MAS 8x4 | 1 | 9.9 | 10.2 | 100 | 8550 | 32.4 | 529 | 18.66 | 77% |
| MAS 8x4 | 1 | 10.9 | 11.8 | 128 | 9240 | 35.0 | 618 | 21.80 | 75% |
| MAS 8x5.5 | 1 | 6.9 | 7.05 | 48 | 6270 | 32.7 | 287 | 10.12 | 81% |
| MAS 8x5.5 | 1 | 7.9 | 8.5 | 67 | 6990 | 36.4 | 356 | 12.56 | 79% |
| MAS 8x5.5 | 1 | 8.9 | 10 | 89 | 7650 | 39.8 | 436 | 15.38 | 76% |
| MAS 8x5.5 | 1 | 9.9 | 11.65 | 115 | 8280 | 43.1 | 513 | 18.10 | 74% |
| MAS 8x5.5 | 1 | 10.9 | 13.25 | 144 | 8820 | 45.9 | 584 | 20.60 | 72% |
| GWS HD 8x6 | 1 | 6.9 | 6.3 | 43 | 6450 | 36.6 | 303 | 10.69 | 83% |
| GWS HD 8x6 | 1 | 7.9 | 7.7 | 60 | 7140 | 40.6 | 374 | 13.19 | 80% |
| GWS HD 8x6 | 1 | 8.9 | 9.2 | 81 | 7830 | 44.5 | 452 | 15.94 | 78% |
| GWS HD 8x6 | 1 | 9.9 | 10.8 | 106 | 8460 | 48.1 | 533 | 18.80 | 76% |
| GWS HD 8x6 | 1 | 10.9 | 12.5 | 136 | 9090 | 51.6 | 613 | 21.62 | 74% |
| Kavan 9x4 | 1 | 6.9 | 5.8 | 40 | 6510 | 24.7 | 337 | 11.89 | 84% |
| Kavan 9x4 | 1 | 7.9 | 7.1 | 56 | 7290 | 27.6 | 424 | 14.96 | 82% |
| Kavan 9x4 | 1 | 8.9 | 8.55 | 76 | 8040 | 30.4 | 521 | 18.38 | 80% |
| Kavan 9x4 | 1 | 9.9 | 10 | 99 | 8670 | 32.8 | 617 | 21.76 | 78% |
| Kavan 9x4 | 1 | 10.9 | 11.55 | 125 | 9270 | 35.1 | 724 | 25.54 | 76% |
| APC E 9x4.5 | 1 | 6.9 | 6.5 | 44 | 6420 | 27.4 | 389 | 13.72 | 83% |
| APC E 9x4.5 | 1 | 7.9 | 7.9 | 62 | 7140 | 30.4 | 485 | 17.11 | 80% |
| APC E 9x4.5 | 1 | 8.9 | 9.45 | 84 | 7800 | 33.2 | 587 | 20.71 | 78% |
| APC E 9x4.5 | 1 | 9.9 | 11.1 | 109 | 8430 | 35.9 | 695 | 24.52 | 76% |
| APC E 9x4.5 | 1 | 10.9 | 12.75 | 138 | 9000 | 38.4 | 804 | 28.36 | 73% |
| APC SF 9x4.7 | 1 | 6.9 | 7.35 | 50 | 6240 | 27.8 | 424 | 14.96 | 80% |
| APC SF 9x4.7 | 1 | 7.9 | 8.75 | 69 | 6900 | 30.7 | 514 | 18.13 | 78% |
| APC SF 9x4.7 | 1 | 8.9 | 10.3 | 91 | 7530 | 33.5 | 622 | 21.94 | 75% |
| APC SF 9x4.7 | 1 | 9.9 | 12 | 118 | 8160 | 36.3 | 728 | 25.68 | 73% |
| APC SF 9x4.7 | 1 | 10.9 | 13.5 | 147 | 8730 | 38.9 | 830 | 29.28 | 71% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 9x5 | 1 | 6.9 | 6.75 | 46 | 6330 | 30.0 | 401 | 14.14 | 82% |
| GWS HD 9x5 | 1 | 7.9 | 8.2 | 64 | 7020 | 33.2 | 498 | 17.57 | 79% |
| GWS HD 9x5 | 1 | 8.9 | 9.8 | 87 | 7710 | 36.5 | 606 | 21.38 | 77% |
| GWS HD 9x5 | 1 | 9.9 | 11.4 | 112 | 8310 | 39.4 | 705 | 24.87 | 75% |
Comments
Dr Kiwi on 2011-05-12 07:31:38
Overall length (= shaft length) = 44.87mm
