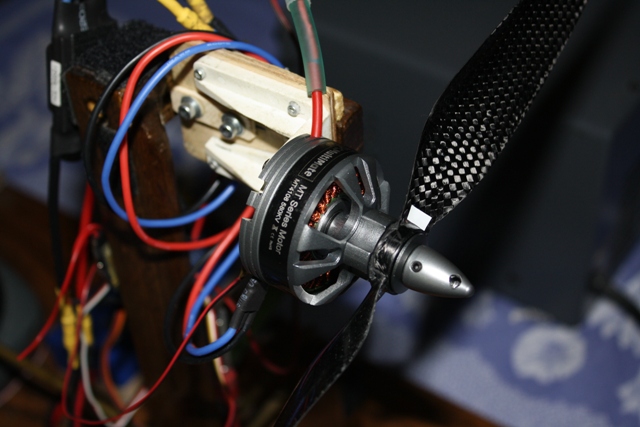

iFlight iPower - Multimate MT4108-580
Specifications
- Type: Outrunner
- Weight: 116.00g (4.09oz)
- Diameter: 41.00mm (1.61in)
- Length: 27.50mm (1.08in)
- Shaft Diameter: 4.00mm (0.16in)
- Maximum Amps: 25

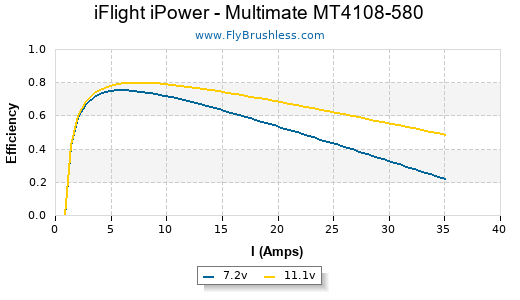

Constants
- kV: 588
- Rm: 0.16
- Io: 0.8
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.7 | 4045 |
| 8 | 0.75 | 4625 |
| 10 | 0.8 | 5787 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 9x5 | 1 | 10.9 | 3.65 | 39 | 6000 | 28.4 | 341 | 12.03 | 94% |
| GWS HD 11x7 | 1 | 10.8 | 7.4 | 79 | 5520 | 36.6 | 660 | 23.28 | 87% |
| GWS HD 12x6 | 1 | 10.8 | 8 | 86 | 5430 | 30.9 | 722 | 25.47 | 86% |
| GWS HD 12x6 | 1 | 14.3 | 12.4 | 177 | 6870 | 39.0 | 1190 | 41.98 | 82% |
| APC E 13x6.5 | 1 | 10.7 | 10.5 | 112 | 5100 | 31.4 | 892 | 31.46 | 81% |
| APC E 13x6.5 | 1 | 14.3 | 16.45 | 235 | 6330 | 39.0 | 1430 | 50.44 | 75% |
| iFlight CF 13x6.5 | 1 | 10.7 | 12.55 | 134 | 4830 | 29.7 | 1002 | 35.34 | 77% |
| iFlight CF 13x6.5 | 1 | 14.2 | 19.1 | 271 | 5940 | 36.6 | 1565 | 55.20 | 71% |
| APC E 14x8.5 | 1 | 10.7 | 15.1 | 161 | 4680 | 37.7 | 1180 | 41.62 | 74% |
| APC E 14x8.5 | 1 | 14.1 | 22.4 | 315 | 5580 | 44.9 | 1540 | 54.32 | 67% |
Comments
Dr Kiwi on 2014-01-16 10:06:54
This is a 24-arm, 22-pole motor
