iFlight iPower - Multimate MT2208-1400
Specifications
- Type: Outrunner
- Weight: 56.00g (1.98oz)
- Diameter: 27.80mm (1.09in)
- Length: 23.40mm (0.92in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 14

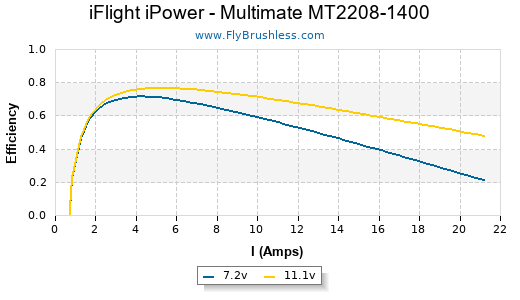

Constants
- kV: 1428
- Rm: 0.266
- Io: 0.65
Io Test Data
Dr Kiwi test results
Volts | Amps | RPM |
---|---|---|
7 | 0.55 | 9770 |
8 | 0.6 | 10900 |
10 | 0.65 | 13870 |
Test Data
Dr Kiwi test results
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
---|---|---|---|---|---|---|---|---|---|
EMP 4.1x4.1 | 1 | 6.9 | 1.7 | 11 | 9390 | 36.5 | 56 | 1.98 | 95% |
EMP 4.1x4.1 | 1 | 7.9 | 2 | 15 | 10590 | 41.1 | 72 | 2.54 | 94% |
EMP 4.1x4.1 | 1 | 8.9 | 2.35 | 20 | 11700 | 45.4 | 88 | 3.10 | 92% |
EMP 4.1x4.1 | 1 | 9.9 | 2.75 | 27 | 12930 | 50.2 | 108 | 3.81 | 91% |
EMP 4.1x4.1 | 1 | 10.9 | 3.15 | 34 | 14130 | 54.9 | 129 | 4.55 | 91% |
Zagi Carbon 5.1x4.9 | 1 | 6.9 | 1.95 | 13 | 9120 | 42.3 | 97 | 3.42 | 93% |
Zagi Carbon 5.1x4.9 | 1 | 7.9 | 2.45 | 19 | 10380 | 48.2 | 126 | 4.44 | 92% |
Zagi Carbon 5.1x4.9 | 1 | 8.8 | 2.95 | 25 | 11580 | 53.7 | 160 | 5.64 | 92% |
Zagi Carbon 5.1x4.9 | 1 | 9.8 | 3.4 | 33 | 12660 | 58.7 | 187 | 6.60 | 90% |
Zagi Carbon 5.1x4.9 | 1 | 10.8 | 4 | 43 | 13800 | 64.0 | 224 | 7.90 | 89% |
Zagi Carbon 5.1x4.9 | 1 | 14 | 6.35 | 88 | 17250 | 80.0 | 364 | 12.84 | 86% |
EMP 6x4 | 1 | 6.9 | 2.75 | 18 | 8760 | 33.2 | 135 | 4.76 | 89% |
EMP 6x4 | 1 | 7.9 | 3.5 | 27 | 9960 | 37.7 | 178 | 6.28 | 88% |
EMP 6x4 | 1 | 8.8 | 4.15 | 36 | 11010 | 41.7 | 225 | 7.94 | 88% |
EMP 6x4 | 1 | 9.8 | 4.9 | 48 | 12030 | 45.6 | 279 | 9.84 | 86% |
EMP 6x4 | 1 | 10.8 | 5.7 | 61 | 13080 | 49.5 | 333 | 11.75 | 85% |
EMP 6x4 | 1 | 14 | 8.8 | 123 | 16350 | 61.9 | 550 | 19.40 | 82% |
EMP 6x5 | 1 | 6.9 | 3.35 | 23 | 8580 | 40.6 | 174 | 6.14 | 87% |
EMP 6x5 | 1 | 7.9 | 4.2 | 33 | 9720 | 46.0 | 225 | 7.94 | 86% |
EMP 6x5 | 1 | 8.8 | 5 | 44 | 10740 | 50.9 | 275 | 9.70 | 85% |
EMP 6x5 | 1 | 9.8 | 5.9 | 57 | 11700 | 55.4 | 328 | 11.57 | 84% |
EMP 6x5 | 1 | 10.8 | 6.8 | 73 | 12660 | 59.9 | 384 | 13.55 | 82% |
EMP 6x5 | 1 | 14 | 10.5 | 147 | 15690 | 74.3 | 598 | 21.09 | 78% |
APC E 7x5 | 1 | 6.8 | 5.7 | 38 | 7710 | 36.5 | 254 | 8.96 | 79% |
APC E 7x5 | 1 | 7.8 | 6.95 | 54 | 8550 | 40.5 | 313 | 11.04 | 77% |
APC E 7x5 | 1 | 8.7 | 8.4 | 73 | 9420 | 44.6 | 389 | 13.72 | 76% |
APC E 7x5 | 1 | 9.7 | 9.8 | 95 | 10170 | 48.2 | 458 | 16.16 | 73% |
APC E 7x5 | 1 | 10.7 | 11.2 | 119 | 10860 | 51.4 | 530 | 18.70 | 71% |
APC E 7x5 | 1 | 14 | 16.85 | 235 | 12900 | 61.1 | 780 | 27.51 | 65% |
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
GWS HD 8x4 | 1 | 6.8 | 5.65 | 38 | 7740 | 29.3 | 312 | 11.01 | 80% |
GWS HD 8x4 | 1 | 7.8 | 6.75 | 52 | 8550 | 32.4 | 386 | 13.62 | 77% |
GWS HD 8x4 | 1 | 8.7 | 8.25 | 71 | 9420 | 35.7 | 475 | 16.76 | 76% |
GWS HD 8x4 | 1 | 9.7 | 9.65 | 93 | 10200 | 38.6 | 562 | 19.82 | 74% |
GWS HD 8x4 | 1 | 10.6 | 11.1 | 117 | 10890 | 41.2 | 643 | 22.68 | 72% |
APC E 8x4 | 1 | 6.8 | 6.65 | 45 | 7290 | 27.6 | 335 | 11.82 | 75% |
APC E 8x4 | 1 | 7.7 | 8.1 | 62 | 8040 | 30.5 | 416 | 14.67 | 73% |
APC E 8x4 | 1 | 8.7 | 9.6 | 83 | 8820 | 33.4 | 493 | 17.39 | 71% |
APC E 8x4 | 1 | 9.7 | 11.45 | 111 | 9510 | 36.0 | 592 | 20.88 | 69% |
APC E 8x4 | 1 | 10.6 | 12.8 | 135 | 10080 | 38.2 | 659 | 23.25 | 67% |
APC E 8x6 | 1 | 6.8 | 9.05 | 61 | 6450 | 36.6 | 307 | 10.83 | 66% |
APC E 8x6 | 1 | 7.8 | 11.1 | 86 | 7080 | 40.2 | 380 | 13.40 | 64% |
APC E 8x6 | 1 | 8.7 | 12.8 | 111 | 7590 | 43.1 | 444 | 15.66 | 61% |
APC E 8x6 | 1 | 9.7 | 14.6 | 141 | 8100 | 46.0 | 517 | 18.24 | 58% |
APC E 8x6 | 1 | 10.7 | 16.4 | 175 | 8490 | 48.2 | 565 | 19.93 | 56% |
GWS HD 9x5 | 1 | 6.8 | 8.7 | 59 | 6720 | 31.8 | 437 | 15.41 | 69% |
GWS HD 9x5 | 1 | 7.8 | 10.3 | 80 | 7320 | 34.7 | 528 | 18.62 | 66% |
GWS HD 9x5 | 1 | 8.7 | 12 | 104 | 7950 | 37.6 | 612 | 21.59 | 64% |
GWS HD 9x5 | 1 | 9.7 | 13.8 | 133 | 8430 | 39.9 | 694 | 24.48 | 61% |
GWS HD 9x5 | 1 | 10.6 | 15.6 | 165 | 8820 | 41.8 | 782 | 27.58 | 58% |
Comments
Dr Kiwi on 2013-09-05 14:39:09

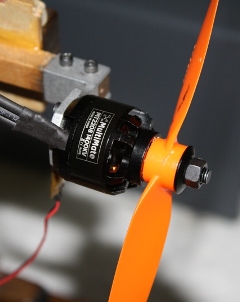

These motors have no exposed shaft (3.17mm), so a radial adapter (supplied) must be fitted... the diameter of the threaded radial adapter prop shaft is 5mm.
