Leopard - LC2835-8T
Specifications
- Type: Outrunner
- Weight: 72.00g (2.54oz)
- Diameter: 27.80mm (1.09in)
- Length: 34.35mm (1.35in)
- Shaft Diameter: 3.98mm (0.16in)
- Maximum Amps: 25

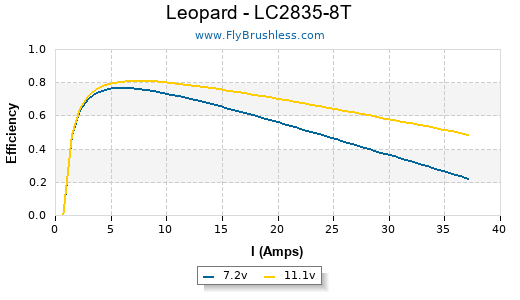

Constants
- kV: 1040
- Rm: 0.151
- Io: 0.75
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.65 | 7160 |
| 8 | 0.7 | 8175 |
| 10 | 0.75 | 10150 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 8x4 | 1 | 6.9 | 3.45 | 23 | 6630 | 25.1 | 230 | 8.11 | 92% |
| GWS HD 8x4 | 1 | 7.9 | 4.3 | 33 | 7530 | 28.5 | 298 | 10.51 | 92% |
| GWS HD 8x4 | 1 | 8.9 | 5.1 | 45 | 8340 | 31.6 | 370 | 13.05 | 90% |
| GWS HD 8x4 | 1 | 9.9 | 6.15 | 60 | 9240 | 35.0 | 457 | 16.12 | 90% |
| GWS HD 8x4 | 1 | 10.8 | 7.15 | 77 | 10020 | 38.0 | 542 | 19.12 | 89% |
| GWS HD 8x6 | 1 | 6.9 | 5.55 | 38 | 6300 | 35.8 | 283 | 9.98 | 88% |
| GWS HD 8x6 | 1 | 7.9 | 7 | 55 | 7080 | 40.2 | 362 | 12.77 | 86% |
| GWS HD 8x6 | 1 | 8.8 | 8.3 | 73 | 7830 | 44.5 | 437 | 15.41 | 86% |
| GWS HD 8x6 | 1 | 9.8 | 9.85 | 96 | 8550 | 48.6 | 519 | 18.31 | 84% |
| GWS HD 8x6 | 1 | 10.7 | 11.5 | 123 | 9240 | 52.5 | 612 | 21.59 | 83% |
| GWS HD 9x5 | 1 | 6.8 | 5.95 | 40 | 6210 | 29.4 | 377 | 13.30 | 88% |
| GWS HD 9x5 | 1 | 7.8 | 7.4 | 57 | 7020 | 33.2 | 485 | 17.11 | 87% |
| GWS HD 9x5 | 1 | 8.8 | 8.9 | 78 | 7740 | 36.6 | 599 | 21.13 | 85% |
| GWS HD 9x5 | 1 | 9.7 | 10.45 | 101 | 8430 | 39.9 | 714 | 25.19 | 84% |
| GWS HD 9x5 | 1 | 10.8 | 12.25 | 132 | 9150 | 43.3 | 838 | 29.56 | 81% |
| GWS HD 9x5 | 1 | 14 | 18.4 | 257 | 11130 | 52.7 | 1244 | 43.88 | 76% |
| APC SF 10x4.7 | 1 | 6.8 | 10.25 | 69 | 5610 | 25.0 | 569 | 20.07 | 79% |
| APC SF 10x4.7 | 1 | 7.7 | 12.6 | 97 | 6150 | 27.4 | 670 | 23.63 | 77% |
| APC SF 10x4.7 | 1 | 8.7 | 15.05 | 130 | 6690 | 29.8 | 841 | 29.67 | 74% |
| APC SF 10x4.7 | 1 | 9.6 | 17.4 | 167 | 7170 | 31.9 | 950 | 33.51 | 72% |
| APC SF 10x4.7 | 1 | 10.6 | 19.8 | 209 | 7590 | 33.8 | 1096 | 38.66 | 69% |
| GWS HD 10x6 | 1 | 6.8 | 7.95 | 54 | 5970 | 33.9 | 478 | 16.86 | 84% |
| GWS HD 10x6 | 1 | 7.8 | 9.75 | 76 | 6630 | 37.7 | 599 | 21.13 | 82% |
| GWS HD 10x6 | 1 | 8.7 | 11.6 | 100 | 7290 | 41.4 | 720 | 25.40 | 81% |
| GWS HD 10x6 | 1 | 9.7 | 13.55 | 131 | 7890 | 44.8 | 845 | 29.81 | 78% |
| GWS HD 10x6 | 1 | 10.6 | 15.55 | 164 | 8460 | 48.1 | 970 | 34.22 | 77% |
| GWS HD 11x7 | 1 | 6.8 | 11.6 | 78 | 5370 | 35.6 | 635 | 22.40 | 76% |
| GWS HD 11x7 | 1 | 7.7 | 13.9 | 107 | 5910 | 39.2 | 776 | 27.37 | 74% |
| GWS HD 11x7 | 1 | 8.7 | 16.5 | 143 | 6450 | 42.8 | 914 | 32.24 | 71% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 11x7 | 1 | 9.6 | 18.8 | 180 | 6930 | 45.9 | 1038 | 36.61 | 69% |
| GWS HD 11x7 | 1 | 10.6 | 21.2 | 224 | 7320 | 48.5 | 1160 | 40.92 | 66% |
