Leopard - LC2830-9T
Specifications
- Type: Outrunner
- Weight: 55.00g (1.94oz)
- Diameter: 27.80mm (1.09in)
- Length: 28.65mm (1.13in)
- Shaft Diameter: 3.15mm (0.12in)
- Maximum Amps: 22

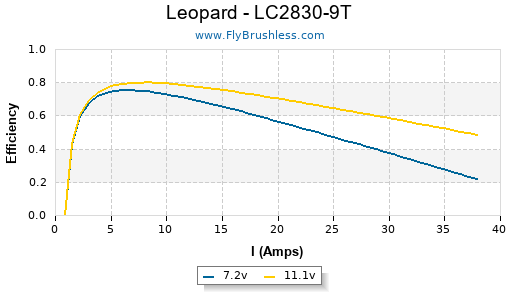

Constants
- kV: 1305
- Rm: 0.148
- Io: 0.85
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.75 | 8990 |
| 8 | 0.8 | 10255 |
| 10 | 0.85 | 12840 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 7x3.5 | 1 | 7 | 3 | 21 | 8550 | 28.3 | 170 | 6.00 | 94% |
| GWS HD 7x3.5 | 1 | 7.9 | 3.6 | 28 | 9630 | 31.9 | 223 | 7.87 | 93% |
| GWS HD 7x3.5 | 1 | 8.9 | 4.4 | 39 | 10740 | 35.6 | 284 | 10.02 | 92% |
| GWS HD 7x3.5 | 1 | 9.9 | 5.15 | 50 | 11790 | 39.1 | 346 | 12.20 | 91% |
| GWS HD 7x3.5 | 1 | 10.9 | 6.15 | 67 | 12900 | 42.8 | 423 | 14.92 | 91% |
| APC Sport 7x7 | 1 | 6.9 | 7.2 | 49 | 7650 | 50.7 | 229 | 8.08 | 85% |
| APC Sport 7x7 | 1 | 7.8 | 8.6 | 67 | 8580 | 56.9 | 284 | 10.02 | 84% |
| APC Sport 7x7 | 1 | 8.8 | 10.4 | 91 | 9420 | 62.4 | 350 | 12.35 | 82% |
| APC Sport 7x7 | 1 | 9.8 | 12.25 | 120 | 10350 | 68.6 | 427 | 15.06 | 81% |
| APC Sport 7x7 | 1 | 10.7 | 13.8 | 147 | 11100 | 73.6 | 500 | 17.64 | 79% |
| APC Sport 7x7 | 1 | 14 | 20.1 | 281 | 13890 | 92.1 | 780 | 27.51 | 76% |
| GWS HD 8x4 | 1 | 6.9 | 5.8 | 40 | 7950 | 30.1 | 336 | 11.85 | 88% |
| GWS HD 8x4 | 1 | 7.8 | 7.1 | 55 | 8880 | 33.6 | 423 | 14.92 | 87% |
| GWS HD 8x4 | 1 | 8.8 | 8.6 | 75 | 9780 | 37.0 | 524 | 18.48 | 85% |
| GWS HD 8x4 | 1 | 9.8 | 10.15 | 99 | 10701 | 40.5 | 620 | 21.87 | 84% |
| GWS HD 8x4 | 1 | 10.7 | 12 | 128 | 11580 | 43.9 | 741 | 26.14 | 83% |
| GWS HD 8x6 | 1 | 6.8 | 9.1 | 61 | 7320 | 41.6 | 384 | 13.55 | 82% |
| GWS HD 8x6 | 1 | 7.8 | 11 | 85 | 8100 | 46.0 | 467 | 16.47 | 80% |
| GWS HD 8x6 | 1 | 8.7 | 13.15 | 114 | 8880 | 50.5 | 561 | 19.79 | 78% |
| GWS HD 8x6 | 1 | 9.7 | 15.35 | 148 | 9570 | 54.4 | 662 | 23.35 | 76% |
| GWS HD 8x6 | 1 | 10.6 | 17.6 | 186 | 10200 | 58.0 | 743 | 26.21 | 74% |
| GWS HD 9x5 | 1 | 6.8 | 9.55 | 64 | 7170 | 33.9 | 504 | 17.78 | 81% |
| GWS HD 9x5 | 1 | 7.7 | 11.65 | 89 | 7950 | 37.6 | 625 | 22.05 | 79% |
| GWS HD 9x5 | 1 | 8.7 | 13.75 | 119 | 8670 | 41.1 | 746 | 26.31 | 76% |
| GWS HD 9x5 | 1 | 9.7 | 16.1 | 156 | 9360 | 44.3 | 891 | 31.43 | 74% |
| GWS HD 9x5 | 1 | 10.6 | 18.35 | 194 | 9960 | 47.2 | 1002 | 35.34 | 72% |
| GWS HD 10x6 | 1 | 6.8 | 12.25 | 83 | 6630 | 37.7 | 599 | 21.13 | 75% |
| GWS HD 10x6 | 1 | 7.6 | 14.6 | 110 | 7290 | 41.4 | 723 | 25.50 | 74% |
| GWS HD 10x6 | 1 | 8.6 | 17.1 | 147 | 7890 | 44.8 | 850 | 29.98 | 70% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 10x6 | 1 | 9.6 | 19.5 | 187 | 8400 | 47.7 | 965 | 34.04 | 67% |
| GWS HD 10x6 | 1 | 10.8 | 22.7 | 245 | 9000 | 51.1 | 1118 | 39.44 | 64% |
