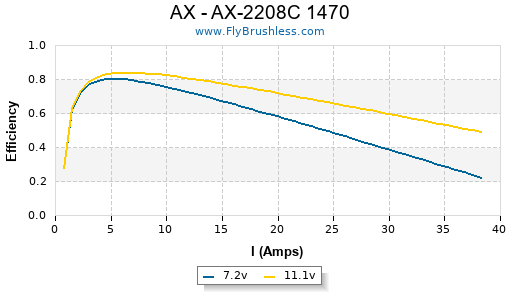

AX - AX-2208C 1470
Specifications
- Type: Outrunner
- Weight: 42.00g (1.48oz)
- Diameter: 28.00mm (1.10in)
- Length: 26.00mm (1.02in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 16
Constants
- kV: 1565
- Rm: 0.146
- Io: 0.55
Io Test Data
Bruce Abbot test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.55 | 10822 |
| 10.5 | 0.7 | 16241 |
Test Data
Bruce Abbot test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 6x5.5 | 1 | 7 | 5.7 | 39 | 9510 | 49.5 | 195 | 6.88 | 87% |
| APC E 6x5.5 | 1 | 10.5 | 10.52 | 110 | 13503 | 70.3 | 409 | 14.43 | 82% |
| APC E 7x5 | 1 | 7 | 8.06 | 56 | 8947 | 42.4 | 346 | 12.20 | 82% |
| APC E 7x5 | 1 | 10.5 | 15.23 | 159 | 12236 | 57.9 | 674 | 23.77 | 74% |
| GWS EP 8x4 | 1 | 7 | 8.18 | 57 | 8921 | 33.8 | 416 | 14.67 | 81% |
| GWS EP 8x4 | 1 | 10.5 | 15.43 | 162 | 12201 | 46.2 | 814 | 28.71 | 74% |
| GWS HD 8x6 | 1 | 7 | 11.58 | 81 | 8097 | 46.0 | 457 | 16.12 | 74% |
| GWS EP 9x5 | 1 | 7 | 13.09 | 91 | 7730 | 32.9 | 588 | 20.74 | 71% |
