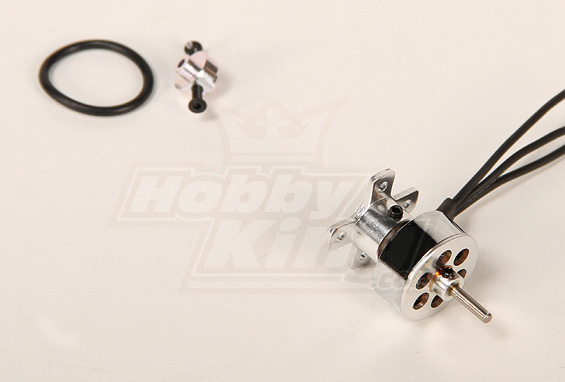

HobbyKing - 1811-2000
Specifications
- Type: Outrunner
- Weight: 10.00g (0.35oz)
- Diameter: 18.00mm (0.71in)
- Length: 30.00mm (1.18in)
- Shaft Diameter: 2.00mm (0.08in)
- Maximum Amps: 5.5
- Maximum RPM: 15000
Constants
- kV: 2000
- Rm: 0.595
- Io: 0.5
Test Data
dvk99 test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 5x3 | 1 | 7.93 | 3 | 23 | 7500 | 21.3 | 112 | 3.95 | 47% |
| GWS HD 5x3 | 1 | 8.09 | 2 | 16 | 6700 | 19.0 | 88 | 3.10 | 41% |
| GWS HD 5x3 | 1 | 8.22 | 1 | 8 | 5260 | 14.9 | 50 | 1.76 | 32% |
| GWS HD 5x3 | 1 | 10.88 | 3 | 32 | 7800 | 22.2 | 123 | 4.34 | 36% |
| GWS HD 5x3 | 1 | 11.01 | 2 | 22 | 7046 | 20.0 | 100 | 3.53 | 32% |
| GWS HD 5x3 | 1 | 11.14 | 1 | 11 | 5570 | 15.8 | 55 | 1.94 | 25% |
| GWS EP 6x3 | 1 | 7.43 | 3 | 22 | 8600 | 24.4 | 110 | 3.88 | 58% |
devinv test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| Dalprop 3_blade_bullnose 3x4.5 | 1 | 11.9 | 3.6 | 42 | 14700 | 63.0 | 94 | 3.32 | 62% |
| Dalprop 3_blade_bullnose 3x4.5 | 1 | 12.4 | 3.8 | 47 | 14800 | 63.0 | 106 | 3.74 | 60% |
| Dalprop 3_blade_bullnose 3x4.5 | 1 | 14.8 | 4.8 | 71 | 16600 | 71.0 | 135 | 4.76 | 56% |
| Dalprop 3_blade_bullnose 3.5x4.5 | 1 | 11.9 | 4.3 | 51 | 14300 | 61.0 | 130 | 4.59 | 60% |
| Dalprop 4045 4x4.5 | 1 | 11.7 | 3.4 | 39 | 15500 | 66.0 | 120 | 4.23 | 66% |
| Dalprop 4045 4x4.5 | 1 | 14.9 | 4.6 | 68 | 17000 | 72.0 | 168 | 5.93 | 57% |
| GemFan 5040 5x4 | 1 | 11.1 | 4.8 | 53 | 11200 | 42.0 | 168 | 5.93 | 50% |
| GemFan 5040 5x4 | 1 | 11.5 | 5 | 57 | 11300 | 43.0 | 173 | 6.10 | 49% |
Comments
dvk99 on 2012-04-15 06:05:35
The prop is HK 5030, 1.98mm shaft
dvk99 on 2012-04-24 12:10:43
20 turn/0.25?? wire
devinv on 2019-02-03 16:37:07
also listed as HURC 180 plus 2000kv
