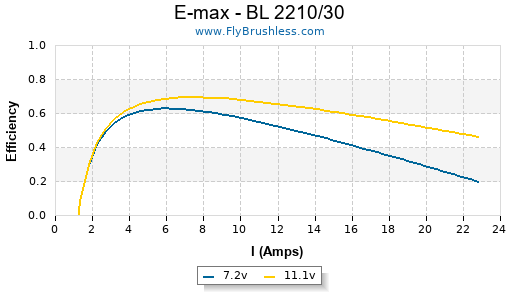

E-max - BL 2210/30



Specifications

  • Type: Outrunner
  • Weight: 45.00g (1.59oz)
  • Diameter: 28.10mm (1.11in)
  • Length: 27.70mm (1.09in)
  • Shaft Diameter: 3.00mm (0.12in)
  • Maximum Amps: 14

Constants

  • kV: 1695
  • Rm: 0.25
  • Io: 1.25



Io Test Data

Dr Kiwi test results
Volts Amps RPM
6.025 0.83 9060
8.03 1.1 13260
10.015 1.25 16440

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
Zagi Carbon 5.1x4.9 1 6.9 4.2 28 10140 47.0 149 5.26 87%
Zagi Carbon 5.1x4.9 1 7.9 5.05 39 11460 53.2 189 6.67 86%
Zagi Carbon 5.1x4.9 1 8.9 6 53 12660 58.7 232 8.18 84%
Zagi Carbon 5.1x4.9 1 9.9 7.05 69 13830 64.2 280 9.88 82%
Zagi Carbon 5.1x4.9 1 10.9 8.1 88 14940 69.3 326 11.50 81%
Zagi Carbon 5.1x4.9 1 11.1 8.3 92 15210 70.6 341 12.03 81%
Zagi Carbon 5.1x4.9 1 12.9 10.4 134 17010 78.9 428 15.10 78%
Zagi Carbon 5.1x4.9 1 14.7 13 191 18690 86.7 527 18.59 75%
APC E 5.25x6.25 1 7 5.8 40 9600 56.8 132 4.66 81%
APC E 5.25x6.25 1 7.9 6.9 54 10680 63.2 161 5.68 80%
APC E 5.25x6.25 1 8.9 8.1 72 11730 69.4 193 6.81 78%
APC E 5.25x6.25 1 9.9 9.65 95 12780 75.6 237 8.36 76%
APC E 5.25x6.25 1 10.9 10.9 118 13710 81.1 268 9.45 74%
APC E 5.25x6.25 1 11.1 11.6 128 13890 82.2 281 9.91 74%
APC E 6x4 1 6.9 4.9 33 9870 37.4 190 6.70 84%
APC E 6x4 1 7.9 5.9 46 11070 41.9 240 8.47 83%
APC E 6x4 1 8.9 7.05 62 12180 46.1 296 10.44 81%
APC E 6x4 1 9.9 8.2 81 13230 50.1 354 12.49 79%
APC E 6x4 1 10.9 9.6 104 14340 54.3 419 14.78 78%
APC E 6x4 1 11.1 10 111 14550 55.1 446 15.73 77%
Aeronaut 6x5 1 11.1 11.5 127 13830 65.5 448 15.80 74%
APC E 6x5.5 1 6.9 6.6 45 9270 48.3 192 6.77 79%
APC E 6x5.5 1 7.9 7.8 61 10260 53.4 236 8.32 77%
APC E 6x5.5 1 8.9 9.25 82 11310 58.9 289 10.19 75%
APC E 6x5.5 1 9.9 10.3 101 12330 64.2 345 12.17 73%
APC E 6x5.5 1 10.9 11.8 128 13140 68.4 403 14.22 71%
Aeronaut 6.5x4 1 11.1 11.6 128 13830 52.4 552 19.47 74%
GWS HD 7x3.5 1 7 4.7 32 9990 33.1 230 8.11 84%
GWS HD 7x3.5 1 7.9 5.7 45 11160 37.0 298 10.51 83%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 7x3.5 1 8.9 6.8 60 12300 40.8 369 13.02 82%
GWS HD 7x3.5 1 9.9 8.05 79 13410 44.5 444 15.66 80%
GWS HD 7x3.5 1 10.9 9.4 102 14400 47.7 529 18.66 78%
APC E 7x5 1 6.9 8.75 60 8430 39.9 321 11.32 72%
APC E 7x5 1 7.9 10.5 82 9210 43.6 395 13.93 69%
APC E 7x5 1 8.9 12.1 107 10020 47.4 468 16.51 66%
APC E 7x5 1 9.9 14.1 139 10650 50.4 556 19.61 63%
APC E 7x5 1 10.9 16 174 11250 53.3 625 22.05 61%
GWS HD 8x4 1 6.9 8.55 58 8520 32.3 381 13.44 73%
GWS HD 8x4 1 7.4 9.45 69 8940 33.9 438 15.45 71%
GWS HD 8x4 1 7.9 10.35 81 9330 35.3 466 16.44 70%
GWS HD 8x4 1 8.9 12.1 107 10080 38.2 547 19.29 67%
GWS HD 8x4 1 9.9 13.9 137 10770 40.8 628 22.15 64%
APC E 10x5 1 6.8 14.3 97 6000 28.4 500 17.64 52%
APC E 10x5 1 7.8 15.7 122 6330 30.0 558 19.68 48%
