NTM - 3530-1400
Specifications
- Type: Outrunner
- Weight: 87.00g (3.07oz)
- Diameter: 35.05mm (1.38in)
- Length: 32.40mm (1.28in)
- Shaft Diameter: 4.00mm (0.16in)
- Maximum Amps: 35

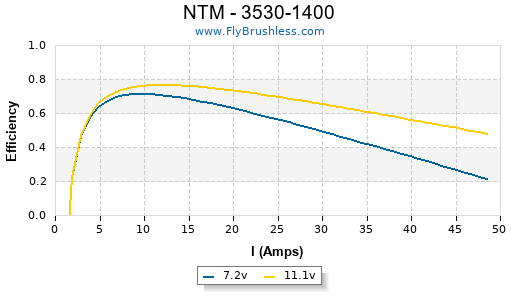

Constants
- kV: 1470
- Rm: 0.116
- Io: 1.5
Io Test Data
Dr Kiwi test results
Volts | Amps | RPM |
---|---|---|
7 | 1.25 | 10050 |
8 | 1.35 | 11495 |
10 | 1.5 | 14300 |
Test Data
Dr Kiwi test results
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
---|---|---|---|---|---|---|---|---|---|
APC E 7x5 | 1 | 6.7 | 8.1 | 54 | 8700 | 41.2 | 327 | 11.53 | 88% |
APC E 7x5 | 1 | 7.7 | 10.05 | 77 | 9780 | 46.3 | 419 | 14.78 | 86% |
APC E 7x5 | 1 | 8.7 | 12 | 104 | 10800 | 51.1 | 516 | 18.20 | 84% |
APC E 7x5 | 1 | 9.6 | 14.3 | 137 | 11790 | 55.8 | 627 | 22.12 | 84% |
APC E 7x5 | 1 | 10.6 | 16.7 | 177 | 12690 | 60.1 | 725 | 25.57 | 81% |
GWS HD 8x4 | 1 | 6.8 | 7.9 | 53 | 8820 | 33.4 | 403 | 14.22 | 88% |
GWS HD 8x4 | 1 | 7.7 | 9.75 | 75 | 9840 | 37.3 | 512 | 18.06 | 87% |
GWS HD 8x4 | 1 | 8.7 | 11.9 | 103 | 10950 | 41.5 | 641 | 22.61 | 86% |
GWS HD 8x4 | 1 | 9.7 | 14.05 | 136 | 11880 | 45.0 | 765 | 26.98 | 83% |
GWS HD 8x4 | 1 | 10.6 | 16.35 | 173 | 12780 | 48.4 | 890 | 31.39 | 82% |
GWS HD 8x6 | 1 | 6.7 | 12.4 | 83 | 8070 | 45.9 | 453 | 15.98 | 82% |
GWS HD 8x6 | 1 | 7.6 | 15.2 | 115 | 8940 | 50.8 | 563 | 19.86 | 80% |
GWS HD 8x6 | 1 | 8.6 | 18.3 | 157 | 9810 | 55.7 | 681 | 24.02 | 78% |
GWS HD 8x6 | 1 | 9.6 | 21.4 | 205 | 10560 | 60.0 | 802 | 28.29 | 75% |
GWS HD 8x6 | 1 | 10.6 | 24.6 | 260 | 11220 | 63.8 | 904 | 31.89 | 72% |
APC E 8x6 | 1 | 7.4 | 16.6 | 122 | 8400 | 47.7 | 540 | 19.05 | 77% |
APC E 8x6 | 1 | 10.6 | 28.4 | 301 | 10680 | 60.7 | 930 | 32.80 | 69% |
APC E 9x4.5 | 1 | 7.6 | 15.6 | 118 | 8550 | 36.4 | 702 | 24.76 | 77% |
APC E 9x4.5 | 1 | 10.7 | 27.8 | 297 | 11070 | 47.2 | 1230 | 43.39 | 70% |
GWS HD 9x5 | 1 | 6.7 | 13 | 87 | 7950 | 37.6 | 613 | 21.62 | 81% |
GWS HD 9x5 | 1 | 7.6 | 15.9 | 120 | 8820 | 41.8 | 760 | 26.81 | 79% |
GWS HD 9x5 | 1 | 8.6 | 19.1 | 164 | 9600 | 45.5 | 910 | 32.10 | 76% |
GWS HD 9x5 | 1 | 9.6 | 22.4 | 215 | 10380 | 49.1 | 1080 | 38.10 | 74% |
GWS HD 9x5 | 1 | 11.6 | 29.7 | 344 | 11700 | 55.4 | 1416 | 49.95 | 69% |
Comments
dodgemanx on 2011-06-10 22:03:03
This is a outrunner as listed on HK's web site.
abristo on 2014-02-28 06:53:51
Is there anybody that used an APC9x6 with this motor? What was the trust?
I`d used it, but I`m not able to measure the trust?
Is there anybody that used 10x5?
