Dualsky - XM 2826 CA-18
Specifications
- Type: Outrunner
- Weight: 44.00g (1.55oz)
- Diameter: 28.00mm (1.10in)
- Length: 26.00mm (1.02in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 14
Constants
- kV: 1030
- Rm: 0.36
- Io: 0.55
Io Test Data

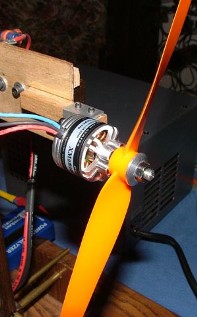

Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.4 | 7080 |
| 8 | 0.45 | 8070 |
| 10 | 0.55 | 10170 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 8x4 | 1 | 7 | 2.9 | 20 | 6270 | 23.8 | 201 | 7.09 | 87% |
| GWS HD 8x4 | 1 | 7.9 | 3.5 | 27 | 7020 | 26.6 | 255 | 8.99 | 86% |
| GWS HD 8x4 | 1 | 8.9 | 4.2 | 37 | 7710 | 29.2 | 314 | 11.08 | 84% |
| GWS HD 8x4 | 1 | 9.9 | 5 | 49 | 8430 | 31.9 | 382 | 13.47 | 83% |
| GWS HD 8x4 | 1 | 10.9 | 5.85 | 63 | 9120 | 34.5 | 450 | 15.87 | 81% |
| GWS HD 9x5 | 1 | 6.9 | 4.8 | 33 | 5640 | 26.7 | 314 | 11.08 | 79% |
| GWS HD 9x5 | 1 | 7.9 | 5.7 | 45 | 6240 | 29.5 | 384 | 13.55 | 77% |
| GWS HD 9x5 | 1 | 8.9 | 6.8 | 60 | 6810 | 32.2 | 468 | 16.51 | 74% |
| GWS HD 9x5 | 1 | 9.9 | 7.9 | 78 | 7380 | 34.9 | 544 | 19.19 | 72% |
| GWS HD 9x5 | 1 | 10.9 | 9.1 | 99 | 7860 | 37.2 | 622 | 21.94 | 70% |
| GWS HD 10x6 | 1 | 6.9 | 6 | 41 | 5190 | 29.5 | 369 | 13.02 | 73% |
| GWS HD 10x6 | 1 | 7.9 | 7.2 | 56 | 5730 | 32.6 | 450 | 15.87 | 70% |
| GWS HD 10x6 | 1 | 8.9 | 8.4 | 74 | 6210 | 35.3 | 531 | 18.73 | 68% |
| GWS HD 10x6 | 1 | 9.8 | 9.6 | 94 | 6630 | 37.7 | 605 | 21.34 | 66% |
| GWS HD 10x6 | 1 | 10.8 | 10.9 | 117 | 7020 | 39.9 | 680 | 23.99 | 63% |
| GWS HD 11x7 | 1 | 6.9 | 8.2 | 56 | 4500 | 29.8 | 453 | 15.98 | 63% |
| GWS HD 11x7 | 1 | 7.8 | 9.65 | 75 | 4860 | 32.2 | 536 | 18.91 | 60% |
| GWS HD 11x7 | 1 | 8.8 | 11 | 96 | 5130 | 34.0 | 608 | 21.45 | 57% |
| GWS HD 11x7 | 1 | 9.8 | 12.3 | 120 | 5460 | 36.2 | 676 | 23.85 | 54% |
| GWS HD 11x7 | 1 | 10.7 | 13.6 | 145 | 5730 | 38.0 | 735 | 25.93 | 52% |
