Hyperion - Z1705-11
Specifications
- Type: Outrunner
- Weight: 18.00g (0.63oz)
- Diameter: 21.00mm (0.83in)
- Length: 22.00mm (0.87in)
- Shaft Diameter: 2.00mm (0.08in)
- Maximum Amps: 8
Constants
- kV: 2300
- Rm: 0.32
- Io: 0.9
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.65 | 15600 |
| 8 | 0.7 | 17900 |
| 10 | 0.9 | 22400 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 4x4 | 1 | 7 | 3.75 | 26 | 13380 | 50.7 | 101 | 3.56 | 83% |
| GWS HD 4x4 | 1 | 7.4 | 4 | 29 | 13950 | 52.8 | 111 | 3.92 | 82% |
| GWS HD 4x4 | 1 | 7.9 | 4.5 | 35 | 14730 | 55.8 | 126 | 4.44 | 81% |
| GWS HD 4x4 | 1 | 8.9 | 5.3 | 47 | 16140 | 61.1 | 152 | 5.36 | 79% |
| GWS HD 4x4 | 1 | 9.9 | 6.2 | 61 | 17490 | 66.2 | 178 | 6.28 | 77% |
| GWS HD 4x4 | 1 | 10.9 | 7.15 | 77 | 18720 | 70.9 | 204 | 7.20 | 75% |
| Gunther White 4.92x4.33 | 1 | 7 | 6 | 42 | 11550 | 47.4 | 197 | 6.95 | 72% |
| Gunther White 4.92x4.33 | 1 | 7.4 | 6.5 | 48 | 12000 | 49.2 | 214 | 7.55 | 71% |
| GWS HD 5x3 | 1 | 7 | 3.7 | 25 | 13470 | 38.3 | 159 | 5.61 | 84% |
| GWS HD 5x3 | 1 | 7.4 | 4 | 29 | 13980 | 39.7 | 174 | 6.14 | 82% |
| GWS HD 5x3 | 1 | 7.9 | 4.45 | 35 | 14730 | 41.9 | 193 | 6.81 | 81% |
| GWS HD 5x3 | 1 | 8.9 | 5.2 | 46 | 16230 | 46.1 | 237 | 8.36 | 79% |
| GWS HD 5x3 | 1 | 9.9 | 6 | 59 | 17610 | 50.0 | 279 | 9.84 | 77% |
| GWS HD 5x3 | 1 | 10.8 | 7.1 | 76 | 18720 | 53.2 | 308 | 10.86 | 75% |
| GWS HD 5x4.3 | 1 | 7 | 5.55 | 38 | 11910 | 48.5 | 183 | 6.46 | 74% |
| GWS HD 5x4.3 | 1 | 7.4 | 6 | 44 | 12480 | 50.8 | 199 | 7.02 | 73% |
| GWS HD 6x3 | 1 | 7 | 5.45 | 38 | 12000 | 34.1 | 228 | 8.04 | 75% |
| GWS HD 6x3 | 1 | 7.4 | 5.9 | 43 | 12480 | 35.5 | 250 | 8.82 | 73% |
| GWS HD 7x3.5 | 1 | 7 | 7 | 49 | 10770 | 35.7 | 290 | 10.23 | 67% |
| GWS HD 7x3.5 | 1 | 7.4 | 7.35 | 54 | 11100 | 36.8 | 303 | 10.69 | 65% |
| APC SF 7x4 | 1 | 7 | 9.2 | 64 | 8550 | 32.4 | 298 | 10.51 | 53% |
| APC SF 7x4 | 1 | 7.4 | 9.6 | 71 | 8820 | 33.4 | 305 | 10.76 | 52% |
Comments
Dr Kiwi on 2010-12-22 11:05:09

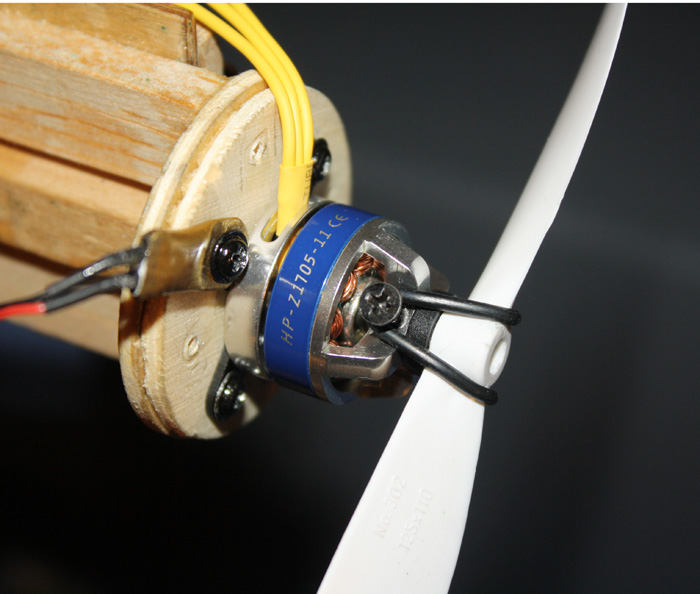

Built-in propsaver... no exposed shaft
