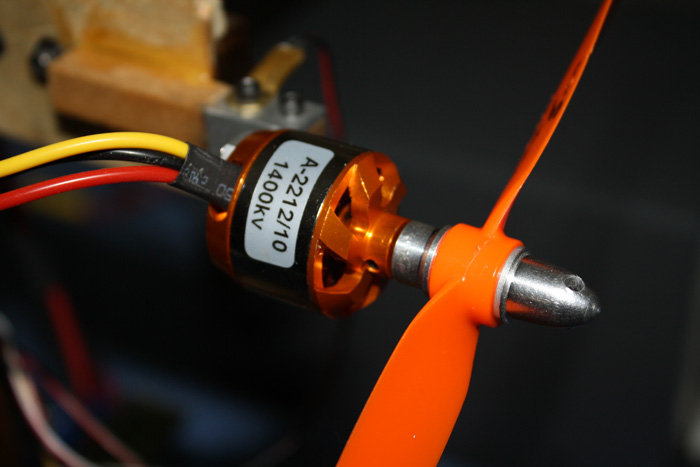

Strong Power - A2212/10
Specifications
- Type: Outrunner
- Weight: 52.00g (1.83oz)
- Diameter: 27.80mm (1.09in)
- Length: 29.10mm (1.15in)
- Shaft Diameter: 3.20mm (0.13in)
- Maximum Amps: 18
Constants
- kV: 1500
- Rm: 0.18
- Io: 1.1
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 1.1 | 10200 |
| 8 | 1.1 | 11720 |
| 10 | 1.1 | 14675 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| EMP 6x4 | 1 | 6.9 | 3.8 | 26 | 9570 | 36.2 | 169 | 5.96 | 92% |
| EMP 6x4 | 1 | 7.9 | 4.7 | 37 | 10830 | 41.0 | 222 | 7.83 | 91% |
| EMP 6x4 | 1 | 8.9 | 5.6 | 49 | 12000 | 45.5 | 278 | 9.81 | 90% |
| EMP 6x4 | 1 | 9.9 | 6.6 | 65 | 13170 | 49.9 | 344 | 12.13 | 89% |
| EMP 6x4 | 1 | 10.9 | 7.7 | 83 | 14310 | 54.2 | 422 | 14.89 | 88% |
| EMP 6x5 | 1 | 6.9 | 4.7 | 32 | 9360 | 44.3 | 216 | 7.62 | 90% |
| EMP 6x5 | 1 | 7.9 | 5.7 | 45 | 10560 | 50.0 | 276 | 9.74 | 89% |
| EMP 6x5 | 1 | 8.9 | 6.8 | 60 | 11700 | 55.4 | 336 | 11.85 | 88% |
| EMP 6x5 | 1 | 9.9 | 8 | 79 | 12780 | 60.5 | 402 | 14.18 | 86% |
| EMP 6x5 | 1 | 10.9 | 9.25 | 100 | 13830 | 65.5 | 476 | 16.79 | 85% |
| Graupner CAM 6x6 | 1 | 6.9 | 5.75 | 39 | 9060 | 51.5 | 171 | 6.03 | 88% |
| Graupner CAM 6x6 | 1 | 7.9 | 7.05 | 55 | 10170 | 57.8 | 219 | 7.72 | 86% |
| Graupner CAM 6x6 | 1 | 8.8 | 8.25 | 72 | 11220 | 63.8 | 268 | 9.45 | 85% |
| Graupner CAM 6x6 | 1 | 9.8 | 9.65 | 94 | 12300 | 69.9 | 328 | 11.57 | 84% |
| Graupner CAM 6x6 | 1 | 10.8 | 11 | 118 | 13260 | 75.3 | 384 | 13.55 | 82% |
| Graupner CAM Speed 6.5x6.5 | 1 | 6.9 | 7.1 | 48 | 8730 | 53.7 | 213 | 7.51 | 84% |
| Graupner CAM Speed 6.5x6.5 | 1 | 7.8 | 8.6 | 67 | 9780 | 60.2 | 265 | 9.35 | 84% |
| Graupner CAM Speed 6.5x6.5 | 1 | 8.8 | 10.2 | 89 | 10710 | 65.9 | 321 | 11.32 | 81% |
| Graupner CAM Speed 6.5x6.5 | 1 | 9.8 | 12 | 117 | 11670 | 71.8 | 379 | 13.37 | 79% |
| Graupner CAM Speed 6.5x6.5 | 1 | 10.8 | 13.7 | 147 | 12540 | 77.2 | 438 | 15.45 | 77% |
| APC E 7x5 | 1 | 6.9 | 7.9 | 54 | 8550 | 40.5 | 328 | 11.57 | 83% |
| APC E 7x5 | 1 | 7.8 | 9.6 | 74 | 9540 | 45.2 | 411 | 14.50 | 82% |
| APC E 7x5 | 1 | 8.8 | 11.5 | 101 | 10470 | 49.6 | 501 | 17.67 | 79% |
| APC E 7x5 | 1 | 9.8 | 13.5 | 132 | 11370 | 53.8 | 597 | 21.06 | 77% |
| APC E 7x5 | 1 | 10.8 | 15.35 | 165 | 12090 | 57.2 | 681 | 24.02 | 75% |
| APC E 7x6 | 1 | 6.8 | 8.85 | 60 | 8310 | 47.2 | 332 | 11.71 | 81% |
| APC E 7x6 | 1 | 7.8 | 10.6 | 82 | 9300 | 52.8 | 426 | 15.03 | 79% |
| APC E 7x6 | 1 | 8.8 | 12.45 | 109 | 10200 | 58.0 | 523 | 18.45 | 77% |
| APC E 7x6 | 1 | 9.7 | 14.55 | 141 | 11040 | 62.7 | 618 | 21.80 | 76% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| APC E 7x6 | 1 | 10.7 | 16.55 | 177 | 11700 | 66.5 | 700 | 24.69 | 73% |
| APC Sport 7x7 | 1 | 6.9 | 8.6 | 59 | 8400 | 55.7 | 307 | 10.83 | 81% |
| APC Sport 7x7 | 1 | 7.8 | 10.3 | 80 | 9300 | 61.6 | 377 | 13.30 | 79% |
| APC Sport 7x7 | 1 | 8.8 | 12.1 | 106 | 10200 | 67.6 | 455 | 16.05 | 77% |
| APC Sport 7x7 | 1 | 9.7 | 14.1 | 136 | 11010 | 73.0 | 534 | 18.84 | 76% |
| APC Sport 7x7 | 1 | 10.7 | 16.1 | 172 | 11820 | 78.3 | 620 | 21.87 | 74% |
| GWS HD 8x4 | 1 | 6.9 | 7.6 | 52 | 8670 | 32.8 | 395 | 13.93 | 84% |
| GWS HD 8x4 | 1 | 7.9 | 9.25 | 73 | 9660 | 36.6 | 494 | 17.43 | 82% |
| GWS HD 8x4 | 1 | 8.8 | 11 | 96 | 10560 | 40.0 | 592 | 20.88 | 80% |
| GWS HD 8x4 | 1 | 9.8 | 13 | 127 | 11430 | 43.3 | 712 | 25.12 | 78% |
| GWS HD 8x4 | 1 | 10.8 | 14.9 | 160 | 12180 | 46.1 | 815 | 28.75 | 75% |
| GWS HD 9x5 | 1 | 6.8 | 12 | 81 | 7560 | 35.8 | 571 | 20.14 | 74% |
| GWS HD 9x5 | 1 | 7.7 | 14.45 | 111 | 8310 | 39.4 | 688 | 24.27 | 72% |
| GWS HD 9x5 | 1 | 8.7 | 16.4 | 142 | 8940 | 42.3 | 790 | 27.87 | 69% |
| GWS HD 9x5 | 1 | 9.7 | 19.3 | 187 | 9510 | 45.0 | 925 | 32.63 | 65% |
| GWS HD 9x5 | 1 | 10.6 | 21.8 | 231 | 10050 | 47.6 | 1040 | 36.68 | 63% |
