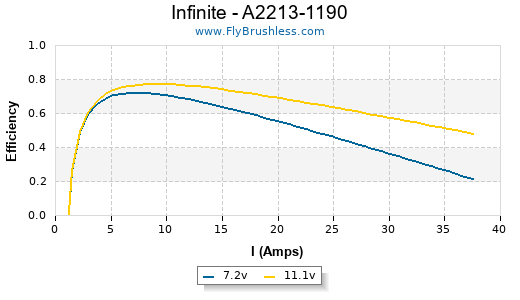

Infinite - A2213-1190
Specifications
- Type: Outrunner
- Weight: 60.00g (2.12oz)
- Diameter: 27.85mm (1.10in)
- Length: 31.60mm (1.24in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 20
Constants
- kV: 1140
- Rm: 0.15
- Io: 1.1
Io Test Data
Dr Kiwi test results
Volts | Amps | RPM |
---|---|---|
7 | 0.85 | 7770 |
8 | 0.95 | 8850 |
10 | 1.1 | 11220 |
Test Data
Dr Kiwi test results
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
---|---|---|---|---|---|---|---|---|---|
APC E 7x5 | 1 | 6.9 | 4.5 | 31 | 7080 | 33.5 | 214 | 7.55 | 90% |
APC E 7x5 | 1 | 6.9 | 4.5 | 31 | 7080 | 33.5 | 214 | 7.55 | 90% |
APC E 7x5 | 1 | 7.8 | 5.5 | 42 | 7980 | 37.8 | 277 | 9.77 | 90% |
APC E 7x5 | 1 | 7.8 | 5.5 | 42 | 7980 | 37.8 | 277 | 9.77 | 90% |
APC E 7x5 | 1 | 8.8 | 6.55 | 57 | 8820 | 41.8 | 344 | 12.13 | 88% |
APC E 7x5 | 1 | 8.8 | 6.55 | 57 | 8820 | 41.8 | 344 | 12.13 | 88% |
APC E 7x5 | 1 | 9.8 | 8 | 78 | 9780 | 46.3 | 433 | 15.27 | 88% |
APC E 7x5 | 1 | 9.8 | 8 | 78 | 9780 | 46.3 | 433 | 15.27 | 88% |
APC E 7x5 | 1 | 10.8 | 9.25 | 99 | 10590 | 50.1 | 505 | 17.81 | 86% |
APC E 7x5 | 1 | 10.8 | 9.25 | 99 | 10590 | 50.1 | 505 | 17.81 | 86% |
GWS HD 8x4 | 1 | 6.9 | 4.45 | 30 | 7110 | 26.9 | 267 | 9.42 | 90% |
GWS HD 8x4 | 1 | 6.9 | 4.45 | 30 | 7110 | 26.9 | 267 | 9.42 | 90% |
GWS HD 8x4 | 1 | 7.9 | 5.5 | 43 | 8010 | 30.3 | 343 | 12.10 | 89% |
GWS HD 8x4 | 1 | 7.9 | 5.5 | 43 | 8010 | 30.3 | 343 | 12.10 | 89% |
GWS HD 8x4 | 1 | 8.9 | 6.55 | 58 | 8850 | 33.5 | 425 | 14.99 | 87% |
GWS HD 8x4 | 1 | 8.9 | 6.55 | 58 | 8850 | 33.5 | 425 | 14.99 | 87% |
GWS HD 8x4 | 1 | 9.9 | 8.1 | 80 | 9840 | 37.3 | 530 | 18.70 | 87% |
GWS HD 8x4 | 1 | 9.9 | 8.1 | 80 | 9840 | 37.3 | 530 | 18.70 | 87% |
GWS HD 8x4 | 1 | 10.8 | 9.4 | 101 | 10620 | 40.2 | 621 | 21.91 | 86% |
GWS HD 8x4 | 1 | 10.8 | 9.4 | 101 | 10620 | 40.2 | 621 | 21.91 | 86% |
APC E 8x6 | 1 | 6.8 | 7.8 | 53 | 6450 | 36.6 | 312 | 11.01 | 83% |
APC E 8x6 | 1 | 6.8 | 7.8 | 53 | 6450 | 36.6 | 312 | 11.01 | 83% |
APC E 8x6 | 1 | 7.8 | 9.75 | 76 | 7230 | 41.1 | 399 | 14.07 | 81% |
APC E 8x6 | 1 | 7.8 | 9.75 | 76 | 7230 | 41.1 | 399 | 14.07 | 81% |
APC E 8x6 | 1 | 8.8 | 11.5 | 101 | 7860 | 44.7 | 475 | 16.76 | 78% |
APC E 8x6 | 1 | 8.8 | 11.5 | 101 | 7860 | 44.7 | 475 | 16.76 | 78% |
APC E 8x6 | 1 | 9.8 | 13.65 | 133 | 8520 | 48.4 | 565 | 19.93 | 76% |
APC E 8x6 | 1 | 9.8 | 13.65 | 133 | 8520 | 48.4 | 565 | 19.93 | 76% |
APC E 8x6 | 1 | 10.7 | 15.9 | 170 | 9150 | 52.0 | 656 | 23.14 | 75% |
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
APC E 8x6 | 1 | 10.7 | 15.9 | 170 | 9150 | 52.0 | 656 | 23.14 | 75% |
APC E 8x8 | 1 | 6.8 | 10 | 68 | 6090 | 46.1 | 302 | 10.65 | 79% |
APC E 8x8 | 1 | 6.8 | 10 | 68 | 6090 | 46.1 | 302 | 10.65 | 79% |
APC E 8x8 | 1 | 7.8 | 12.15 | 94 | 6750 | 51.1 | 382 | 13.47 | 76% |
APC E 8x8 | 1 | 7.8 | 12.15 | 94 | 6750 | 51.1 | 382 | 13.47 | 76% |
APC E 8x8 | 1 | 8.8 | 14.2 | 124 | 7380 | 55.9 | 455 | 16.05 | 74% |
APC E 8x8 | 1 | 8.8 | 14.2 | 124 | 7380 | 55.9 | 455 | 16.05 | 74% |
APC E 8x8 | 1 | 9.7 | 16.5 | 160 | 7950 | 60.2 | 537 | 18.94 | 72% |
APC E 8x8 | 1 | 9.7 | 16.5 | 160 | 7950 | 60.2 | 537 | 18.94 | 72% |
APC E 8x8 | 1 | 10.7 | 18.9 | 202 | 8550 | 64.8 | 614 | 21.66 | 70% |
APC E 8x8 | 1 | 10.7 | 18.9 | 202 | 8550 | 64.8 | 614 | 21.66 | 70% |
APC E 8x8 | 1 | 11.6 | 20.5 | 237 | 8880 | 67.3 | 667 | 23.53 | 67% |
APC E 8x8 | 1 | 11.6 | 20.5 | 237 | 8880 | 67.3 | 667 | 23.53 | 67% |
GWS HD 9x5 | 1 | 6.8 | 7.35 | 49 | 6600 | 31.2 | 421 | 14.85 | 85% |
GWS HD 9x5 | 1 | 6.8 | 7.35 | 49 | 6600 | 31.2 | 421 | 14.85 | 85% |
GWS HD 9x5 | 1 | 7.8 | 9.05 | 70 | 7410 | 35.1 | 537 | 18.94 | 83% |
GWS HD 9x5 | 1 | 7.8 | 9.05 | 70 | 7410 | 35.1 | 537 | 18.94 | 83% |
GWS HD 9x5 | 1 | 8.8 | 10.75 | 94 | 8070 | 38.2 | 650 | 22.93 | 80% |
GWS HD 9x5 | 1 | 8.8 | 10.75 | 94 | 8070 | 38.2 | 650 | 22.93 | 80% |
GWS HD 9x5 | 1 | 9.8 | 12.8 | 125 | 8820 | 41.8 | 780 | 27.51 | 79% |
GWS HD 9x5 | 1 | 9.8 | 12.8 | 125 | 8820 | 41.8 | 780 | 27.51 | 79% |
GWS HD 9x5 | 1 | 10.7 | 15.1 | 161 | 9510 | 45.0 | 896 | 31.61 | 78% |
GWS HD 9x5 | 1 | 10.7 | 15.1 | 161 | 9510 | 45.0 | 896 | 31.61 | 78% |
GWS HD 10x6 | 1 | 6.8 | 9.8 | 66 | 6150 | 34.9 | 523 | 18.45 | 79% |
GWS HD 10x6 | 1 | 6.8 | 9.8 | 66 | 6150 | 34.9 | 523 | 18.45 | 79% |
GWS HD 10x6 | 1 | 7.8 | 11.95 | 93 | 6840 | 38.9 | 649 | 22.89 | 77% |
GWS HD 10x6 | 1 | 7.8 | 11.95 | 93 | 6840 | 38.9 | 649 | 22.89 | 77% |
GWS HD 10x6 | 1 | 8.8 | 14.1 | 124 | 7470 | 42.4 | 780 | 27.51 | 74% |
GWS HD 10x6 | 1 | 8.8 | 14.1 | 124 | 7470 | 42.4 | 780 | 27.51 | 74% |
GWS HD 10x6 | 1 | 9.7 | 16.3 | 158 | 8010 | 45.5 | 900 | 31.75 | 72% |
Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
GWS HD 10x6 | 1 | 9.7 | 16.3 | 158 | 8010 | 45.5 | 900 | 31.75 | 72% |
GWS HD 10x6 | 1 | 10.7 | 18.7 | 200 | 8580 | 48.8 | 1034 | 36.47 | 70% |
GWS HD 10x6 | 1 | 10.7 | 18.7 | 200 | 8580 | 48.8 | 1034 | 36.47 | 70% |
