Infinite - A2209-1160
Specifications
- Type: Outrunner
- Weight: 46.00g (1.62oz)
- Diameter: 27.85mm (1.10in)
- Length: 27.60mm (1.09in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 12

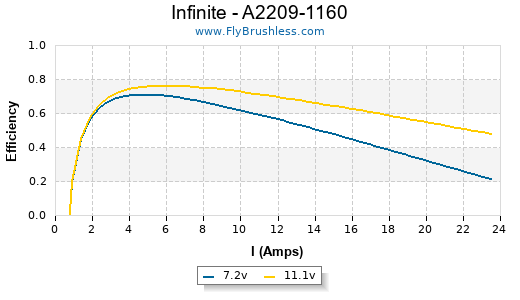

Constants
- kV: 1200
- Rm: 0.24
- Io: 0.75
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.6 | 8130 |
| 8 | 0.65 | 9510 |
| 10 | 0.75 | 11760 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 7x5 | 1 | 6.9 | 4.4 | 30 | 7110 | 33.7 | 220 | 7.76 | 86% |
| APC E 7x5 | 1 | 6.9 | 4.4 | 30 | 7110 | 33.7 | 220 | 7.76 | 86% |
| APC E 7x5 | 1 | 7.9 | 5.3 | 41 | 7950 | 37.6 | 276 | 9.74 | 84% |
| APC E 7x5 | 1 | 7.9 | 5.3 | 41 | 7950 | 37.6 | 276 | 9.74 | 84% |
| APC E 7x5 | 1 | 8.9 | 6.4 | 56 | 8790 | 41.6 | 346 | 12.20 | 82% |
| APC E 7x5 | 1 | 8.9 | 6.4 | 56 | 8790 | 41.6 | 346 | 12.20 | 82% |
| APC E 7x5 | 1 | 9.8 | 7.65 | 74 | 9600 | 45.5 | 419 | 14.78 | 82% |
| APC E 7x5 | 1 | 9.8 | 7.65 | 74 | 9600 | 45.5 | 419 | 14.78 | 82% |
| APC E 7x5 | 1 | 10.8 | 8.8 | 95 | 10350 | 49.0 | 488 | 17.21 | 80% |
| APC E 7x5 | 1 | 10.8 | 8.8 | 95 | 10350 | 49.0 | 488 | 17.21 | 80% |
| GWS HD 8x4 | 1 | 6.9 | 4.3 | 29 | 7110 | 26.9 | 269 | 9.49 | 86% |
| GWS HD 8x4 | 1 | 6.9 | 4.3 | 29 | 7110 | 26.9 | 269 | 9.49 | 86% |
| GWS HD 8x4 | 1 | 7.9 | 5.3 | 41 | 7950 | 30.1 | 340 | 11.99 | 84% |
| GWS HD 8x4 | 1 | 7.9 | 5.3 | 41 | 7950 | 30.1 | 340 | 11.99 | 84% |
| GWS HD 8x4 | 1 | 8.9 | 6.35 | 56 | 8760 | 33.2 | 415 | 14.64 | 82% |
| GWS HD 8x4 | 1 | 8.9 | 6.35 | 56 | 8760 | 33.2 | 415 | 14.64 | 82% |
| GWS HD 8x4 | 1 | 9.9 | 7.7 | 76 | 9630 | 36.5 | 511 | 18.02 | 81% |
| GWS HD 8x4 | 1 | 9.9 | 7.7 | 76 | 9630 | 36.5 | 511 | 18.02 | 81% |
| GWS HD 8x4 | 1 | 10.8 | 8.9 | 96 | 10350 | 39.2 | 592 | 20.88 | 80% |
| GWS HD 8x4 | 1 | 10.8 | 8.9 | 96 | 10350 | 39.2 | 592 | 20.88 | 80% |
| GWS HD 8x6 | 1 | 6.9 | 6.55 | 45 | 6510 | 37.0 | 302 | 10.65 | 79% |
| GWS HD 8x6 | 1 | 6.9 | 6.55 | 45 | 6510 | 37.0 | 302 | 10.65 | 79% |
| GWS HD 8x6 | 1 | 7.9 | 8 | 63 | 7200 | 40.9 | 371 | 13.09 | 76% |
| GWS HD 8x6 | 1 | 7.9 | 8 | 63 | 7200 | 40.9 | 371 | 13.09 | 76% |
| GWS HD 8x6 | 1 | 8.9 | 9.5 | 84 | 7860 | 44.7 | 443 | 15.63 | 74% |
| GWS HD 8x6 | 1 | 8.9 | 9.5 | 84 | 7860 | 44.7 | 443 | 15.63 | 74% |
| GWS HD 8x6 | 1 | 9.8 | 10.9 | 106 | 8400 | 47.7 | 508 | 17.92 | 71% |
| GWS HD 8x6 | 1 | 9.8 | 10.9 | 106 | 8400 | 47.7 | 508 | 17.92 | 71% |
| GWS HD 8x6 | 1 | 10.8 | 12.7 | 137 | 9030 | 51.3 | 592 | 20.88 | 70% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 8x6 | 1 | 10.8 | 12.7 | 137 | 9030 | 51.3 | 592 | 20.88 | 70% |
| APC E 8x6 | 1 | 6.8 | 7.3 | 49 | 6240 | 35.5 | 293 | 10.34 | 76% |
| APC E 8x6 | 1 | 6.8 | 7.3 | 49 | 6240 | 35.5 | 293 | 10.34 | 76% |
| APC E 8x6 | 1 | 7.8 | 8.9 | 69 | 6900 | 39.2 | 364 | 12.84 | 74% |
| APC E 8x6 | 1 | 7.8 | 8.9 | 69 | 6900 | 39.2 | 364 | 12.84 | 74% |
| APC E 8x6 | 1 | 8.8 | 10.5 | 92 | 7470 | 42.4 | 430 | 15.17 | 71% |
| APC E 8x6 | 1 | 8.8 | 10.5 | 92 | 7470 | 42.4 | 430 | 15.17 | 71% |
| APC E 8x6 | 1 | 9.7 | 12.2 | 118 | 7980 | 45.3 | 497 | 17.53 | 69% |
| APC E 8x6 | 1 | 9.7 | 12.2 | 118 | 7980 | 45.3 | 497 | 17.53 | 69% |
| APC E 8x6 | 1 | 10.7 | 13.9 | 148 | 8520 | 48.4 | 563 | 19.86 | 66% |
| APC E 8x6 | 1 | 10.7 | 13.9 | 148 | 8520 | 48.4 | 563 | 19.86 | 66% |
| GWS HD 9x5 | 1 | 6.9 | 6.9 | 47 | 6420 | 30.4 | 397 | 14.00 | 78% |
| GWS HD 9x5 | 1 | 6.9 | 6.9 | 47 | 6420 | 30.4 | 397 | 14.00 | 78% |
| GWS HD 9x5 | 1 | 7.9 | 8.4 | 66 | 7110 | 33.7 | 494 | 17.43 | 75% |
| GWS HD 9x5 | 1 | 7.9 | 8.4 | 66 | 7110 | 33.7 | 494 | 17.43 | 75% |
| GWS HD 9x5 | 1 | 8.8 | 9.85 | 86 | 7710 | 36.5 | 584 | 20.60 | 73% |
| GWS HD 9x5 | 1 | 8.8 | 9.85 | 86 | 7710 | 36.5 | 584 | 20.60 | 73% |
| GWS HD 9x5 | 1 | 9.8 | 11.45 | 112 | 8340 | 39.5 | 686 | 24.20 | 71% |
| GWS HD 9x5 | 1 | 9.8 | 11.45 | 112 | 8340 | 39.5 | 686 | 24.20 | 71% |
| GWS HD 9x5 | 1 | 10.7 | 13.1 | 140 | 8820 | 41.8 | 780 | 27.51 | 69% |
| GWS HD 9x5 | 1 | 10.7 | 13.1 | 140 | 8820 | 41.8 | 780 | 27.51 | 69% |
| GWS HD 10x6 | 1 | 7 | 9.3 | 65 | 5940 | 33.8 | 491 | 17.32 | 71% |
| GWS HD 10x6 | 1 | 7 | 9.3 | 65 | 5940 | 33.8 | 491 | 17.32 | 71% |
| GWS HD 10x6 | 1 | 7.4 | 10 | 74 | 6150 | 34.9 | 532 | 18.77 | 69% |
| GWS HD 10x6 | 1 | 7.4 | 10 | 74 | 6150 | 34.9 | 532 | 18.77 | 69% |
