KEDA - TR2837/12



Specifications

  • Type: Outrunner
  • Weight: 81.00g (2.86oz)
  • Diameter: 28.00mm (1.10in)
  • Length: 37.00mm (1.46in)
  • Shaft Diameter: 3.17mm (0.12in)
  • Maximum Amps: 30

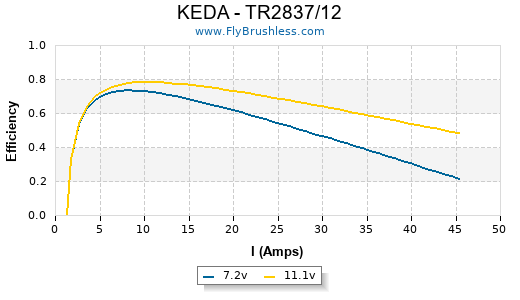

Constants

  • kV: 1230
  • Rm: 0.124
  • Io: 1.2



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 1 8450
8 1.1 9720
10 1.2 12030

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 9x5 1 6.9 9.1 62 7110 33.7 494 17.43 84%
GWS HD 9x5 1 7.8 11.05 86 7860 37.2 608 21.45 82%
GWS HD 9x5 1 8.7 13.2 114 8640 40.9 736 25.96 81%
GWS HD 9x5 1 9.7 16 155 9420 44.6 895 31.57 79%
GWS HD 9x5 1 10.6 18.3 193 10080 47.7 1037 36.58 77%
GWS HD 10x6 1 6.8 12 81 6630 37.7 598 21.09 79%
GWS HD 10x6 1 7.7 14.6 112 7320 41.6 730 25.75 77%
GWS HD 10x6 1 8.7 17.15 149 7980 45.3 870 30.69 75%
GWS HD 10x6 1 9.6 19.7 189 8550 48.6 1020 35.98 72%
GWS HD 10x6 1 10.6 22.8 241 9150 52.0 1150 40.57 70%
GWS HD 11x7 1 7.3 18.4 134 6210 41.2 856 30.19 69%
GWS HD 11x7 1 11.4 33.5 381 8250 54.7 1560 55.03 59%
