KEDA - TR2834/16
Specifications
- Type: Outrunner
- Weight: 70.00g (2.47oz)
- Diameter: 28.00mm (1.10in)
- Length: 34.00mm (1.34in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 25

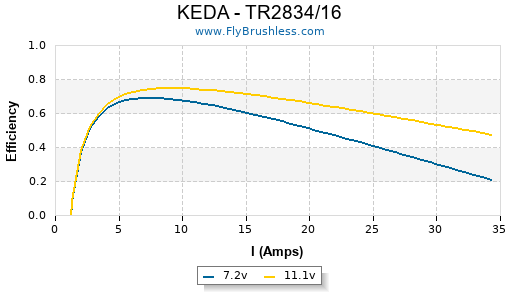

Constants
- kV: 1165
- Rm: 0.165
- Io: 1.25
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 1.05 | 7900 |
| 8 | 1.15 | 9010 |
| 10 | 1.25 | 11400 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 8x4 | 1 | 6.9 | 4.75 | 32 | 7140 | 27.1 | 269 | 9.49 | 89% |
| GWS HD 8x4 | 1 | 7.8 | 5.85 | 45 | 8040 | 30.4 | 346 | 12.20 | 88% |
| GWS HD 8x4 | 1 | 8.8 | 6.9 | 60 | 8880 | 33.6 | 424 | 14.96 | 87% |
| GWS HD 8x4 | 1 | 9.8 | 8.5 | 83 | 9870 | 37.4 | 530 | 18.70 | 86% |
| GWS HD 8x4 | 1 | 10.8 | 9.7 | 104 | 10590 | 40.1 | 622 | 21.94 | 84% |
| GWS HD 9x5 | 1 | 6.9 | 7.7 | 53 | 6630 | 31.4 | 424 | 14.96 | 82% |
| GWS HD 9x5 | 1 | 7.8 | 9.3 | 72 | 7350 | 34.8 | 531 | 18.73 | 81% |
| GWS HD 9x5 | 1 | 8.8 | 11.05 | 97 | 8100 | 38.4 | 646 | 22.79 | 79% |
| GWS HD 9x5 | 1 | 9.8 | 12.9 | 126 | 8760 | 41.5 | 759 | 26.77 | 77% |
| GWS HD 9x5 | 1 | 10.7 | 15.15 | 162 | 9450 | 44.7 | 880 | 31.04 | 76% |
| GWS HD 10x6 | 1 | 6.8 | 10 | 68 | 6120 | 34.8 | 515 | 18.17 | 77% |
| GWS HD 10x6 | 1 | 7.7 | 12.15 | 93 | 6810 | 38.7 | 644 | 22.72 | 76% |
| GWS HD 10x6 | 1 | 8.7 | 14.2 | 123 | 7410 | 42.1 | 758 | 26.74 | 73% |
| GWS HD 10x6 | 1 | 9.6 | 16.35 | 156 | 7950 | 45.2 | 883 | 31.15 | 71% |
| GWS HD 10x6 | 1 | 10.6 | 18.6 | 197 | 8520 | 48.4 | 1011 | 35.66 | 69% |
| GWS HD 11x7 | 1 | 6.7 | 13.6 | 91 | 5490 | 36.4 | 658 | 23.21 | 70% |
| GWS HD 11x7 | 1 | 7.6 | 16 | 121 | 6030 | 40.0 | 791 | 27.90 | 68% |
| GWS HD 11x7 | 1 | 8.6 | 18.5 | 159 | 6480 | 43.0 | 900 | 31.75 | 65% |
| GWS HD 11x7 | 1 | 9.6 | 21.1 | 202 | 6900 | 45.7 | 1042 | 36.76 | 62% |
| GWS HD 11x7 | 1 | 10.6 | 23.5 | 249 | 7290 | 48.3 | 1150 | 40.57 | 59% |
