KEDA - TR2826/26

Specifications

  • Type: Outrunner
  • Weight: 46.00g (1.62oz)
  • Diameter: 28.00mm (1.10in)
  • Length: 26.00mm (1.02in)
  • Shaft Diameter: 3.17mm (0.12in)
  • Maximum Amps: 15

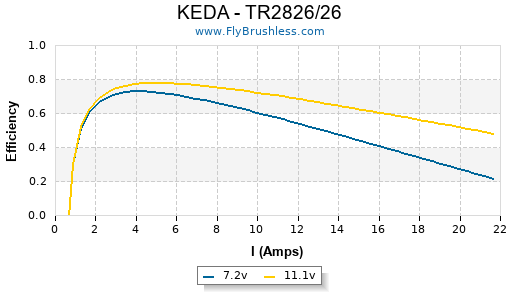

Constants

  • kV: 1290
  • Rm: 0.26
  • Io: 0.6



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 0.5 8940
8 0.55 10200
10 0.6 12680

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC SF Broad 7x3.8 1 6.9 5.1 35 7500 27.0 280 9.88 84%
APC SF Broad 7x3.8 1 7.9 6.4 50 8280 29.8 358 12.63 81%
APC SF Broad 7x3.8 1 8.8 7.55 66 9030 32.5 451 15.91 80%
APC SF Broad 7x3.8 1 9.8 8.9 87 9780 35.2 513 18.10 77%
APC SF Broad 7x3.8 1 10.8 10.3 111 10470 37.7 590 20.81 75%
APC WSF 7x3.8 1 6.9 5.1 35 7500 27.0 280 9.88 84%
APC WSF 7x3.8 1 7.9 6.4 50 8280 29.8 358 12.63 81%
APC WSF 7x3.8 1 8.8 7.55 66 9030 32.5 451 15.91 80%
APC WSF 7x3.8 1 9.8 8.9 87 9780 35.2 513 18.10 77%
APC WSF 7x3.8 1 10.8 10.3 111 10470 37.7 590 20.81 75%
Graupner SF 7x4 1 6.9 5.15 35 7500 28.4 277 9.77 84%
Graupner SF 7x4 1 6.9 5.15 35 7500 28.4 277 9.77 84%
Graupner SF 7x4 1 7.8 6.25 48 8310 31.5 346 12.20 83%
Graupner SF 7x4 1 7.8 6.25 48 8310 31.5 346 12.20 83%
Graupner SF 7x4 1 8.8 7.35 64 9120 34.5 420 14.82 80%
Graupner SF 7x4 1 8.8 7.35 64 9120 34.5 420 14.82 80%
Graupner SF 7x4 1 9.8 8.5 83 9930 37.6 497 17.53 79%
Graupner SF 7x4 1 9.8 8.5 83 9930 37.6 497 17.53 79%
Graupner SF 7x4 1 10.8 9.65 104 10650 40.3 573 20.21 76%
Graupner SF 7x4 1 10.8 9.65 104 10650 40.3 573 20.21 76%
EMP 7x4.5 1 6.8 7.05 47 6900 29.4 315 11.11 79%
EMP 7x4.5 1 6.8 7.05 47 6900 29.4 315 11.11 79%
EMP 7x4.5 1 7.9 8.55 67 7680 32.7 393 13.86 75%
EMP 7x4.5 1 7.9 8.55 67 7680 32.7 393 13.86 75%
EMP 7x4.5 1 8.8 9.95 87 8280 35.3 461 16.26 73%
EMP 7x4.5 1 8.8 9.95 87 8280 35.3 461 16.26 73%
EMP 7x4.5 1 9.8 11.35 111 8880 37.8 531 18.73 70%
EMP 7x4.5 1 9.8 11.35 111 8880 37.8 531 18.73 70%
EMP 7x4.5 1 10.8 12.9 139 9540 40.6 606 21.38 68%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
EMP 7x4.5 1 10.8 12.9 139 9540 40.6 606 21.38 68%
APC E 7x5 1 6.9 5.1 35 7530 35.6 247 8.71 85%
APC E 7x5 1 6.9 5.1 35 7530 35.6 247 8.71 85%
APC E 7x5 1 7.9 6.15 48 8370 39.6 311 10.97 82%
APC E 7x5 1 7.9 6.15 48 8370 39.6 311 10.97 82%
APC E 7x5 1 8.8 7.3 64 9150 43.3 378 13.33 81%
APC E 7x5 1 8.8 7.3 64 9150 43.3 378 13.33 81%
APC E 7x5 1 9.8 8.5 83 9930 47.0 455 16.05 79%
APC E 7x5 1 9.8 8.5 83 9930 47.0 455 16.05 79%
APC E 7x5 1 10.8 9.7 104 10650 50.4 526 18.55 76%
APC E 7x5 1 10.8 9.7 104 10650 50.4 526 18.55 76%
APC SF 7x6 1 6.9 5.95 41 7230 41.1 252 8.89 81%
APC SF 7x6 1 6.9 5.95 41 7230 41.1 252 8.89 81%
APC SF 7x6 1 7.8 7.3 56 7980 45.3 310 10.93 79%
APC SF 7x6 1 7.8 7.3 56 7980 45.3 310 10.93 79%
APC SF 7x6 1 8.8 8.65 76 8670 49.3 366 12.91 76%
APC SF 7x6 1 8.8 8.65 76 8670 49.3 366 12.91 76%
APC SF 7x6 1 9.8 10.15 99 9330 53.0 430 15.17 74%
APC SF 7x6 1 9.8 10.15 99 9330 53.0 430 15.17 74%
APC SF 7x6 1 10.7 11.5 123 9870 56.1 486 17.14 72%
APC SF 7x6 1 10.7 11.5 123 9870 56.1 486 17.14 72%
APC Sport 7x7 1 6.9 5.65 38 7320 48.5 229 8.08 82%
APC Sport 7x7 1 6.9 5.65 38 7320 48.5 229 8.08 82%
APC Sport 7x7 1 7.9 6.9 54 8190 54.3 287 10.12 80%
APC Sport 7x7 1 7.9 6.9 54 8190 54.3 287 10.12 80%
APC Sport 7x7 1 8.8 8 70 8910 59.1 340 11.99 78%
APC Sport 7x7 1 8.8 8 70 8910 59.1 340 11.99 78%
APC Sport 7x7 1 9.8 9.25 90 9660 64.0 401 14.14 76%
APC Sport 7x7 1 9.8 9.25 90 9660 64.0 401 14.14 76%
APC Sport 7x7 1 10.8 10.45 112 10320 68.4 457 16.12 74%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC Sport 7x7 1 10.8 10.45 112 10320 68.4 457 16.12 74%
APC Sport 7x7 1 14 14.9 208 12420 82.3 673 23.74 69%
APC Sport 7x7 1 14 14.9 208 12420 82.3 673 23.74 69%
GWS HD 8x4 1 6.9 5 34 7530 28.5 302 10.65 85%
GWS HD 8x4 1 6.9 5 34 7530 28.5 302 10.65 85%
GWS HD 8x4 1 7.9 6.1 48 8370 31.7 380 13.40 82%
GWS HD 8x4 1 7.9 6.1 48 8370 31.7 380 13.40 82%
GWS HD 8x4 1 8.8 7.25 63 9180 34.8 457 16.12 81%
GWS HD 8x4 1 8.8 7.25 63 9180 34.8 457 16.12 81%
GWS HD 8x4 1 9.8 8.4 82 9960 37.7 541 19.08 79%
GWS HD 8x4 1 9.8 8.4 82 9960 37.7 541 19.08 79%
GWS HD 8x4 1 10.8 9.7 104 10620 40.2 626 22.08 76%
GWS HD 8x4 1 10.8 9.7 104 10620 40.2 626 22.08 76%
Graupner SF 8x4.5 1 6.9 7.7 53 6720 28.6 387 13.65 75%
Graupner SF 8x4.5 1 6.9 7.7 53 6720 28.6 387 13.65 75%
Graupner SF 8x4.5 1 7.8 9.15 71 7410 31.6 477 16.83 74%
Graupner SF 8x4.5 1 7.8 9.15 71 7410 31.6 477 16.83 74%
Graupner SF 8x4.5 1 8.8 10.7 94 8070 34.4 559 19.72 71%
Graupner SF 8x4.5 1 8.8 10.7 94 8070 34.4 559 19.72 71%
Graupner SF 8x4.5 1 9.8 12 117 8610 36.7 630 22.22 68%
Graupner SF 8x4.5 1 9.8 12 117 8610 36.7 630 22.22 68%
Graupner SF 8x4.5 1 10.7 13.4 143 9030 38.5 720 25.40 65%
Graupner SF 8x4.5 1 10.7 13.4 143 9030 38.5 720 25.40 65%
GWS HD 9x5 1 6.9 7.9 54 6660 31.5 433 15.27 75%
GWS HD 9x5 1 6.9 7.9 54 6660 31.5 433 15.27 75%
GWS HD 9x5 1 7.8 9.35 72 7290 34.5 520 18.34 72%
GWS HD 9x5 1 7.8 9.35 72 7290 34.5 520 18.34 72%
GWS HD 9x5 1 8.8 11 96 7920 37.5 620 21.87 70%
GWS HD 9x5 1 8.8 11 96 7920 37.5 620 21.87 70%
GWS HD 9x5 1 9.8 12.6 123 8460 40.1 709 25.01 67%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 9x5 1 9.8 12.6 123 8460 40.1 709 25.01 67%
GWS HD 9x5 1 10.7 14.1 150 8910 42.2 798 28.15 65%
GWS HD 9x5 1 10.7 14.1 150 8910 42.2 798 28.15 65%
