KEDA - TR2834/10



Specifications

  • Type: Outrunner
  • Weight: 71.00g (2.50oz)
  • Diameter: 28.00mm (1.10in)
  • Length: 34.00mm (1.34in)
  • Shaft Diameter: 3.17mm (0.12in)
  • Maximum Amps: 25

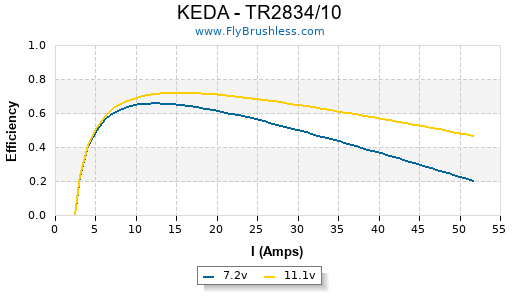

Constants

  • kV: 1860
  • Rm: 0.11
  • Io: 2.35



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 1.85 12546
8 2 14285
10 2.35 18100

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
Zagi Carbon 5.1x4.9 1 6.9 6.25 43 11670 54.1 192 6.77 91%
Zagi Carbon 5.1x4.9 1 7.9 7.5 59 13080 60.7 242 8.54 89%
Zagi Carbon 5.1x4.9 1 8.8 9.4 82 14700 68.2 308 10.86 90%
Zagi Carbon 5.1x4.9 1 9.8 10.8 105 16110 74.8 373 13.16 88%
Zagi Carbon 5.1x4.9 1 10.7 12.45 133 17400 80.7 435 15.34 87%
Zagi Carbon 5.1x4.9 1 14.4 19.6 282 22110 102.6 706 24.90 83%
APC E 6x4 1 6.9 7.6 52 11400 43.2 252 8.89 89%
APC E 6x4 1 7.8 9.55 74 12810 48.5 320 11.29 88%
APC E 6x4 1 8.8 11.1 97 14160 53.6 401 14.14 87%
APC E 6x4 1 9.7 13.35 129 15540 58.9 495 17.46 86%
APC E 6x4 1 10.7 16 171 16650 63.1 576 20.32 84%
EMP 6x4 1 6.8 8.1 55 11190 42.4 306 10.79 88%
EMP 6x4 1 7.8 10.35 80 12600 47.7 389 13.72 87%
EMP 6x4 1 8.7 11.9 103 13890 52.6 471 16.61 86%
EMP 6x4 1 9.7 14.65 142 15330 58.1 577 20.35 85%
EMP 6x4 1 10.7 18.7 200 16020 60.7 688 24.27 80%
EMP 6x5 1 6.9 7.05 48 11520 54.5 252 8.89 90%
EMP 6x5 1 7.8 8.6 67 12900 61.1 332 11.71 89%
EMP 6x5 1 8.8 10.2 89 14280 67.6 419 14.78 87%
EMP 6x5 1 9.7 12.2 118 15780 74.7 527 18.59 87%
EMP 6x5 1 10.7 14 149 17010 80.5 623 21.98 85%
APC E 6x5.5 1 6.8 10 68 10830 56.4 264 9.31 86%
APC E 6x5.5 1 7.8 11.9 92 12150 63.3 337 11.89 84%
APC E 6x5.5 1 8.7 14 121 13440 70.0 418 14.74 83%
APC E 6x5.5 1 9.7 16.4 159 14820 77.2 514 18.13 82%
APC E 6x5.5 1 10.6 18.6 197 15990 83.3 597 21.06 81%
APC E 7x5 1 6.8 13.6 92 10200 48.3 474 16.72 81%
APC E 7x5 1 7.7 16.4 126 11250 53.3 581 20.49 79%
APC E 7x5 1 8.7 19.6 170 12270 58.1 701 24.73 76%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC E 7x5 1 9.6 22.7 217 13290 62.9 822 29.00 74%
APC E 7x5 1 11 28.4 312 14550 68.9 1052 37.11 71%
