Suppo - A2212-6 Gold



Specifications

  • Type: Outrunner
  • Weight: 51.00g (1.80oz)
  • Diameter: 27.60mm (1.09in)
  • Length: 27.20mm (1.07in)
  • Shaft Diameter: 3.00mm (0.12in)
  • Maximum Amps: 28

Constants

  • kV: 2315
  • Rm: 0.1
  • Io: 2.25



Io Test Data

Dr Kiwi test results
Volts Amps RPM
10 2.25 22650

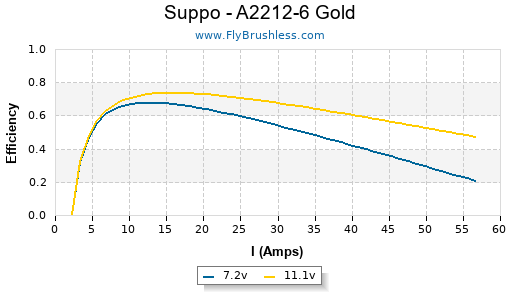

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC E 4.75x5.5 1 6.9 9.8 67 14010 73.0 185 6.53 88%
APC E 4.75x5.5 1 7.8 12 93 15600 81.2 232 8.18 86%
APC E 4.75x5.5 1 8.8 14.4 126 16890 88.0 277 9.77 83%
APC E 4.75x5.5 1 9.8 17.5 171 18750 97.7 329 11.61 83%
APC E 4.75x5.5 1 10.8 20.1 217 20190 105.2 385 13.58 81%
APC E 5x5 1 6.8 9.7 65 13560 64.2 191 6.74 86%
APC E 5x5 1 6.8 9.7 65 13560 64.2 191 6.74 86%
APC E 5x5 1 6.9 10.5 72 14400 68.2 217 7.65 90%
APC E 5x5 1 7.8 12.15 94 15330 72.6 249 8.78 85%
APC E 5x5 1 7.8 12.15 94 15330 72.6 249 8.78 85%
APC E 5x5 1 7.9 12.6 99 16020 75.8 269 9.49 88%
APC E 5x5 1 8.8 14.95 131 17520 83.0 329 11.61 86%
APC E 5x5 1 9.7 17.4 168 18930 89.6 380 13.40 84%
APC E 5x5 1 10.6 19.8 209 20310 96.2 446 15.73 83%
APC E 5x5 1 10.8 21.8 235 20070 95.0 433 15.27 80%
APC E 5x5 1 10.8 21.8 235 20070 95.0 433 15.27 80%
Zagi Carbon 5.1x4.9 1 6.9 9.75 67 14160 65.7 285 10.05 89%
Zagi Carbon 5.1x4.9 1 7.9 12.05 95 15780 73.2 362 12.77 86%
Zagi Carbon 5.1x4.9 1 8.8 14.5 127 17340 80.5 440 15.52 85%
Zagi Carbon 5.1x4.9 1 9.8 17.1 167 18900 87.7 521 18.38 83%
Zagi Carbon 5.1x4.9 1 10.7 20.5 219 20340 94.4 608 21.45 82%
APC E 5.25x4.75 1 6.8 10.3 70 13860 62.3 266 9.38 88%
APC E 5.25x4.75 1 7.8 12.65 98 15420 69.4 334 11.78 85%
APC E 5.25x4.75 1 8.8 15.3 134 17040 76.7 404 14.25 84%
APC E 5.25x4.75 1 9.7 18.25 177 18390 82.7 465 16.40 82%
APC E 5.25x4.75 1 10.7 21.5 230 19950 89.7 554 19.54 81%
APC E 5.5x4.5 1 6.9 11.8 81 13680 58.3 281 9.91 86%
APC E 5.5x4.5 1 7.8 13.7 106 15000 63.9 335 11.82 83%
APC E 5.5x4.5 1 7.8 13.7 106 15000 63.9 335 11.82 83%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC E 5.5x4.5 1 7.8 14.55 113 15240 64.9 358 12.63 84%
APC E 5.5x4.5 1 8.8 17.2 151 16650 71.0 428 15.10 82%
APC E 5.5x4.5 1 9.8 20.3 198 18090 77.1 516 18.20 80%
APC E 5.5x4.5 1 10.6 22.7 240 19110 81.4 544 19.19 78%
APC E 5.5x4.5 1 10.6 22.7 240 19110 81.4 544 19.19 78%
APC E 5.5x4.5 1 10.7 24.1 257 19590 83.5 606 21.38 79%
APC E 6x4 1 6.8 11.65 79 13680 51.8 389 13.72 87%
APC E 6x4 1 7.8 14.5 113 15210 57.6 490 17.28 84%
APC E 6x4 1 8.8 17.25 151 16710 63.3 600 21.16 82%
APC E 6x4 1 9.8 20.3 198 18090 68.5 713 25.15 80%
APC E 6x4 1 10.7 24.6 263 19410 73.5 837 29.52 78%
