KEDA - TR2834/12



Specifications

  • Type: Outrunner
  • Weight: 70.00g (2.47oz)
  • Diameter: 28.00mm (1.10in)
  • Length: 34.00mm (1.34in)
  • Shaft Diameter: 3.17mm (0.12in)
  • Maximum Amps: 25

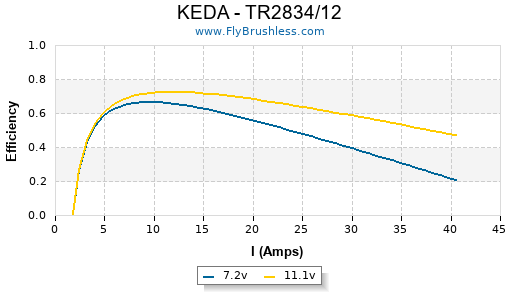

Constants

  • kV: 1550
  • Rm: 0.14
  • Io: 1.75



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 1.35 10400
8 1.45 11850
10 1.75 15090

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC Sport 6.5x6.5 1 6.8 8 54 8910 54.8 203 7.16 85%
APC Sport 6.5x6.5 1 7.8 9.85 76 10050 61.9 260 9.17 83%
APC Sport 6.5x6.5 1 8.7 12 104 11250 69.2 317 11.18 83%
APC Sport 6.5x6.5 1 9.7 13.3 129 12300 75.7 398 14.04 82%
APC Sport 6.5x6.5 1 10.7 15.4 164 13130 80.8 470 16.58 79%
APC E 7x5 1 6.8 8.5 57 8760 41.5 341 12.03 83%
APC E 7x5 1 7.7 10.7 82 9900 46.9 447 15.77 83%
APC E 7x5 1 8.7 12.7 110 10920 51.7 542 19.12 81%
APC E 7x5 1 9.7 14.8 143 11850 56.1 647 22.82 79%
APC E 7x5 1 10.6 17.4 184 12780 60.5 764 26.95 78%
GWS HD 8x4 1 6.8 8.55 58 8820 33.4 420 14.82 84%
GWS HD 8x4 1 7.8 10.7 83 9930 37.6 531 18.73 82%
GWS HD 8x4 1 8.7 13.1 113 10890 41.2 640 22.58 81%
GWS HD 8x4 1 9.6 15.35 147 11850 44.9 781 27.55 80%
GWS HD 8x4 1 10.6 17.7 187 12660 48.0 904 31.89 77%
GWS HD 9x5 1 6.7 13.45 90 7920 37.5 613 21.62 76%
GWS HD 9x5 1 7.7 16.35 125 8760 41.5 759 26.77 73%
GWS HD 9x5 1 8.7 19.8 172 9600 45.5 919 32.42 71%
GWS HD 9x5 1 9.7 22.7 220 10200 48.3 1059 37.36 68%
GWS HD 9x5 1 11.1 28.4 315 11110 52.6 1293 45.61 65%
