KEDA - TR2834/22
Specifications
- Type: Outrunner
- Weight: 71.00g (2.50oz)
- Diameter: 28.00mm (1.10in)
- Length: 34.00mm (1.34in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 15

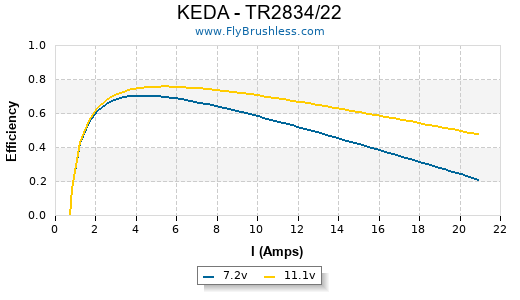

Constants
- kV: 860
- Rm: 0.27
- Io: 0.7
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.6 | 5940 |
| 8 | 0.65 | 6780 |
| 10 | 0.7 | 8460 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 9x5 | 1 | 6.9 | 3.7 | 25 | 5280 | 25.0 | 263 | 9.28 | 89% |
| GWS HD 9x5 | 1 | 7.9 | 4.55 | 35 | 5940 | 28.1 | 339 | 11.96 | 87% |
| GWS HD 9x5 | 1 | 8.9 | 5.4 | 48 | 6570 | 31.1 | 416 | 14.67 | 86% |
| GWS HD 9x5 | 1 | 9.9 | 6.3 | 62 | 7140 | 33.8 | 499 | 17.60 | 84% |
| GWS HD 9x5 | 1 | 10.9 | 7.3 | 79 | 7710 | 36.5 | 580 | 20.46 | 82% |
| GWS HD 9x5 | 1 | 14 | 10.55 | 147 | 9440 | 44.7 | 870 | 30.69 | 78% |
| GWS HD 10x6 | 1 | 6.9 | 5 | 34 | 4980 | 28.3 | 340 | 11.99 | 84% |
| GWS HD 10x6 | 1 | 7.9 | 6.1 | 48 | 5580 | 31.7 | 428 | 15.10 | 82% |
| GWS HD 10x6 | 1 | 8.8 | 7.25 | 63 | 6090 | 34.6 | 518 | 18.27 | 80% |
| GWS HD 10x6 | 1 | 9.8 | 8.35 | 81 | 6630 | 37.7 | 607 | 21.41 | 79% |
| GWS HD 10x6 | 1 | 10.8 | 9.7 | 104 | 7110 | 40.4 | 710 | 25.04 | 77% |
| GWS HD 11x7 | 1 | 6.8 | 7.05 | 47 | 4590 | 30.4 | 454 | 16.01 | 78% |
| GWS HD 11x7 | 1 | 7.8 | 8.5 | 66 | 5040 | 33.4 | 560 | 19.75 | 75% |
| GWS HD 11x7 | 1 | 8.8 | 9.9 | 87 | 5520 | 36.6 | 668 | 23.56 | 73% |
| GWS HD 11x7 | 1 | 9.8 | 11.4 | 111 | 5940 | 39.4 | 769 | 27.13 | 70% |
| GWS HD 11x7 | 1 | 10.7 | 12.7 | 135 | 6270 | 41.6 | 864 | 30.48 | 68% |
| GWS HD 12x6 | 1 | 6.9 | 7.85 | 54 | 4440 | 25.2 | 505 | 17.81 | 75% |
| GWS HD 12x6 | 1 | 7.8 | 9.3 | 72 | 4860 | 27.6 | 613 | 21.62 | 72% |
| GWS HD 12x6 | 1 | 8.8 | 10.8 | 95 | 5280 | 30.0 | 720 | 25.40 | 70% |
| GWS HD 12x6 | 1 | 9.8 | 12.3 | 120 | 5670 | 32.2 | 834 | 29.42 | 67% |
| GWS HD 12x6 | 1 | 10.7 | 13.7 | 146 | 6000 | 34.1 | 934 | 32.95 | 65% |
| GWS HD 12x8 | 1 | 6.8 | 9.3 | 63 | 4110 | 31.1 | 534 | 18.84 | 70% |
| GWS HD 12x8 | 1 | 7.8 | 11.05 | 86 | 4500 | 34.1 | 644 | 22.72 | 67% |
| GWS HD 12x8 | 1 | 8.7 | 12.8 | 111 | 4830 | 36.6 | 740 | 26.10 | 65% |
| GWS HD 12x8 | 1 | 9.7 | 14.4 | 139 | 5130 | 38.9 | 845 | 29.81 | 61% |
| GWS HD 12x8 | 1 | 10.7 | 16 | 171 | 5370 | 40.7 | 930 | 32.80 | 58% |
