KEDA - TR2826/14
Specifications
- Type: Outrunner
- Weight: 48.00g (1.69oz)
- Diameter: 28.00mm (1.10in)
- Length: 26.00mm (1.02in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 30

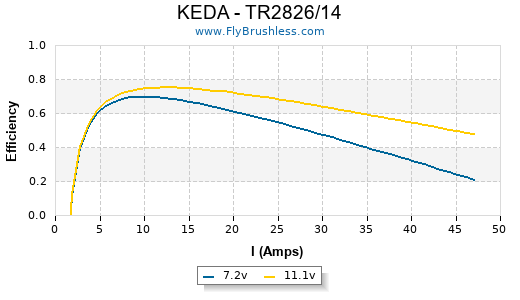

Constants
- kV: 2315
- Rm: 0.12
- Io: 1.65
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 1.3 | 16050 |
| 8 | 1.4 | 18180 |
| 10 | 1.65 | 22680 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 4.1x4.1 | 1 | 6.9 | 4.7 | 32 | 15030 | 58.4 | 129 | 4.55 | 94% |
| APC E 4.1x4.1 | 1 | 6.9 | 4.7 | 32 | 15030 | 58.4 | 129 | 4.55 | 94% |
| APC E 4.1x4.1 | 1 | 7.9 | 5.75 | 45 | 16860 | 65.5 | 166 | 5.86 | 92% |
| APC E 4.1x4.1 | 1 | 7.9 | 5.75 | 45 | 16860 | 65.5 | 166 | 5.86 | 92% |
| APC E 4.1x4.1 | 1 | 8.9 | 6.9 | 61 | 18750 | 72.8 | 205 | 7.23 | 91% |
| APC E 4.1x4.1 | 1 | 8.9 | 6.9 | 61 | 18750 | 72.8 | 205 | 7.23 | 91% |
| APC E 4.1x4.1 | 1 | 9.9 | 8.15 | 80 | 20640 | 80.1 | 248 | 8.75 | 90% |
| APC E 4.1x4.1 | 1 | 9.9 | 8.15 | 80 | 20640 | 80.1 | 248 | 8.75 | 90% |
| APC E 4.1x4.1 | 1 | 10.8 | 9.4 | 101 | 22230 | 86.3 | 287 | 10.12 | 89% |
| APC E 4.1x4.1 | 1 | 10.8 | 9.4 | 101 | 22230 | 86.3 | 287 | 10.12 | 89% |
| EMP 4.1x4.1 | 1 | 6.9 | 5.7 | 39 | 14700 | 57.1 | 144 | 5.08 | 92% |
| EMP 4.1x4.1 | 1 | 6.9 | 5.7 | 39 | 14700 | 57.1 | 144 | 5.08 | 92% |
| EMP 4.1x4.1 | 1 | 7.9 | 7.1 | 56 | 16590 | 64.4 | 184 | 6.49 | 91% |
| EMP 4.1x4.1 | 1 | 7.9 | 7.1 | 56 | 16590 | 64.4 | 184 | 6.49 | 91% |
| EMP 4.1x4.1 | 1 | 8.8 | 8.35 | 73 | 18360 | 71.3 | 225 | 7.94 | 90% |
| EMP 4.1x4.1 | 1 | 8.8 | 8.35 | 73 | 18360 | 71.3 | 225 | 7.94 | 90% |
| EMP 4.1x4.1 | 1 | 9.9 | 9.95 | 98 | 20010 | 77.7 | 272 | 9.59 | 87% |
| EMP 4.1x4.1 | 1 | 9.9 | 9.95 | 98 | 20010 | 77.7 | 272 | 9.59 | 87% |
| EMP 4.1x4.1 | 1 | 10.8 | 11.45 | 123 | 21630 | 84.0 | 317 | 11.18 | 87% |
| EMP 4.1x4.1 | 1 | 10.8 | 11.45 | 123 | 21630 | 84.0 | 317 | 11.18 | 87% |
| EMP 4.5x4.5 | 1 | 6.9 | 6.7 | 46 | 14490 | 61.8 | 210 | 7.41 | 91% |
| EMP 4.5x4.5 | 1 | 6.9 | 6.7 | 46 | 14490 | 61.8 | 210 | 7.41 | 91% |
| EMP 4.5x4.5 | 1 | 7.8 | 8.3 | 64 | 16200 | 69.0 | 269 | 9.49 | 90% |
| EMP 4.5x4.5 | 1 | 7.8 | 8.3 | 64 | 16200 | 69.0 | 269 | 9.49 | 90% |
| EMP 4.5x4.5 | 1 | 8.8 | 9.8 | 86 | 17790 | 75.8 | 329 | 11.61 | 87% |
| EMP 4.5x4.5 | 1 | 8.8 | 9.8 | 86 | 17790 | 75.8 | 329 | 11.61 | 87% |
| EMP 4.5x4.5 | 1 | 9.7 | 11.6 | 112 | 19440 | 82.8 | 394 | 13.90 | 87% |
| EMP 4.5x4.5 | 1 | 9.7 | 11.6 | 112 | 19440 | 82.8 | 394 | 13.90 | 87% |
| EMP 4.5x4.5 | 1 | 10.7 | 13.75 | 147 | 20910 | 89.1 | 457 | 16.12 | 84% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| EMP 4.5x4.5 | 1 | 10.7 | 13.75 | 147 | 20910 | 89.1 | 457 | 16.12 | 84% |
| Graupner CAM 4.7x4.7 | 1 | 6.8 | 7.8 | 53 | 14160 | 63.0 | 190 | 6.70 | 90% |
| Graupner CAM 4.7x4.7 | 1 | 6.8 | 7.8 | 53 | 14160 | 63.0 | 190 | 6.70 | 90% |
| Graupner CAM 4.7x4.7 | 1 | 7.8 | 9.4 | 73 | 15840 | 70.5 | 240 | 8.47 | 88% |
| Graupner CAM 4.7x4.7 | 1 | 7.8 | 9.4 | 73 | 15840 | 70.5 | 240 | 8.47 | 88% |
| Graupner CAM 4.7x4.7 | 1 | 8.8 | 11.2 | 98 | 17460 | 77.7 | 294 | 10.37 | 86% |
| Graupner CAM 4.7x4.7 | 1 | 8.8 | 11.2 | 98 | 17460 | 77.7 | 294 | 10.37 | 86% |
| Graupner CAM 4.7x4.7 | 1 | 9.7 | 13 | 126 | 19050 | 84.8 | 349 | 12.31 | 85% |
| Graupner CAM 4.7x4.7 | 1 | 9.7 | 13 | 126 | 19050 | 84.8 | 349 | 12.31 | 85% |
| Graupner CAM 4.7x4.7 | 1 | 10.7 | 15 | 160 | 20490 | 91.2 | 408 | 14.39 | 83% |
| Graupner CAM 4.7x4.7 | 1 | 10.7 | 15 | 160 | 20490 | 91.2 | 408 | 14.39 | 83% |
| Graupner CAM 4.7x4.7 | 1 | 14 | 22.6 | 316 | 25410 | 113.1 | 620 | 21.87 | 78% |
| Graupner CAM 4.7x4.7 | 1 | 14 | 22.6 | 316 | 25410 | 113.1 | 620 | 21.87 | 78% |
| Zagi Carbon 5.1x4.9 | 1 | 6.8 | 9.2 | 62 | 13800 | 64.0 | 272 | 9.59 | 88% |
| Zagi Carbon 5.1x4.9 | 1 | 6.8 | 9.2 | 62 | 13800 | 64.0 | 272 | 9.59 | 88% |
| Zagi Carbon 5.1x4.9 | 1 | 7.8 | 11.35 | 88 | 15300 | 71.0 | 343 | 12.10 | 85% |
| Zagi Carbon 5.1x4.9 | 1 | 7.8 | 11.35 | 88 | 15300 | 71.0 | 343 | 12.10 | 85% |
| Zagi Carbon 5.1x4.9 | 1 | 8.8 | 13.4 | 117 | 16800 | 78.0 | 410 | 14.46 | 82% |
| Zagi Carbon 5.1x4.9 | 1 | 8.8 | 13.4 | 117 | 16800 | 78.0 | 410 | 14.46 | 82% |
| Zagi Carbon 5.1x4.9 | 1 | 9.7 | 15.8 | 153 | 18210 | 84.5 | 488 | 17.21 | 81% |
| Zagi Carbon 5.1x4.9 | 1 | 9.7 | 15.8 | 153 | 18210 | 84.5 | 488 | 17.21 | 81% |
| Zagi Carbon 5.1x4.9 | 1 | 10.7 | 18.3 | 195 | 19620 | 91.0 | 570 | 20.11 | 79% |
| Zagi Carbon 5.1x4.9 | 1 | 10.7 | 18.3 | 195 | 19620 | 91.0 | 570 | 20.11 | 79% |
| APC E 6x4 | 1 | 6.8 | 10.8 | 73 | 13260 | 50.2 | 347 | 12.24 | 84% |
| APC E 6x4 | 1 | 6.8 | 10.8 | 73 | 13260 | 50.2 | 347 | 12.24 | 84% |
| APC E 6x4 | 1 | 7.8 | 13.3 | 103 | 14820 | 56.1 | 442 | 15.59 | 82% |
| APC E 6x4 | 1 | 7.8 | 13.3 | 103 | 14820 | 56.1 | 442 | 15.59 | 82% |
| APC E 6x4 | 1 | 8.7 | 15.8 | 137 | 16230 | 61.5 | 534 | 18.84 | 81% |
| APC E 6x4 | 1 | 8.7 | 15.8 | 137 | 16230 | 61.5 | 534 | 18.84 | 81% |
| APC E 6x4 | 1 | 9.6 | 18.4 | 176 | 17520 | 66.4 | 631 | 22.26 | 79% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| APC E 6x4 | 1 | 9.6 | 18.4 | 176 | 17520 | 66.4 | 631 | 22.26 | 79% |
| APC E 6x4 | 1 | 10.6 | 21 | 222 | 18750 | 71.0 | 732 | 25.82 | 76% |
| APC E 6x4 | 1 | 10.6 | 21 | 222 | 18750 | 71.0 | 732 | 25.82 | 76% |
| EMP 6x4 | 1 | 7.9 | 12.9 | 101 | 15060 | 57.0 | 491 | 17.32 | 82% |
| EMP 6x4 | 1 | 10.8 | 20.1 | 217 | 19110 | 72.4 | 788 | 27.80 | 76% |
| EMP 6x4 | 1 | 11.2 | 21.9 | 245 | 19530 | 74.0 | 858 | 30.27 | 75% |
| EMP 6x5 | 1 | 7.9 | 12.9 | 101 | 15060 | 71.3 | 491 | 17.32 | 82% |
| EMP 6x5 | 1 | 10.8 | 20.1 | 217 | 19110 | 90.5 | 788 | 27.80 | 76% |
| EMP 6x5 | 1 | 11.2 | 21.9 | 245 | 19530 | 92.5 | 858 | 30.27 | 75% |
| APC E 7x5 | 1 | 7.6 | 23.4 | 177 | 12060 | 57.1 | 684 | 24.13 | 69% |
| APC E 7x5 | 1 | 7.6 | 23.4 | 177 | 12060 | 57.1 | 684 | 24.13 | 69% |
| APC E 7x5 | 1 | 10.5 | 36 | 378 | 14850 | 70.3 | 1030 | 36.33 | 61% |
| APC E 7x5 | 1 | 10.5 | 36 | 378 | 14850 | 70.3 | 1030 | 36.33 | 61% |
