SuperTigre - ST .10
Specifications
- Type: Outrunner
- Weight: 69.00g (2.43oz)
- Diameter: 35.00mm (1.38in)
- Length: 30.00mm (1.18in)
- Shaft Diameter: 4.00mm (0.16in)
- Maximum Amps: 25

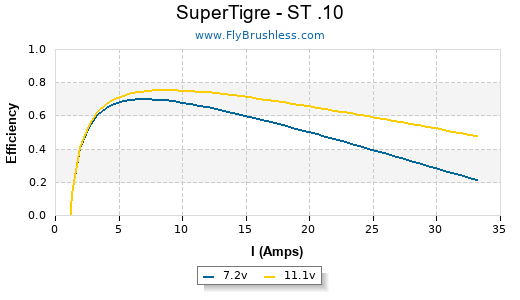

Constants
- kV: 1205
- Rm: 0.17
- Io: 1.15
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.95 | 8310 |
| 8 | 1 | 9510 |
| 10 | 1.15 | 11820 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 8x4 | 1 | 6.9 | 5 | 34 | 7440 | 28.2 | 288 | 10.16 | 89% |
| GWS HD 8x4 | 1 | 7.9 | 6.1 | 48 | 8340 | 31.6 | 364 | 12.84 | 88% |
| GWS HD 8x4 | 1 | 8.9 | 7.45 | 66 | 9360 | 35.5 | 452 | 15.94 | 87% |
| GWS HD 8x4 | 1 | 9.9 | 8.85 | 87 | 10230 | 38.8 | 543 | 19.15 | 86% |
| GWS HD 8x4 | 1 | 10.8 | 10.2 | 110 | 10980 | 41.6 | 645 | 22.75 | 84% |
| GWS HD 9x5 | 1 | 6.8 | 8.1 | 55 | 6780 | 32.1 | 444 | 15.66 | 83% |
| GWS HD 9x5 | 1 | 7.8 | 9.9 | 77 | 7590 | 35.9 | 557 | 19.65 | 81% |
| GWS HD 9x5 | 1 | 8.8 | 11.7 | 102 | 8310 | 39.4 | 667 | 23.53 | 78% |
| GWS HD 9x5 | 1 | 9.8 | 13.85 | 135 | 9030 | 42.8 | 797 | 28.11 | 76% |
| GWS HD 9x5 | 1 | 10.7 | 16.2 | 173 | 9690 | 45.9 | 924 | 32.59 | 75% |
| GWS HD 10x6 | 1 | 6.8 | 10.65 | 72 | 6360 | 36.1 | 544 | 19.19 | 78% |
| GWS HD 10x6 | 1 | 7.8 | 12.75 | 99 | 7050 | 40.1 | 660 | 23.28 | 75% |
| GWS HD 10x6 | 1 | 8.8 | 15.25 | 134 | 7680 | 43.6 | 780 | 27.51 | 72% |
| GWS HD 10x6 | 1 | 9.7 | 17.65 | 171 | 8280 | 47.0 | 923 | 32.56 | 71% |
| GWS HD 10x6 | 1 | 10.7 | 19.9 | 212 | 8790 | 49.9 | 1032 | 36.40 | 68% |
| APC E 10x7 | 1 | 7.7 | 15.35 | 118 | 6450 | 42.8 | 660 | 23.28 | 70% |
| APC E 10x7 | 1 | 10.6 | 21.9 | 232 | 7890 | 52.3 | 996 | 35.13 | 62% |
| APC E 10x7 | 1 | 10.7 | 22.4 | 239 | 8010 | 53.1 | 1008 | 35.56 | 62% |
| APC E 10x7 | 1 | 10.9 | 23.7 | 258 | 8190 | 54.3 | 1063 | 37.50 | 62% |
| APC E 11x5.5 | 1 | 7.7 | 16.2 | 124 | 6270 | 32.7 | 752 | 26.53 | 68% |
| APC E 11x5.5 | 1 | 10.8 | 23.5 | 253 | 7590 | 39.5 | 1125 | 39.68 | 58% |
| APC E 11x5.5 | 1 | 10.9 | 24.5 | 267 | 7710 | 40.2 | 1165 | 41.09 | 59% |
| APC E 11x5.5 | 1 | 11.1 | 26.9 | 298 | 7860 | 40.9 | 1225 | 43.21 | 59% |
| GWS HD 11x7 | 1 | 7.7 | 17.6 | 135 | 6060 | 40.2 | 814 | 28.71 | 65% |
| GWS HD 11x7 | 1 | 10.8 | 25.4 | 274 | 7170 | 47.5 | 1108 | 39.08 | 55% |
| GWS HD 11x7 | 1 | 10.9 | 26.4 | 287 | 7350 | 48.7 | 1203 | 42.43 | 56% |
| GWS HD 11x7 | 1 | 11.1 | 28.4 | 315 | 7620 | 50.5 | 1280 | 45.15 | 57% |
Comments
Dr Kiwi on 2010-12-22 13:43:28
This s a 12-arm, 14-magnet motor
