SuperTigre - ST400


SuperTigre - ST400

Specifications

  • Type: Outrunner
  • Weight: 52.00g (1.83oz)
  • Diameter: 28.00mm (1.10in)
  • Length: 30.00mm (1.18in)
  • Shaft Diameter: 3.00mm (0.12in)
  • Maximum Amps: 15

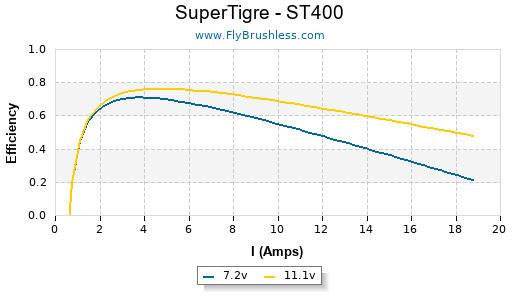

Constants

  • kV: 910
  • Rm: 0.3
  • Io: 0.6



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 0.5 6320
8 0.55 7190
10 0.6 8958

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
Zagi Carbon 5.1x4.9 1 6.9 1.2 8 6154 28.6 52 1.83 98%
Zagi Carbon 5.1x4.9 1 6.9 1.2 8 6154 28.6 52 1.83 98%
Zagi Carbon 5.1x4.9 1 7.9 1.4 11 6975 32.4 67 2.36 97%
Zagi Carbon 5.1x4.9 1 7.9 1.4 11 6975 32.4 67 2.36 97%
Zagi Carbon 5.1x4.9 1 8.9 1.6 14 7760 36.0 85 3.00 96%
Zagi Carbon 5.1x4.9 1 8.9 1.6 14 7760 36.0 85 3.00 96%
Zagi Carbon 5.1x4.9 1 9.9 1.9 18 8600 39.9 105 3.70 95%
Zagi Carbon 5.1x4.9 1 9.9 1.9 18 8600 39.9 105 3.70 95%
Zagi Carbon 5.1x4.9 1 10.9 2.2 23 9540 44.3 129 4.55 96%
Zagi Carbon 5.1x4.9 1 10.9 2.2 23 9540 44.3 129 4.55 96%
GWS HD 8x4 1 6.9 2.4 16 5790 21.9 172 6.07 92%
GWS HD 8x4 1 6.9 2.4 16 5790 21.9 172 6.07 92%
GWS HD 8x4 1 7.9 2.9 22 6540 24.8 216 7.62 91%
GWS HD 8x4 1 7.9 2.9 22 6540 24.8 216 7.62 91%
GWS HD 8x4 1 8.9 3.45 30 7230 27.4 270 9.52 89%
GWS HD 8x4 1 8.9 3.45 30 7230 27.4 270 9.52 89%
GWS HD 8x4 1 9.9 4.1 40 7980 30.2 333 11.75 89%
GWS HD 8x4 1 9.9 4.1 40 7980 30.2 333 11.75 89%
GWS HD 8x4 1 10.9 4.7 51 8640 32.7 396 13.97 87%
GWS HD 8x4 1 10.9 4.7 51 8640 32.7 396 13.97 87%
APC SF 8x6 1 6.9 4.9 33 5130 29.1 253 8.92 82%
APC SF 8x6 1 6.9 4.9 33 5130 29.1 253 8.92 82%
APC SF 8x6 1 7.9 6.1 48 5670 32.2 315 11.11 79%
APC SF 8x6 1 7.9 6.1 48 5670 32.2 315 11.11 79%
APC SF 8x6 1 8.8 7.25 63 6180 35.1 378 13.33 77%
APC SF 8x6 1 8.8 7.25 63 6180 35.1 378 13.33 77%
APC SF 8x6 1 9.8 8.65 84 6630 37.7 441 15.56 74%
APC SF 8x6 1 9.8 8.65 84 6630 37.7 441 15.56 74%
APC SF 8x6 1 10.8 10.1 109 7050 40.1 510 17.99 72%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC SF 8x6 1 10.8 10.1 109 7050 40.1 510 17.99 72%
APC SF 9x3.8 1 6.9 4.2 28 5340 19.2 282 9.95 85%
APC SF 9x3.8 1 6.9 4.2 28 5340 19.2 282 9.95 85%
APC SF 9x3.8 1 7.9 5.25 41 5970 21.5 355 12.52 83%
APC SF 9x3.8 1 7.9 5.25 41 5970 21.5 355 12.52 83%
APC SF 9x3.8 1 8.9 6.35 56 6480 23.3 437 15.41 80%
APC SF 9x3.8 1 8.9 6.35 56 6480 23.3 437 15.41 80%
APC SF 9x3.8 1 9.8 7.6 74 7020 25.3 528 18.62 79%
APC SF 9x3.8 1 9.8 7.6 74 7020 25.3 528 18.62 79%
APC SF 9x3.8 1 10.8 8.8 95 7440 26.8 621 21.91 76%
APC SF 9x3.8 1 10.8 8.8 95 7440 26.8 621 21.91 76%
GWS HD 9x5 1 6.9 3.95 27 5520 26.1 272 9.59 88%
GWS HD 9x5 1 6.9 3.95 27 5520 26.1 272 9.59 88%
GWS HD 9x5 1 7.9 4.75 37 6300 29.8 341 12.03 88%
GWS HD 9x5 1 7.9 4.75 37 6300 29.8 341 12.03 88%
GWS HD 9x5 1 8.9 5.7 50 6660 31.5 418 14.74 82%
GWS HD 9x5 1 8.9 5.7 50 6660 31.5 418 14.74 82%
GWS HD 9x5 1 9.9 6.75 66 7230 34.2 510 17.99 80%
GWS HD 9x5 1 9.9 6.75 66 7230 34.2 510 17.99 80%
GWS HD 9x5 1 10.8 7.7 83 7770 36.8 584 20.60 79%
GWS HD 9x5 1 10.8 7.7 83 7770 36.8 584 20.60 79%
APC SF 9x6 1 6.9 6.45 44 4740 26.9 331 11.68 75%
APC SF 9x6 1 6.9 6.45 44 4740 26.9 331 11.68 75%
APC SF 9x6 1 7.8 7.9 61 5190 29.5 403 14.22 73%
APC SF 9x6 1 7.8 7.9 61 5190 29.5 403 14.22 73%
APC SF 9x6 1 8.8 9.55 84 5610 31.9 482 17.00 70%
APC SF 9x6 1 8.8 9.55 84 5610 31.9 482 17.00 70%
APC SF 9x6 1 9.7 11.2 108 5970 33.9 550 19.40 68%
APC SF 9x6 1 9.7 11.2 108 5970 33.9 550 19.40 68%
APC SF 9x6 1 10.7 12.7 135 6240 35.5 621 21.91 64%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC SF 9x6 1 10.7 12.7 135 6240 35.5 621 21.91 64%
APC SF 10x4.7 1 6.9 6.5 44 4740 21.1 400 14.11 75%
APC SF 10x4.7 1 6.9 6.5 44 4740 21.1 400 14.11 75%
APC SF 10x4.7 1 7.8 7.9 61 5220 23.2 491 17.32 74%
APC SF 10x4.7 1 7.8 7.9 61 5220 23.2 491 17.32 74%
APC SF 10x4.7 1 8.8 9.45 83 5670 25.2 590 20.81 71%
APC SF 10x4.7 1 8.8 9.45 83 5670 25.2 590 20.81 71%
APC SF 10x4.7 1 9.8 10.9 106 6030 26.8 685 24.16 68%
APC SF 10x4.7 1 9.8 10.9 106 6030 26.8 685 24.16 68%
APC SF 10x4.7 1 10.7 12.3 131 6330 28.2 765 26.98 65%
APC SF 10x4.7 1 10.7 12.3 131 6330 28.2 765 26.98 65%
GWS HD 10x6 1 6.9 5.4 37 5070 28.8 352 12.42 81%
GWS HD 10x6 1 6.9 5.4 37 5070 28.8 352 12.42 81%
GWS HD 10x6 1 7.8 6.4 49 5640 32.0 427 15.06 79%
GWS HD 10x6 1 7.8 6.4 49 5640 32.0 427 15.06 79%
GWS HD 10x6 1 8.8 7.65 67 6150 34.9 518 18.27 77%
GWS HD 10x6 1 8.8 7.65 67 6150 34.9 518 18.27 77%
GWS HD 10x6 1 9.8 8.85 86 6630 37.7 612 21.59 74%
GWS HD 10x6 1 9.8 8.85 86 6630 37.7 612 21.59 74%
GWS HD 10x6 1 10.8 10.05 108 7110 40.4 692 24.41 72%
GWS HD 10x6 1 10.8 10.05 108 7110 40.4 692 24.41 72%
APC SF 10x7 1 6.8 8.6 58 4260 28.2 420 14.82 69%
APC SF 10x7 1 6.8 8.6 58 4260 28.2 420 14.82 69%
APC SF 10x7 1 7.8 10.2 79 4650 30.8 496 17.50 66%
APC SF 10x7 1 7.8 10.2 79 4650 30.8 496 17.50 66%
APC SF 10x7 1 8.8 12 105 4950 32.8 586 20.67 62%
APC SF 10x7 1 8.8 12 105 4950 32.8 586 20.67 62%
APC SF 10x7 1 9.7 13.6 131 5220 34.6 658 23.21 59%
APC SF 10x7 1 9.7 13.6 131 5220 34.6 658 23.21 59%
APC SF 10x7 1 10.7 15.1 161 5460 36.2 720 25.40 56%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC SF 10x7 1 10.7 15.1 161 5460 36.2 720 25.40 56%
APC SF 11x4.7 1 6.8 7.7 52 4470 19.9 461 16.26 72%
APC SF 11x4.7 1 6.8 7.7 52 4470 19.9 461 16.26 72%
APC SF 11x4.7 1 7.4 8.55 63 4680 20.8 512 18.06 69%
APC SF 11x4.7 1 7.4 8.55 63 4680 20.8 512 18.06 69%
APC SF 11x4.7 1 7.8 9.3 72 4860 21.6 554 19.54 68%
APC SF 11x4.7 1 7.8 9.3 72 4860 21.6 554 19.54 68%
APC SF 11x4.7 1 8.8 10.9 95 5190 23.1 662 23.35 65%
APC SF 11x4.7 1 8.8 10.9 95 5190 23.1 662 23.35 65%
APC SF 11x4.7 1 9.8 12.55 122 5520 24.6 748 26.38 62%
APC SF 11x4.7 1 9.8 12.55 122 5520 24.6 748 26.38 62%
APC SF 11x4.7 1 10.7 14 149 5790 25.8 840 29.63 59%
APC SF 11x4.7 1 10.7 14 149 5790 25.8 840 29.63 59%

Comments

Dr Kiwi on 2010-12-22 13:45:04
This is a 12-arm, 14-magnet motor.
