KEDA - TR2837/14



Specifications

  • Type: Outrunner
  • Weight: 81.00g (2.86oz)
  • Diameter: 28.00mm (1.10in)
  • Length: 37.00mm (1.46in)
  • Shaft Diameter: 3.17mm (0.12in)
  • Maximum Amps: 25

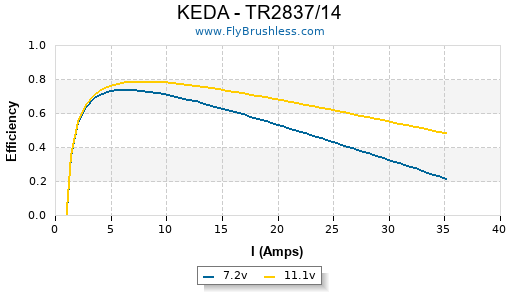

Constants

  • kV: 1065
  • Rm: 0.16
  • Io: 0.9



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 0.7 7250
8 0.75 8300
10 0.9 10500

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 9x5 1 6.9 6.25 43 6390 30.3 389 13.72 87%
GWS HD 9x5 1 7.9 7.75 61 7140 33.8 498 17.57 85%
GWS HD 9x5 1 8.8 9.3 81 7830 37.1 603 21.27 84%
GWS HD 9x5 1 9.8 10.95 107 8550 40.5 723 25.50 82%
GWS HD 9x5 1 10.7 12.9 138 9270 43.9 855 30.16 81%
GWS HD 10x6 1 6.8 8.55 58 6000 34.1 499 17.60 83%
GWS HD 10x6 1 7.8 10.35 80 6660 37.8 614 21.66 80%
GWS HD 10x6 1 8.8 12.3 108 7320 41.6 734 25.89 78%
GWS HD 10x6 1 9.7 14.4 139 7920 45.0 876 30.90 77%
GWS HD 10x6 1 10.7 16.7 178 8520 48.4 1018 35.91 75%
GWS HD 3T 10x6 1 6.8 10.65 72 5660 32.2 572 20.18 78%
GWS HD 3T 10x6 1 7.7 12.75 98 6260 35.6 701 24.73 76%
GWS HD 3T 10x6 1 8.7 15.3 133 6840 38.9 865 30.51 74%
GWS HD 3T 10x6 1 9.6 17.6 168 7340 41.7 978 34.50 72%
GWS HD 3T 10x6 1 10.6 19.8 209 7840 44.5 1130 39.86 69%
GWS HD 10x8 1 6.7 12.75 85 5310 40.2 498 17.57 74%
GWS HD 10x8 1 7.7 15.65 120 5910 44.8 617 21.76 72%
GWS HD 10x8 1 8.6 18.1 155 6360 48.2 718 25.33 69%
GWS HD 10x8 1 9.6 20.9 200 6810 51.6 822 29.00 67%
GWS HD 10x8 1 10.6 23.6 250 7230 54.8 946 33.37 64%
APC E 11x5.5 1 6.9 10.6 73 5670 29.5 596 21.02 77%
APC E 11x5.5 1 7.9 12.9 101 6270 32.7 733 25.86 75%
APC E 11x5.5 1 8.8 15.2 133 6840 35.6 888 31.32 73%
APC E 11x5.5 1 9.8 17.9 175 7350 38.3 1041 36.72 70%
APC E 11x5.5 1 10.7 20.4 218 7800 40.6 1183 41.73 68%
