Hyperion - Z2209-32

Specifications

  • Type: Outrunner
  • Weight: 42.00g (1.48oz)
  • Diameter: 27.60mm (1.09in)
  • Length: 27.80mm (1.09in)
  • Shaft Diameter: 3.00mm (0.12in)
  • Maximum Amps: 12

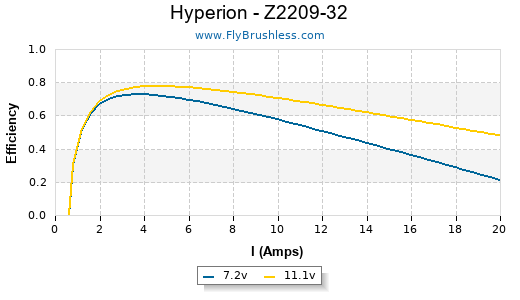

Constants

  • kV: 1020
  • Rm: 0.282
  • Io: 0.55



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 0.45 6990
8 0.5 7990
10 0.55 10000

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 7x3.5 1 6.9 1.6 11 6810 22.6 88 3.10 97%
GWS HD 7x3.5 1 8 2 16 7800 25.9 120 4.23 96%
GWS HD 7x3.5 1 9 2.4 21 8670 28.7 155 5.47 94%
GWS HD 7x3.5 1 10 2.8 28 9540 31.6 195 6.88 94%
GWS HD 7x3.5 1 10.9 3.25 35 10410 34.5 233 8.22 94%
APC SF 7x5 1 6.7 2.5 16 6120 29.0 0 0.00 90%
APC SF 7x5 1 7 3.15 22 6420 30.4 159 5.61 90%
APC SF 7x5 1 7.7 3.2 24 6915 32.7 0 0.00 88%
APC SF 7x5 1 8 3.95 31 7170 34.0 205 7.23 88%
APC SF 7x5 1 8.8 4 35 7785 36.9 0 0.00 87%
APC SF 7x5 1 8.9 4.8 42 7890 37.4 257 9.07 87%
APC SF 7x5 1 9.9 5.7 56 8610 40.8 302 10.65 85%
APC SF 7x5 1 9.9 4.9 48 8610 40.8 0 0.00 85%
APC SF 7x5 1 10.1 5 50 8700 41.2 0 0.00 84%
APC SF 7x5 1 10.9 6.65 72 9270 43.9 355 12.52 83%
APC SF 7x5 1 11 6 66 9390 44.5 0 0.00 84%
APC SF 7x6 1 7 3.75 26 6210 35.3 166 5.86 87%
APC SF 7x6 1 7.9 4.65 36 6930 39.4 207 7.30 86%
APC SF 7x6 1 8.9 5.6 49 7620 43.3 253 8.92 84%
APC SF 7x6 1 9.9 6.6 65 8340 47.4 297 10.48 83%
APC SF 7x6 1 10.9 7.6 82 8940 50.8 347 12.24 80%
APC SF 8x3.8 1 6.7 3.6 24 5880 21.2 0 0.00 86%
APC SF 8x3.8 1 6.9 4.1 28 6060 21.8 242 8.54 86%
APC SF 8x3.8 1 7.7 4.5 34 6600 23.8 0 0.00 84%
APC SF 8x3.8 1 8 5.2 41 6810 24.5 310 10.93 83%
APC SF 8x3.8 1 8.8 5.7 50 7275 26.2 0 0.00 81%
APC SF 8x3.8 1 9 6.25 56 7440 26.8 377 13.30 81%
APC SF 8x3.8 1 9.9 7.4 73 8010 28.8 456 16.08 79%
APC SF 8x3.8 1 9.9 6.8 67 7935 28.6 0 0.00 79%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC SF 8x3.8 1 10.1 7 70 8055 29.0 0 0.00 78%
APC SF 8x3.8 1 10.9 8.6 93 8580 30.9 528 18.62 77%
APC SF 8x3.8 1 11 8.3 91 8595 30.9 0 0.00 77%
GWS HD 8x4 1 7 3.2 22 6390 24.2 201 7.09 89%
GWS HD 8x4 1 7.9 3.85 30 7140 27.1 256 9.03 89%
GWS HD 8x4 1 8.9 4.6 40 7920 30.0 318 11.22 87%
GWS HD 8x4 1 9.9 5.45 53 8670 32.8 384 13.55 86%
GWS HD 8x4 1 11 6.35 69 9390 35.6 448 15.80 84%
APC SF 9x4.7 1 6.7 5.2 34 5400 24.0 0 0.00 79%
APC SF 9x4.7 1 6.9 5.45 37 5670 25.2 321 11.32 81%
APC SF 9x4.7 1 7.7 6.2 47 6060 27.0 0 0.00 77%
APC SF 9x4.7 1 7.9 6.55 51 6240 27.8 394 13.90 77%
APC SF 9x4.7 1 8.8 7.6 66 6735 30.0 0 0.00 75%
APC SF 9x4.7 1 8.9 7.8 69 6900 30.7 475 16.76 76%
APC SF 9x4.7 1 9.9 9 89 7530 33.5 562 19.82 75%
APC SF 9x4.7 1 9.9 8.7 86 7230 32.2 0 0.00 72%
APC SF 9x4.7 1 10.1 8.9 89 7350 32.7 0 0.00 71%
APC SF 9x4.7 1 10.9 10.1 110 8010 35.6 636 22.43 72%
APC SF 9x4.7 1 11 10.1 111 7860 35.0 0 0.00 70%
GWS HD 9x5 1 6.9 5.1 35 5760 27.3 310 10.93 82%
GWS HD 9x5 1 7.9 6.25 49 6450 30.5 391 13.79 80%
GWS HD 9x5 1 8.9 7.34 65 7050 33.4 465 16.40 78%
GWS HD 9x5 1 9.9 8.55 84 7650 36.2 546 19.26 76%
APC SF 10x4.7 1 6.7 7.4 49 4740 21.1 0 0.00 69%
APC SF 10x4.7 1 6.9 7.95 54 4920 21.9 425 14.99 70%
APC SF 10x4.7 1 7.7 9 69 5205 23.2 0 0.00 66%
APC SF 10x4.7 1 7.9 9.55 75 5370 23.9 515 18.17 67%
APC SF 10x4.7 1 8.8 10.5 92 5550 24.7 0 0.00 62%
APC SF 10x4.7 1 8.9 11.1 98 5730 25.5 597 21.06 63%
APC SF 10x4.7 1 9.9 12 118 5880 26.2 0 0.00 58%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC SF 10x4.7 1 9.9 12.8 126 6060 27.0 678 23.92 60%
APC SF 10x4.7 1 10.1 13.3 134 6225 27.7 0 0.00 60%
APC SF 10x4.7 1 10.8 14.1 152 6330 28.2 747 26.35 57%
GWS HD 10x6 1 6.9 6.8 46 5370 30.5 392 13.83 76%
GWS HD 10x6 1 7.9 8.15 64 5940 33.8 475 16.76 74%
GWS HD 10x6 1 8.9 9.6 85 6420 36.5 568 20.04 71%
GWS HD 10x6 1 9.9 10.9 107 6870 39.0 646 22.79 68%
GWS HD 10x6 1 10.9 12.35 134 7260 41.2 736 25.96 65%
