E-max - BL 2810/12


E-max - BL 2810/12

Specifications

  • Type: Outrunner
  • Weight: 86.00g (3.03oz)
  • Diameter: 38.15mm (1.50in)
  • Length: 31.80mm (1.25in)
  • Shaft Diameter: 5.00mm (0.20in)
  • Maximum Amps: 25

Constants

  • kV: 1350
  • Rm: 0.15
  • Io: 1.35



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 1.1 9300
8 1.2 10590
10 1.35 13140

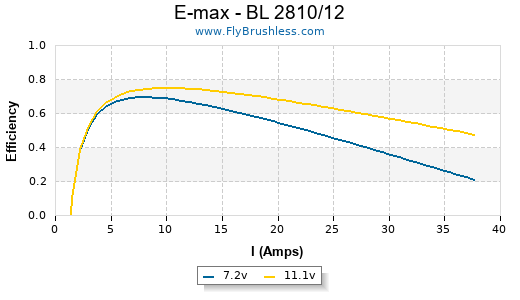

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC E 9x6 1 6.9 13.2 91 7050 40.1 576 20.32 76%
APC E 9x6 1 7.9 15.85 125 7770 44.1 706 24.90 73%
APC E 9x6 1 8.9 18.6 165 8490 48.2 843 29.74 71%
APC E 9x6 1 9.9 21.6 213 9120 51.8 974 34.36 68%
APC E 11x5.5 1 6.9 14.4 99 5910 30.8 643 22.68 63%
APC E 11x5.5 1 7.9 16 126 6450 33.6 775 27.34 60%
APC E 11x5.5 1 8.9 18.1 161 6870 35.8 892 31.46 57%
APC E 11x5.5 1 9.9 21.7 214 7350 38.3 1055 37.21 55%
APC E 11x5.5 1 10.9 24.6 268 7740 40.3 1184 41.76 53%
