AX - 2308N1100
Specifications
- Type: Outrunner
- Weight: 44.00g (1.55oz)
- Diameter: 29.00mm (1.14in)
- Length: 25.00mm (0.98in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 12

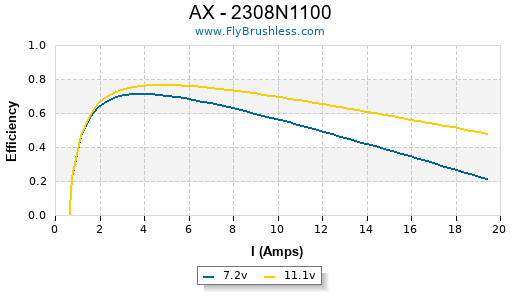

Constants
- kV: 1056
- Rm: 0.29
- Io: 0.6
Io Test Data
Bruce Abbot test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.6 | 0 |
| 10 | 0.6 | 0 |
Test Data
Bruce Abbot test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS EP 6x3 | 1 | 7 | 1.3 | 9 | 7092 | 20.1 | 0 | 0.00 | 96% |
| GWS EP 6x3 | 1 | 10 | 1.97 | 19 | 9944 | 28.2 | 0 | 0.00 | 94% |
| GWS EP 8x4 | 1 | 10 | 5.5 | 55 | 8719 | 33.0 | 382 | 13.47 | 83% |
| GWS EP 8x6 | 1 | 7 | 5.4 | 37 | 5795 | 32.9 | 276 | 9.74 | 78% |
| GWS EP 8x6 | 1 | 10 | 9.4 | 94 | 7562 | 43.0 | 477 | 16.83 | 72% |
| GWS EP 9x5 | 1 | 10 | 9.2 | 92 | 7624 | 36.1 | 563 | 19.86 | 72% |
| GWS EP 9x7 | 1 | 7 | 8.8 | 61 | 4905 | 32.5 | 347 | 12.24 | 66% |
| GWS EP 10x4.7 | 1 | 7 | 8.5 | 59 | 4963 | 22.1 | 404 | 14.25 | 67% |
| GWS EP 10x6 | 1 | 10 | 11.8 | 118 | 6866 | 39.0 | 650 | 22.93 | 65% |
| GWS EP 10x8 | 1 | 7 | 11.2 | 78 | 4317 | 32.7 | 424 | 14.96 | 58% |
