ARC - 2215-950
Specifications
- Type: Outrunner
- Weight: 63.00g (2.22oz)
- Diameter: 27.80mm (1.09in)
- Length: 33.00mm (1.30in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 18
Constants
- kV: 895
- Rm: 0.17
- Io: 0.55
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.5 | 6240 |
| 8 | 0.55 | 7140 |
| 10 | 0.55 | 8880 |

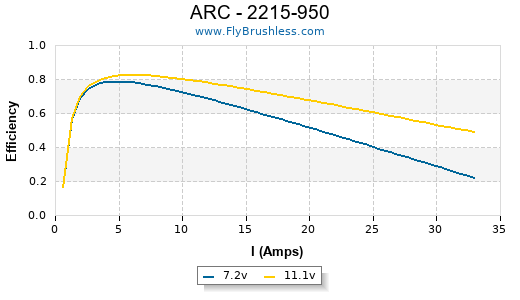

Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 9x5 | 1 | 7.9 | 5.35 | 42 | 6420 | 30.4 | 396 | 13.97 | 91% |
| GWS HD 9x5 | 1 | 8.9 | 6.55 | 58 | 7110 | 33.7 | 493 | 17.39 | 89% |
| GWS HD 9x5 | 1 | 9.9 | 7.8 | 77 | 7770 | 36.8 | 594 | 20.95 | 88% |
| GWS HD 9x5 | 1 | 10.8 | 9 | 97 | 8370 | 39.6 | 693 | 24.44 | 87% |
| GWS HD 10x6 | 1 | 6.9 | 6 | 41 | 5430 | 30.9 | 401 | 14.14 | 88% |
| GWS HD 10x6 | 1 | 7.9 | 7.45 | 58 | 6060 | 34.4 | 508 | 17.92 | 86% |
| GWS HD 10x6 | 1 | 8.9 | 9 | 80 | 6690 | 38.0 | 619 | 21.83 | 84% |
| GWS HD 10x6 | 1 | 9.9 | 10.65 | 105 | 7320 | 41.6 | 734 | 25.89 | 83% |
| GWS HD 10x6 | 1 | 10.8 | 12.2 | 131 | 7830 | 44.5 | 852 | 30.05 | 81% |
| GWS HD 11x7 | 1 | 6.9 | 8.7 | 60 | 5010 | 33.2 | 545 | 19.22 | 81% |
| GWS HD 11x7 | 1 | 7.8 | 10.65 | 83 | 5580 | 37.0 | 671 | 23.67 | 80% |
| GWS HD 11x7 | 1 | 8.8 | 12.6 | 110 | 6090 | 40.4 | 803 | 28.32 | 77% |
| GWS HD 11x7 | 1 | 9.8 | 14.7 | 144 | 6540 | 43.4 | 936 | 33.02 | 75% |
| GWS HD 11x7 | 1 | 10.8 | 16.7 | 180 | 6960 | 46.1 | 1061 | 37.43 | 72% |
