HXT - D2211-1700
Specifications
- Type: Outrunner
- Weight: 20.00g (0.71oz)
- Diameter: 22.25mm (0.88in)
- Length: 13.25mm (0.52in)
- Shaft Diameter: 2.00mm (0.08in)
- Maximum Amps: 6

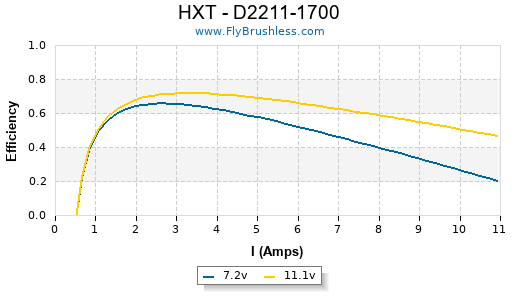

Constants
- kV: 1570
- Rm: 0.52
- Io: 0.5
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.45 | 10683 |
| 8 | 0.45 | 12180 |
| 10 | 0.5 | 15243 |
Bruce Abbot test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.42 | 0 |
Test Data
Bruce Abbot test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS EP 4.5x3 | 1 | 7 | 1.46 | 10 | 9953 | 28.3 | 56 | 1.98 | 91% |
| GWS EP 6x3 | 1 | 7 | 2.52 | 17 | 9086 | 25.8 | 125 | 4.41 | 83% |
| GWS EP 7x3.5 | 1 | 7 | 3.21 | 22 | 8543 | 28.3 | 164 | 5.78 | 78% |
| APC E 7x4 | 1 | 7 | 4.7 | 32 | 7384 | 28.0 | 201 | 7.09 | 67% |
| APC SF 8x3.8 | 1 | 7 | 6.21 | 43 | 6221 | 22.4 | 259 | 9.14 | 57% |
| GWS EP 8x4 | 1 | 7 | 5.24 | 36 | 6979 | 26.4 | 248 | 8.75 | 64% |
| GWS EP 9x5 | 1 | 7 | 7.06 | 49 | 5486 | 26.0 | 285 | 10.05 | 50% |
