E-max - BL 2210/25



Specifications

  • Type: Outrunner
  • Weight: 45.00g (1.59oz)
  • Diameter: 28.10mm (1.11in)
  • Length: 27.80mm (1.09in)
  • Shaft Diameter: 3.00mm (0.12in)
  • Maximum Amps: 13

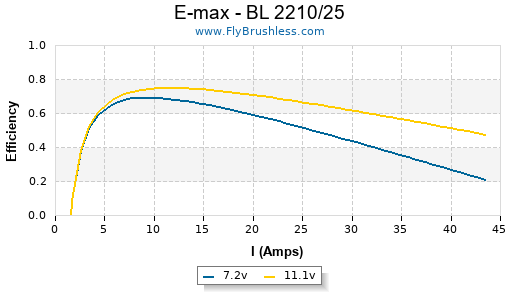

Constants

  • kV: 2000
  • Rm: 0.13
  • Io: 1.58



Io Test Data

Dr Kiwi test results
Volts Amps RPM
6.02 1.14 11880
8.02 1.35 15750
10 1.58 19530

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC E 4.75x4.75 1 11.1 10.95 121 19200 86.4 354 12.49 86%
APC E 5x5 1 11.1 14.35 159 18390 87.1 370 13.05 83%
Zagi Carbon 5.1x4.9 1 6.9 6.45 44 12240 56.8 212 7.48 89%
Zagi Carbon 5.1x4.9 1 7.9 7.9 62 13800 64.0 269 9.49 87%
Zagi Carbon 5.1x4.9 1 8.9 9.45 84 15180 70.4 330 11.64 85%
Zagi Carbon 5.1x4.9 1 9.9 11.45 113 16770 77.8 406 14.32 85%
Zagi Carbon 5.1x4.9 1 10.9 13.45 146 18150 84.2 477 16.83 83%
Zagi Carbon 5.1x4.9 1 11.1 14.15 157 18390 85.3 506 17.85 83%
GWS HD 7x3.5 1 6.9 7.8 53 12000 39.8 351 12.38 87%
GWS HD 7x3.5 1 7.9 9.6 75 13440 44.5 449 15.84 85%
GWS HD 7x3.5 1 8.9 11.75 104 14760 48.9 558 19.68 83%
GWS HD 7x3.5 1 9.9 14.15 140 16050 53.2 680 23.99 81%
GWS HD 7x3.5 1 10.9 16.7 182 17190 57.0 794 28.01 79%
APC SF 7x4 1 7.4 15.7 116 11190 42.4 554 19.54 76%
Graupner SF 7x4 1 7.4 16.6 122 10830 41.0 600 21.16 73%
APC E 7x5 1 6.9 15 103 10320 48.9 503 17.74 75%
APC E 7x5 1 7.4 16.5 122 10830 51.3 560 19.75 73%
APC E 7x5 1 7.4 16.5 122 10830 51.3 560 19.75 73%
GWS HD 8x4 1 6.9 14.8 102 10290 39.0 582 20.53 75%
