LightFlightRC - 28-37-2.5 U. Black
Specifications
- Type: Inrunner
- Weight: 81.00g (2.86oz)
- Diameter: 28.00mm (1.10in)
- Length: 37.15mm (1.46in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 40
Constants
- kV: 2900
- Rm: 0.09
- Io: 1.2
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 10 | 1.2 | 28350 |

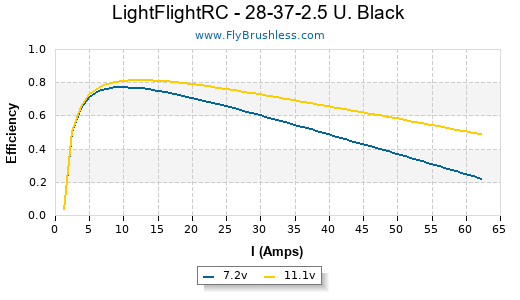

Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 4.1x4.1 | 1 | 11.8 | 20.5 | 241 | 27690 | 107.5 | 494 | 17.43 | 81% |
| APC E 4.75x4.75 | 1 | 11.5 | 31.4 | 361 | 25200 | 113.3 | 604 | 21.31 | 76% |
| APC E 5x5 | 1 | 11.4 | 34.4 | 392 | 24150 | 114.3 | 635 | 22.40 | 73% |
| Zagi Carbon 5.1x4.9 | 1 | 11.3 | 34.1 | 385 | 24060 | 111.6 | 883 | 31.15 | 73% |
| APC E 5.25x6.25 | 1 | 10.9 | 42.7 | 465 | 20900 | 123.7 | 635 | 22.40 | 66% |
