E-max - BL 2215/20
Specifications
- Type: Outrunner
- Weight: 59.00g (2.08oz)
- Diameter: 28.00mm (1.10in)
- Length: 31.90mm (1.26in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 22

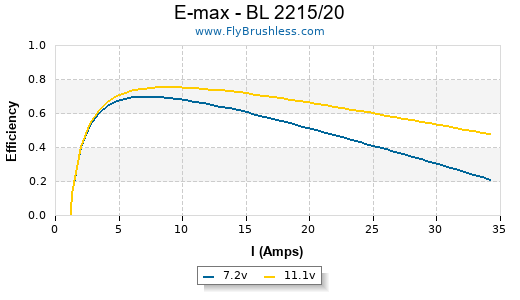

Constants
- kV: 1205
- Rm: 0.165
- Io: 1.19
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 6.02 | 0.8 | 6540 |
| 10.01 | 1.19 | 11790 |
| 10.01 | 1.19 | 11790 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 8x4 | 1 | 6.9 | 4.9 | 33 | 7410 | 28.1 | 290 | 10.23 | 89% |
| GWS HD 8x4 | 1 | 7.9 | 6 | 47 | 8310 | 31.5 | 369 | 13.02 | 87% |
| GWS HD 8x4 | 1 | 8.9 | 7.3 | 64 | 9210 | 34.9 | 461 | 16.26 | 86% |
| GWS HD 8x4 | 1 | 9.9 | 8.7 | 86 | 10080 | 38.2 | 557 | 19.65 | 84% |
| GWS HD 8x4 | 1 | 10.9 | 10.1 | 110 | 10920 | 41.4 | 658 | 23.21 | 83% |
| GWS HD 9x5 | 1 | 6.9 | 8.2 | 56 | 6840 | 32.4 | 460 | 16.23 | 82% |
| GWS HD 9x5 | 1 | 7.9 | 10 | 79 | 7620 | 36.1 | 574 | 20.25 | 80% |
| GWS HD 9x5 | 1 | 8.9 | 12 | 106 | 8370 | 39.6 | 701 | 24.73 | 78% |
| GWS HD 9x5 | 1 | 9.9 | 14 | 138 | 9030 | 42.8 | 822 | 29.00 | 76% |
| APC E 10x5 | 1 | 6.9 | 10.9 | 75 | 6390 | 30.3 | 560 | 19.75 | 77% |
| APC E 10x5 | 1 | 7.9 | 13.2 | 104 | 7020 | 33.2 | 693 | 24.44 | 74% |
| APC E 10x5 | 1 | 8.9 | 15.8 | 140 | 7680 | 36.4 | 828 | 29.21 | 72% |
| APC E 10x5 | 1 | 9.9 | 18.3 | 181 | 8220 | 38.9 | 969 | 34.18 | 69% |
| APC E 10x5 | 1 | 10.9 | 21 | 228 | 8730 | 41.3 | 1103 | 38.91 | 66% |
| GWS HD 10x6 | 1 | 6.9 | 10.9 | 75 | 6390 | 36.3 | 566 | 19.97 | 77% |
| GWS HD 10x6 | 1 | 7.9 | 13.15 | 103 | 7050 | 40.1 | 683 | 24.09 | 74% |
| GWS HD 10x6 | 1 | 8.9 | 15.55 | 138 | 7650 | 43.5 | 812 | 28.64 | 71% |
| GWS HD 10x6 | 1 | 9.9 | 18.2 | 180 | 8250 | 46.9 | 955 | 33.69 | 69% |
| GWS HD 10x6 | 1 | 10.9 | 20.7 | 225 | 8670 | 49.3 | 1084 | 38.24 | 66% |
