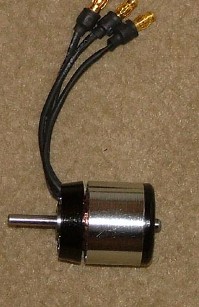

TrueRC - 300BA
Specifications
- Type: Outrunner
- Weight: 33.00g (1.16oz)
- Diameter: 22.00mm (0.87in)
- Length: 25.30mm (1.00in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 8
Constants
- kV: 1000
- Rm: 0
- Io: 0
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 7x3.5 | 1 | 8 | 1.05 | 8 | 6270 | 20.8 | 82 | 2.89 | 78% |
| GWS HD 7x3.5 | 1 | 9 | 1.2 | 10 | 6930 | 23.0 | 104 | 3.67 | 77% |
| GWS HD 7x3.5 | 1 | 10 | 1.4 | 14 | 7620 | 25.3 | 127 | 4.48 | 76% |
| GWS HD 7x3.5 | 1 | 11 | 1.6 | 17 | 8220 | 27.2 | 152 | 5.36 | 75% |
| GWS HD 8x4 | 1 | 7 | 1.55 | 10 | 4890 | 18.5 | 123 | 4.34 | 70% |
| GWS HD 8x4 | 1 | 8 | 1.85 | 14 | 5430 | 20.6 | 153 | 5.40 | 68% |
| GWS HD 8x4 | 1 | 8.9 | 2.15 | 19 | 5910 | 22.4 | 183 | 6.46 | 66% |
| GWS HD 8x4 | 1 | 9.9 | 2.6 | 25 | 6450 | 24.4 | 215 | 7.58 | 65% |
| GWS HD 8x4 | 1 | 10.9 | 2.95 | 32 | 6780 | 25.7 | 243 | 8.57 | 62% |
| GWS HD 8x4 | 1 | 14.7 | 4.2 | 61 | 8310 | 31.5 | 368 | 12.98 | 57% |
| GWS HD 9x5 | 1 | 6.9 | 2.25 | 15 | 4140 | 19.6 | 161 | 5.68 | 60% |
| GWS HD 9x5 | 1 | 7.9 | 2.65 | 20 | 4530 | 21.4 | 193 | 6.81 | 57% |
| GWS HD 9x5 | 1 | 8.9 | 3.1 | 27 | 4920 | 23.3 | 226 | 7.97 | 55% |
| GWS HD 9x5 | 1 | 9.9 | 3.55 | 35 | 5250 | 24.9 | 260 | 9.17 | 53% |
| GWS HD 9x5 | 1 | 10.9 | 3.95 | 43 | 5520 | 26.1 | 286 | 10.09 | 51% |
| GWS HD 9x5 | 1 | 14.7 | 5.4 | 79 | 6360 | 30.1 | 400 | 14.11 | 43% |
| GWS HD 10x6 | 1 | 7 | 2.75 | 19 | 3600 | 20.4 | 180 | 6.35 | 51% |
| GWS HD 10x6 | 1 | 8 | 3.15 | 25 | 3930 | 22.3 | 206 | 7.27 | 49% |
| GWS HD 10x6 | 1 | 8.9 | 3.6 | 32 | 4170 | 23.7 | 236 | 8.32 | 47% |
| GWS HD 10x6 | 1 | 9.9 | 4 | 39 | 4410 | 25.1 | 262 | 9.24 | 45% |
| GWS HD 10x6 | 1 | 10.9 | 4.4 | 47 | 4590 | 26.1 | 293 | 10.34 | 42% |
