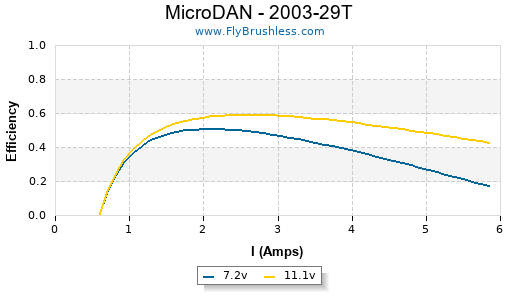

MicroDAN - 2003-29T
Specifications
- Type: Outrunner
- Weight: 13.00g (0.46oz)
- Maximum Amps: 6
Constants
- kV: 1780
- Rm: 1
- Io: 0.6
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.5 | 11730 |
| 8 | 0.55 | 13710 |
| 10 | 0.6 | 16620 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| Gunther 4.92x4.33 | 1 | 7 | 2.4 | 16 | 8310 | 34.1 | 93 | 3.28 | 67% |
| Gunther 4.92x4.33 | 1 | 7.4 | 2.6 | 19 | 8640 | 35.4 | 103 | 3.63 | 66% |
| Gunther 4.92x4.33 | 1 | 7.9 | 2.8 | 22 | 9030 | 37.0 | 113 | 3.99 | 64% |
| Gunther 4.92x4.33 | 1 | 8.9 | 3.2 | 28 | 9870 | 40.5 | 133 | 4.69 | 62% |
| Gunther 4.92x4.33 | 1 | 9.9 | 3.65 | 36 | 10620 | 43.5 | 155 | 5.47 | 60% |
| Gunther 4.92x4.33 | 1 | 10.9 | 4.1 | 44 | 11250 | 46.1 | 176 | 6.21 | 58% |
| GWS HD 5x3 | 1 | 7 | 1.75 | 12 | 9360 | 26.6 | 77 | 2.72 | 75% |
| GWS HD 5x3 | 1 | 7.4 | 1.85 | 13 | 9840 | 27.9 | 86 | 3.03 | 75% |
| GWS HD 5x3 | 1 | 7.9 | 2 | 15 | 10440 | 29.7 | 97 | 3.42 | 74% |
| GWS HD 5x3 | 1 | 9 | 2.3 | 20 | 11550 | 32.8 | 120 | 4.23 | 72% |
| GWS HD 5x3 | 1 | 10 | 2.6 | 26 | 12600 | 35.8 | 141 | 4.97 | 71% |
| GWS HD 5x3 | 1 | 11 | 2.95 | 32 | 13530 | 38.4 | 165 | 5.82 | 69% |
| Graupner 5x4 | 1 | 6.9 | 3 | 20 | 7440 | 28.2 | 99 | 3.49 | 61% |
| Graupner 5x4 | 1 | 7.4 | 3.2 | 23 | 7680 | 29.1 | 107 | 3.77 | 58% |
| Graupner 5x4 | 1 | 7.9 | 3.45 | 27 | 8100 | 30.7 | 119 | 4.20 | 58% |
| Graupner 5x4 | 1 | 8.9 | 3.95 | 35 | 8640 | 32.7 | 137 | 4.83 | 55% |
| Graupner 5x4 | 1 | 9.9 | 4.4 | 43 | 9180 | 34.8 | 156 | 5.50 | 52% |
| Graupner 5x4 | 1 | 10.9 | 4.9 | 53 | 9540 | 36.1 | 176 | 6.21 | 49% |
| Zagi Carbon 5.1x4.9 | 1 | 7 | 2.6 | 18 | 8010 | 37.2 | 90 | 3.17 | 64% |
| Zagi Carbon 5.1x4.9 | 1 | 7.4 | 2.8 | 20 | 8340 | 38.7 | 98 | 3.46 | 63% |
| Zagi Carbon 5.1x4.9 | 1 | 7.9 | 3 | 23 | 8760 | 40.6 | 108 | 3.81 | 62% |
| Zagi Carbon 5.1x4.9 | 1 | 8.9 | 3.5 | 31 | 9450 | 43.9 | 127 | 4.48 | 60% |
| Zagi Carbon 5.1x4.9 | 1 | 9.9 | 3.95 | 39 | 10110 | 46.9 | 147 | 5.19 | 57% |
| Zagi Carbon 5.1x4.9 | 1 | 10.9 | 4.45 | 48 | 10680 | 49.6 | 167 | 5.89 | 55% |
| GWS HD 6x3 | 1 | 7 | 2.3 | 16 | 8430 | 23.9 | 109 | 3.84 | 68% |
| GWS HD 6x3 | 1 | 7.4 | 2.5 | 18 | 8790 | 25.0 | 121 | 4.27 | 67% |
| GWS HD 6x3 | 1 | 7.9 | 2.7 | 21 | 9210 | 26.2 | 134 | 4.73 | 65% |
| GWS HD 6x3 | 1 | 8.9 | 3.1 | 27 | 9990 | 28.4 | 161 | 5.68 | 63% |
| GWS HD 6x3 | 1 | 9.9 | 3.55 | 35 | 10740 | 30.5 | 186 | 6.56 | 61% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 6x3 | 1 | 10.9 | 4 | 43 | 11400 | 32.4 | 215 | 7.58 | 59% |
| GWS HD 7x3.5 | 1 | 7 | 2.8 | 19 | 7830 | 25.9 | 134 | 4.73 | 63% |
| GWS HD 7x3.5 | 1 | 7.9 | 3.25 | 25 | 8460 | 28.0 | 163 | 5.75 | 60% |
| GWS HD 7x3.5 | 1 | 8.9 | 3.8 | 33 | 9120 | 30.2 | 191 | 6.74 | 58% |
| GWS HD 7x3.5 | 1 | 9.9 | 4.25 | 42 | 9600 | 31.8 | 222 | 7.83 | 54% |
| GWS HD 7x3.5 | 1 | 10.9 | 4.7 | 51 | 10050 | 33.3 | 241 | 8.50 | 52% |
| GWS HD 8x4 | 1 | 7 | 4 | 28 | 5370 | 20.3 | 148 | 5.22 | 43% |
| GWS HD 8x4 | 1 | 7.4 | 4.4 | 32 | 5640 | 21.4 | 171 | 6.03 | 43% |
| GWS RS 8x4.3 | 1 | 6.8 | 4.5 | 30 | 4650 | 18.9 | 153 | 5.40 | 38% |
