MicroDAN - 2003 F3P
Specifications
- Type: Outrunner
- Weight: 13.00g (0.46oz)
- Diameter: 26.60mm (1.05in)
- Length: 18.25mm (0.72in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 6

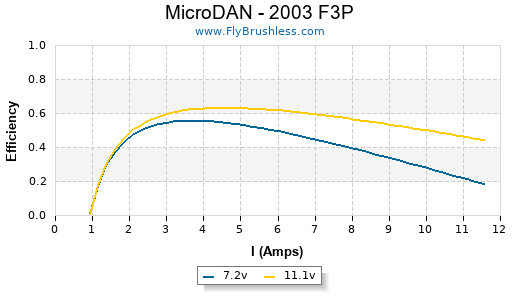

Constants
- kV: 2300
- Rm: 0.5
- Io: 0.94
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.76 | 14420 |
| 10.035 | 0.94 | 22020 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS DD 4x2.5 | 1 | 7 | 2.25 | 15 | 13410 | 31.8 | 79 | 2.79 | 83% |
| GWS DD 4x2.5 | 1 | 8 | 2.65 | 21 | 15000 | 35.5 | 99 | 3.49 | 82% |
| GWS DD 4x2.5 | 1 | 9 | 3.05 | 27 | 16620 | 39.4 | 122 | 4.30 | 80% |
| GWS DD 4x2.5 | 1 | 10 | 3.8 | 38 | 17820 | 42.2 | 135 | 4.76 | 77% |
| GWS DD 4x2.5 | 1 | 10.9 | 4.7 | 51 | 19050 | 45.1 | 163 | 5.75 | 76% |
| GWS HD 4x4 | 1 | 7 | 3.15 | 22 | 12390 | 46.9 | 88 | 3.10 | 77% |
| GWS HD 4x4 | 1 | 7.4 | 3.45 | 25 | 13050 | 49.4 | 98 | 3.46 | 77% |
| GWS HD 4x4 | 1 | 7.9 | 3.8 | 30 | 13740 | 52.0 | 110 | 3.88 | 76% |
| GWS HD 4x4 | 1 | 8.9 | 4.5 | 40 | 15090 | 57.2 | 133 | 4.69 | 74% |
| GWS HD 4x4 | 1 | 9.9 | 5.25 | 51 | 16260 | 61.6 | 155 | 5.47 | 71% |
| GWS HD 4x4 | 1 | 10.9 | 6 | 65 | 17250 | 65.3 | 177 | 6.24 | 69% |
| APC E 4.2x4 | 1 | 7 | 3.35 | 23 | 12210 | 46.2 | 82 | 2.89 | 76% |
| APC E 4.2x4 | 1 | 7.4 | 3.6 | 26 | 12840 | 48.6 | 90 | 3.17 | 75% |
| APC E 4.2x4 | 1 | 7.9 | 3.95 | 31 | 13560 | 51.4 | 101 | 3.56 | 75% |
| APC E 4.2x4 | 1 | 8.9 | 4.65 | 41 | 14850 | 56.2 | 121 | 4.27 | 73% |
| APC E 4.2x4 | 1 | 9.9 | 5.5 | 54 | 16110 | 61.0 | 147 | 5.19 | 71% |
| APC E 4.2x4 | 1 | 10.9 | 6.3 | 68 | 17220 | 65.2 | 167 | 5.89 | 69% |
| GWS HD 4.5x3 | 1 | 7 | 2.8 | 19 | 12780 | 36.3 | 112 | 3.95 | 79% |
| GWS HD 4.5x3 | 1 | 7.9 | 3.4 | 26 | 14220 | 40.4 | 140 | 4.94 | 78% |
| GWS HD 4.5x3 | 1 | 8.9 | 3.95 | 35 | 15540 | 44.1 | 171 | 6.03 | 76% |
| GWS HD 4.5x3 | 1 | 9.9 | 4.6 | 45 | 16860 | 47.9 | 199 | 7.02 | 74% |
| GWS HD 4.5x3 | 1 | 10.9 | 5.45 | 59 | 18000 | 51.1 | 231 | 8.15 | 72% |
| GWS HD 4.5x4 | 1 | 7 | 3.7 | 25 | 11940 | 45.2 | 121 | 4.27 | 74% |
| GWS HD 4.5x4 | 1 | 7.4 | 3.95 | 29 | 12450 | 47.2 | 131 | 4.62 | 73% |
| GWS HD 4.5x4 | 1 | 7.9 | 4.35 | 34 | 13140 | 49.8 | 147 | 5.19 | 72% |
| GWS HD 4.5x4 | 1 | 8.9 | 5.1 | 45 | 14430 | 54.7 | 180 | 6.35 | 70% |
| GWS HD 4.5x4 | 1 | 9.9 | 5.9 | 58 | 15510 | 58.8 | 207 | 7.30 | 68% |
| GWS HD 4.5x4 | 1 | 10.9 | 6.75 | 73 | 16500 | 62.5 | 238 | 8.40 | 66% |
| APC E 4.5x4.1 | 1 | 7 | 3.9 | 27 | 11700 | 45.4 | 107 | 3.77 | 73% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| APC E 4.5x4.1 | 1 | 7.4 | 4.2 | 31 | 12210 | 47.4 | 118 | 4.16 | 72% |
| APC E 4.5x4.1 | 1 | 7.9 | 4.6 | 36 | 12900 | 50.1 | 130 | 4.59 | 71% |
| APC E 4.5x4.1 | 1 | 8.9 | 5.4 | 48 | 13980 | 54.3 | 153 | 5.40 | 68% |
| APC E 4.5x4.1 | 1 | 9.9 | 6.3 | 62 | 15000 | 58.2 | 183 | 6.46 | 66% |
| APC E 4.5x4.1 | 1 | 10.9 | 7.5 | 81 | 15750 | 61.1 | 203 | 7.16 | 63% |
| GWS HD 5x3 | 1 | 7 | 3.35 | 23 | 12390 | 35.2 | 140 | 4.94 | 77% |
| GWS HD 5x3 | 1 | 7.4 | 3.6 | 26 | 12960 | 36.8 | 155 | 5.47 | 76% |
| GWS HD 5x3 | 1 | 7.9 | 3.9 | 30 | 13650 | 38.8 | 171 | 6.03 | 75% |
| GWS HD 5x3 | 1 | 8.9 | 4.7 | 41 | 14700 | 41.8 | 201 | 7.09 | 72% |
| GWS HD 5x3 | 1 | 9.9 | 5.4 | 53 | 16110 | 45.8 | 240 | 8.47 | 71% |
| GWS HD 5x3 | 1 | 10.9 | 6 | 65 | 17250 | 49.0 | 284 | 10.02 | 69% |
| Graupner 5x4 | 1 | 6.9 | 6.05 | 41 | 9510 | 36.0 | 175 | 6.17 | 60% |
| Graupner 5x4 | 1 | 7.4 | 6.45 | 47 | 9810 | 37.2 | 192 | 6.77 | 58% |
| GWS HD 5x4.3 | 1 | 7 | 4.8 | 33 | 10710 | 43.6 | 155 | 5.47 | 67% |
| GWS HD 5x4.3 | 1 | 7.4 | 5.1 | 37 | 11130 | 45.3 | 166 | 5.86 | 65% |
| GWS HD 6x3 | 1 | 6 | 3.6 | 21 | 9990 | 28.4 | 147 | 5.19 | 72% |
| GWS HD 6x3 | 1 | 7 | 4.45 | 31 | 11190 | 31.8 | 190 | 6.70 | 70% |
| GWS HD 6x3 | 1 | 7.4 | 4.8 | 35 | 11640 | 33.1 | 204 | 7.20 | 68% |
| GWS HD 6x3 | 1 | 7.6 | 5.1 | 38 | 12030 | 34.2 | 219 | 7.72 | 69% |
| GWS HD 7x3.5 | 1 | 6 | 4.3 | 25 | 8610 | 28.5 | 170 | 6.00 | 62% |
| GWS HD 7x3.5 | 1 | 7 | 5.55 | 38 | 9720 | 32.2 | 222 | 7.83 | 60% |
| GWS HD 7x3.5 | 1 | 7.4 | 6 | 44 | 9990 | 33.1 | 236 | 8.32 | 59% |
