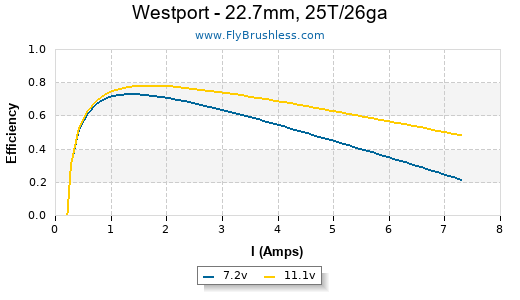

Westport - 22.7mm, 25T/26ga
Specifications
- Type: Outrunner
- Weight: 22.00g (0.78oz)
- Diameter: 26.60mm (1.05in)
- Length: 11.50mm (0.45in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 6
Constants
- kV: 1145
- Rm: 0.77
- Io: 0.2
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.2 | 7830 |
| 8 | 0.2 | 8970 |
| 10 | 0.2 | 11230 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 7x3.5 | 1 | 7 | 1.3 | 9 | 6690 | 22.2 | 97 | 3.42 | 83% |
| GWS HD 7x3.5 | 1 | 8 | 1.6 | 12 | 7530 | 25.0 | 126 | 4.44 | 82% |
| GWS HD 7x3.5 | 1 | 8.9 | 1.9 | 16 | 8280 | 27.4 | 156 | 5.50 | 81% |
| GWS HD 7x3.5 | 1 | 9.9 | 2.25 | 22 | 9060 | 30.0 | 191 | 6.74 | 80% |
| GWS HD 7x3.5 | 1 | 10.9 | 2.6 | 28 | 9780 | 32.4 | 228 | 8.04 | 78% |
| APC SF 7x4 | 1 | 7 | 2.1 | 14 | 6120 | 23.2 | 147 | 5.19 | 76% |
| APC SF 7x4 | 1 | 8 | 2.6 | 20 | 6810 | 25.8 | 186 | 6.56 | 74% |
| APC SF 7x4 | 1 | 9 | 3.1 | 27 | 7440 | 28.2 | 225 | 7.94 | 72% |
| APC SF 7x4 | 1 | 9.9 | 3.6 | 35 | 8010 | 30.3 | 263 | 9.28 | 71% |
| APC SF 7x4 | 1 | 10.9 | 4.25 | 46 | 8550 | 32.4 | 306 | 10.79 | 69% |
| APC SF 7x5 | 1 | 6.9 | 2.45 | 16 | 5880 | 27.8 | 152 | 5.36 | 74% |
| APC SF 7x5 | 1 | 7.9 | 3 | 23 | 6510 | 30.8 | 187 | 6.60 | 72% |
| APC SF 7x5 | 1 | 8.9 | 3.6 | 32 | 7080 | 33.5 | 224 | 7.90 | 69% |
| APC SF 7x5 | 1 | 9.9 | 4.2 | 41 | 7620 | 36.1 | 265 | 9.35 | 67% |
| APC SF 7x5 | 1 | 10.9 | 4.95 | 53 | 8100 | 38.4 | 302 | 10.65 | 65% |
| APC E 7x5 | 1 | 7 | 2.6 | 18 | 5820 | 27.6 | 148 | 5.22 | 73% |
| APC E 7x5 | 1 | 8 | 3.1 | 24 | 6450 | 30.5 | 186 | 6.56 | 70% |
| APC E 7x5 | 1 | 9 | 3.65 | 32 | 7020 | 33.2 | 223 | 7.87 | 68% |
| APC E 7x5 | 1 | 9.9 | 4.25 | 42 | 7560 | 35.8 | 258 | 9.10 | 67% |
| APC E 7x5 | 1 | 10.9 | 4.9 | 53 | 8070 | 38.2 | 296 | 10.44 | 65% |
| APC SF 7x6 | 1 | 7 | 2.6 | 18 | 5610 | 31.9 | 153 | 5.40 | 70% |
| APC SF 7x6 | 1 | 8 | 3.6 | 28 | 6120 | 34.8 | 188 | 6.63 | 67% |
| APC SF 7x6 | 1 | 8.9 | 4.2 | 37 | 6600 | 37.5 | 217 | 7.65 | 65% |
| APC SF 7x6 | 1 | 9.9 | 5 | 49 | 7080 | 40.2 | 253 | 8.92 | 62% |
| APC SF 7x6 | 1 | 10.9 | 5.75 | 62 | 7440 | 42.3 | 278 | 9.81 | 60% |
| GWS HD 8x4 | 1 | 7 | 2.5 | 17 | 5880 | 22.3 | 186 | 6.56 | 73% |
| GWS HD 8x4 | 1 | 8 | 3 | 24 | 6510 | 24.7 | 229 | 8.08 | 71% |
| GWS HD 8x4 | 1 | 8.9 | 3.6 | 32 | 7080 | 26.8 | 273 | 9.63 | 69% |
| GWS HD 8x4 | 1 | 9.9 | 4.2 | 41 | 7680 | 29.1 | 316 | 11.15 | 68% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 8x4 | 1 | 10.9 | 4.9 | 53 | 8130 | 30.8 | 360 | 12.70 | 65% |
| APC SF 9x3.8 | 1 | 6.9 | 3.9 | 26 | 4920 | 17.7 | 243 | 8.57 | 62% |
| APC SF 9x3.8 | 1 | 7.4 | 4.3 | 31 | 5130 | 18.5 | 265 | 9.35 | 61% |
| GWS RS 9x4.7 | 1 | 6.9 | 4.35 | 30 | 4650 | 20.7 | 247 | 8.71 | 59% |
| GWS RS 9x4.7 | 1 | 7.4 | 4.7 | 34 | 4830 | 21.5 | 270 | 9.52 | 57% |
| GWS HD 9x5 | 1 | 7 | 3.9 | 27 | 5010 | 23.7 | 250 | 8.82 | 63% |
| GWS HD 9x5 | 1 | 7.4 | 4.2 | 31 | 5190 | 24.6 | 269 | 9.49 | 61% |
| GWS HD 9x5 | 1 | 10.9 | 6.9 | 75 | 6210 | 29.4 | 394 | 13.90 | 50% |
| Graupner SF 9x5 | 1 | 7 | 4.7 | 32 | 4290 | 20.3 | 243 | 8.57 | 54% |
| Graupner SF 9x5 | 1 | 7.4 | 5.3 | 39 | 4500 | 21.3 | 274 | 9.67 | 53% |
| Ikarus 9x6 | 1 | 6.9 | 5 | 34 | 4080 | 23.2 | 240 | 8.47 | 52% |
| Ikarus 9x6 | 1 | 7.4 | 5.6 | 41 | 4290 | 24.4 | 265 | 9.35 | 51% |
| GWS EP 10x4.7 | 1 | 7.4 | 6.1 | 45 | 3960 | 17.6 | 300 | 10.58 | 47% |
| GWS HD 10x6 | 1 | 6.9 | 4.8 | 33 | 4350 | 24.7 | 273 | 9.63 | 55% |
| GWS HD 10x6 | 1 | 7.4 | 5.15 | 38 | 4500 | 25.6 | 289 | 10.19 | 53% |
