MicroDAN - 2505 Speed 2800kv
Specifications
- Type: Outrunner
- Weight: 33.00g (1.16oz)
- Diameter: 32.70mm (1.29in)
- Length: 19.60mm (0.77in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 35

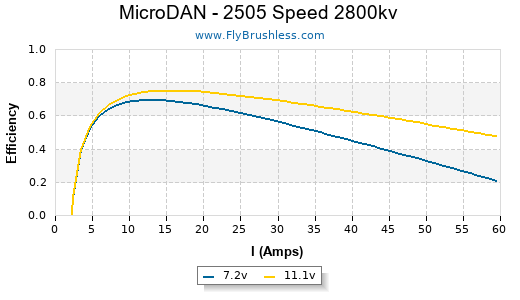

Constants
- kV: 2810
- Rm: 0.095
- Io: 2.11
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7.035 | 1.44 | 19350 |
| 8.055 | 1.63 | 22080 |
| 9 | 1.9 | 24690 |
| 10.02 | 2.11 | 27300 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 4.1x4.1 | 1 | 6.9 | 6.9 | 47 | 17610 | 68.4 | 183 | 6.46 | 91% |
| APC E 4.1x4.1 | 1 | 7.9 | 8.55 | 67 | 19890 | 77.2 | 231 | 8.15 | 90% |
| APC E 4.1x4.1 | 1 | 8.9 | 10.35 | 92 | 21870 | 84.9 | 286 | 10.09 | 87% |
| APC E 4.1x4.1 | 1 | 9.9 | 12.2 | 120 | 23940 | 93.0 | 343 | 12.10 | 86% |
| APC E 4.1x4.1 | 1 | 10.8 | 14.7 | 158 | 26070 | 101.2 | 410 | 14.46 | 86% |
| APC E 4.2x4 | 1 | 6.9 | 7.65 | 52 | 17310 | 65.6 | 164 | 5.78 | 89% |
| APC E 4.2x4 | 1 | 7.9 | 9.45 | 74 | 19560 | 74.1 | 211 | 7.44 | 88% |
| APC E 4.2x4 | 1 | 8.9 | 11.45 | 101 | 21720 | 82.3 | 265 | 9.35 | 87% |
| APC E 4.2x4 | 1 | 9.9 | 13.35 | 132 | 23670 | 89.7 | 315 | 11.11 | 85% |
| APC E 4.2x4 | 1 | 10.9 | 15.85 | 172 | 25710 | 97.4 | 377 | 13.30 | 84% |
| APC E 4.5x4.1 | 1 | 6.9 | 9.1 | 62 | 17070 | 66.3 | 236 | 8.32 | 88% |
| APC E 4.5x4.1 | 1 | 7.9 | 11.3 | 89 | 19050 | 74.0 | 297 | 10.48 | 86% |
| APC E 4.5x4.1 | 1 | 8.9 | 13.7 | 121 | 21090 | 81.9 | 366 | 12.91 | 84% |
| APC E 4.5x4.1 | 1 | 9.9 | 16.2 | 160 | 22950 | 89.1 | 438 | 15.45 | 82% |
| APC E 4.5x4.1 | 1 | 10.8 | 19.1 | 206 | 24900 | 96.7 | 521 | 18.38 | 82% |
| APC E 4.75x4.75 | 1 | 6.8 | 12.1 | 82 | 16230 | 73.0 | 248 | 8.75 | 85% |
| APC E 4.75x4.75 | 1 | 7.8 | 14.95 | 116 | 18060 | 81.2 | 311 | 10.97 | 82% |
| APC E 4.75x4.75 | 1 | 8.8 | 18.05 | 158 | 19860 | 89.3 | 372 | 13.12 | 80% |
| APC E 4.75x4.75 | 1 | 9.7 | 21.3 | 206 | 21480 | 96.6 | 438 | 15.45 | 79% |
| APC E 4.75x4.75 | 1 | 10.7 | 25 | 267 | 23040 | 103.6 | 506 | 17.85 | 77% |
| APC E 4.75x5.5 | 1 | 10.6 | 26 | 275 | 22230 | 115.8 | 485 | 17.11 | 75% |
| APC E 4.75x5.5 | 1 | 11.3 | 28.6 | 323 | 23400 | 121.9 | 529 | 18.66 | 74% |
| Zagi Carbon 5.1x4.9 | 1 | 11.3 | 28.6 | 323 | 23310 | 108.2 | 821 | 28.96 | 73% |
| Graupner CAM Speed 5.2x5.2 | 1 | 6.7 | 16 | 107 | 15060 | 74.2 | 323 | 11.39 | 80% |
| Graupner CAM Speed 5.2x5.2 | 1 | 7.6 | 18.9 | 143 | 16560 | 81.5 | 391 | 13.79 | 78% |
| Graupner CAM Speed 5.2x5.2 | 1 | 10.6 | 29.1 | 308 | 20400 | 100.5 | 603 | 21.27 | 68% |
| Graupner CAM Speed 5.2x5.2 | 1 | 11 | 32.4 | 356 | 21240 | 104.6 | 665 | 23.46 | 69% |
| APC E 5.25x4.75 | 1 | 11.2 | 30.4 | 340 | 22470 | 101.1 | 757 | 26.70 | 71% |
| APC E 5.25x6.25 | 1 | 11 | 37.5 | 412 | 19980 | 118.2 | 589 | 20.78 | 65% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| APC E 5.5x4.5 | 1 | 11.1 | 32.3 | 358 | 21690 | 92.4 | 758 | 26.74 | 70% |
| APC E 6x4 | 1 | 7.7 | 19.6 | 150 | 16620 | 63.0 | 585 | 20.64 | 77% |
