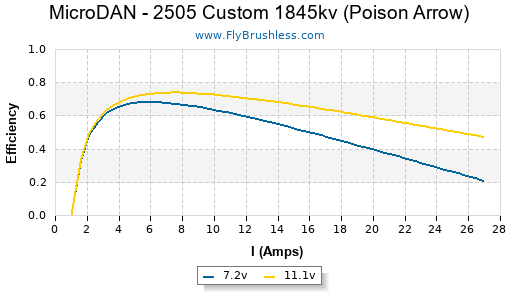

MicroDAN - 2505 Custom 1845kv (Poison Arrow)
Specifications
- Type: Outrunner
- Weight: 34.00g (1.20oz)
- Diameter: 32.75mm (1.29in)
- Length: 19.00mm (0.75in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 25
Constants
- kV: 1885
- Rm: 0.21
- Io: 1.05
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.85 | 12960 |
| 8 | 0.9 | 14760 |
| 10 | 1.05 | 18450 |
gobrushless test results
| Volts | Amps | RPM |
|---|---|---|
| 10 | 0.9 | 18450 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 5x3 | 1 | 6.9 | 2.95 | 20 | 12150 | 34.5 | 135 | 4.76 | 93% |
| GWS HD 5x3 | 1 | 7.9 | 3.5 | 27 | 13740 | 39.0 | 172 | 6.07 | 92% |
| GWS HD 5x3 | 1 | 8.9 | 415 | 3693 | 15300 | 43.5 | 214 | 7.55 | 91% |
| GWS HD 5x3 | 1 | 9.9 | 4.75 | 47 | 16770 | 47.6 | 260 | 9.17 | 90% |
| GWS HD 5x3 | 1 | 10.9 | 5.4 | 58 | 18210 | 51.7 | 301 | 10.62 | 89% |
| GWS HD 3T 5x3 | 1 | 7 | 3.6 | 25 | 12000 | 34.1 | 155 | 5.47 | 91% |
| GWS HD 3T 5x3 | 1 | 7.9 | 4.3 | 33 | 13500 | 38.4 | 196 | 6.91 | 91% |
| GWS HD 3T 5x3 | 1 | 8.9 | 5.05 | 44 | 14900 | 42.3 | 239 | 8.43 | 89% |
| GWS HD 3T 5x3 | 1 | 9.9 | 5.9 | 58 | 16300 | 46.3 | 285 | 10.05 | 87% |
| GWS HD 3T 5x3 | 1 | 10.9 | 6.7 | 73 | 17680 | 50.2 | 333 | 11.75 | 86% |
| GWS HD 3P 5x3 | 1 | 6.9 | 3.5 | 24 | 11960 | 34.0 | 153 | 5.40 | 92% |
| GWS HD 3P 5x3 | 1 | 7.9 | 4.2 | 33 | 13500 | 38.4 | 195 | 6.88 | 91% |
| GWS HD 3P 5x3 | 1 | 8.9 | 4.9 | 43 | 14920 | 42.4 | 235 | 8.29 | 89% |
| GWS HD 3P 5x3 | 1 | 9.9 | 5.8 | 57 | 16340 | 46.4 | 285 | 10.05 | 88% |
| GWS HD 3P 5x3 | 1 | 10.9 | 6.6 | 71 | 17750 | 50.4 | 331 | 11.68 | 86% |
| Zagi Carbon #2 5.1x4.9 | 1 | 6.9 | 5.15 | 35 | 11370 | 52.8 | 186 | 6.56 | 87% |
| Zagi Carbon #2 5.1x4.9 | 1 | 7.9 | 6.2 | 48 | 12720 | 59.0 | 234 | 8.25 | 85% |
| Zagi Carbon #2 5.1x4.9 | 1 | 8.9 | 7.3 | 64 | 13920 | 64.6 | 281 | 9.91 | 83% |
| Zagi Carbon #2 5.1x4.9 | 1 | 9.9 | 8.65 | 85 | 15180 | 70.4 | 337 | 11.89 | 81% |
| Zagi Carbon #2 5.1x4.9 | 1 | 10.8 | 9.9 | 106 | 16290 | 75.6 | 391 | 13.79 | 80% |
| Zagi Carbon #2 5.1x4.9 | 1 | 14 | 14.3 | 200 | 19620 | 91.0 | 572 | 20.18 | 74% |
| Zagi Carbon #1 5.1x4.9 | 1 | 6.9 | 5.05 | 34 | 11400 | 52.9 | 184 | 6.49 | 88% |
| Zagi Carbon #1 5.1x4.9 | 1 | 7.9 | 6.15 | 48 | 12720 | 59.0 | 233 | 8.22 | 85% |
| Zagi Carbon #1 5.1x4.9 | 1 | 8.9 | 7.25 | 64 | 13980 | 64.9 | 281 | 9.91 | 83% |
| Zagi Carbon #1 5.1x4.9 | 1 | 9.9 | 8.5 | 84 | 15180 | 70.4 | 333 | 11.75 | 81% |
| Zagi Carbon #1 5.1x4.9 | 1 | 10.8 | 9.65 | 104 | 16320 | 75.7 | 387 | 13.65 | 80% |
| GWS HD 6x3 | 1 | 6.9 | 4.55 | 31 | 11670 | 33.1 | 226 | 7.97 | 90% |
| GWS HD 6x3 | 1 | 7.9 | 5.5 | 43 | 13020 | 37.0 | 284 | 10.02 | 87% |
| GWS HD 6x3 | 1 | 8.9 | 6.5 | 57 | 14310 | 40.6 | 349 | 12.31 | 85% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 6x3 | 1 | 9.9 | 7.75 | 76 | 15630 | 44.4 | 424 | 14.96 | 84% |
| GWS HD 3T 6x3 | 1 | 6.9 | 5.1 | 35 | 11440 | 32.5 | 237 | 8.36 | 88% |
| GWS HD 3T 6x3 | 1 | 7.9 | 6.15 | 48 | 12800 | 36.4 | 300 | 10.58 | 86% |
| GWS HD 3T 6x3 | 1 | 8.9 | 7.3 | 64 | 14040 | 39.9 | 369 | 13.02 | 84% |
| GWS HD 3T 6x3 | 1 | 9.9 | 8.45 | 83 | 15280 | 43.4 | 435 | 15.34 | 82% |
| GWS HD 3T 6x3 | 1 | 10.9 | 9.65 | 105 | 16500 | 46.9 | 511 | 18.02 | 80% |
| GWS HD 3P 6x3 | 1 | 6.9 | 5.15 | 35 | 11460 | 32.6 | 240 | 8.47 | 88% |
| GWS HD 3P 6x3 | 1 | 7.9 | 6.2 | 48 | 12780 | 36.3 | 301 | 10.62 | 86% |
| GWS HD 3P 6x3 | 1 | 8.9 | 7.3 | 64 | 14040 | 39.9 | 366 | 12.91 | 84% |
| GWS HD 3P 6x3 | 1 | 9.9 | 8.55 | 84 | 15300 | 43.5 | 436 | 15.38 | 82% |
| GWS HD 3P 6x3 | 1 | 10.8 | 9.7 | 104 | 16460 | 46.8 | 503 | 17.74 | 81% |
| APC E 6x5.5 | 1 | 6.9 | 8 | 55 | 10350 | 53.9 | 245 | 8.64 | 80% |
| APC E 6x5.5 | 1 | 7.8 | 9.4 | 73 | 11550 | 60.2 | 312 | 11.01 | 79% |
| APC E 6x5.5 | 1 | 8.8 | 10.95 | 96 | 12660 | 65.9 | 379 | 13.37 | 76% |
| APC E 6x5.5 | 1 | 9.8 | 12.5 | 122 | 13710 | 71.4 | 443 | 15.63 | 74% |
| APC E 6x5.5 | 1 | 10.8 | 14.15 | 152 | 14670 | 76.4 | 512 | 18.06 | 72% |
| APC E 6x5.5 | 1 | 13.7 | 19.6 | 268 | 19980 | 104.1 | 700 | 24.69 | 77% |
| Graupner CAM Speed 6x6 | 1 | 6.8 | 8.2 | 55 | 10290 | 58.5 | 222 | 7.83 | 80% |
| Graupner CAM Speed 6x6 | 1 | 7.8 | 9.8 | 76 | 11400 | 64.8 | 280 | 9.88 | 78% |
| Graupner CAM Speed 6x6 | 1 | 8.8 | 11.4 | 100 | 12420 | 70.6 | 335 | 11.82 | 75% |
| Graupner CAM Speed 6x6 | 1 | 9.8 | 13.05 | 127 | 13350 | 75.8 | 394 | 13.90 | 72% |
| Graupner CAM Speed 6x6 | 1 | 10.7 | 14.85 | 158 | 14400 | 81.8 | 454 | 16.01 | 71% |
| Graupner CAM Speed 6x6 | 1 | 14.4 | 21.5 | 309 | 19300 | 109.7 | 675 | 23.81 | 71% |
| GWS HD 7x3.5 | 1 | 6.9 | 5.95 | 41 | 11190 | 37.1 | 297 | 10.48 | 86% |
| GWS HD 7x3.5 | 1 | 7.9 | 7.2 | 56 | 12420 | 41.2 | 379 | 13.37 | 83% |
| GWS HD 7x3.5 | 1 | 8.9 | 8.5 | 75 | 13950 | 46.2 | 459 | 16.19 | 83% |
| GWS HD 7x3.5 | 1 | 9.9 | 10.1 | 99 | 14670 | 48.6 | 547 | 19.29 | 79% |
| GWS HD 7x3.5 | 1 | 10.8 | 11.6 | 125 | 15750 | 52.2 | 643 | 22.68 | 77% |
| GWS HD 3T#2 7x3.5 | 1 | 6.9 | 7.65 | 52 | 10580 | 35.1 | 347 | 12.24 | 81% |
| GWS HD 3T#2 7x3.5 | 1 | 7.9 | 9.2 | 72 | 11660 | 38.6 | 432 | 15.24 | 78% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 3T#2 7x3.5 | 1 | 8.8 | 10.85 | 95 | 12680 | 42.0 | 518 | 18.27 | 76% |
| GWS HD 3T#2 7x3.5 | 1 | 9.8 | 12.7 | 124 | 13580 | 45.0 | 600 | 21.16 | 74% |
| GWS HD 3T#2 7x3.5 | 1 | 10.8 | 14.55 | 157 | 14620 | 48.5 | 707 | 24.94 | 72% |
| GWS HD 3T#1 7x3.5 | 1 | 6.9 | 7.5 | 51 | 10580 | 35.1 | 340 | 11.99 | 81% |
| GWS HD 3T#1 7x3.5 | 1 | 7.9 | 9.1 | 71 | 11700 | 38.8 | 425 | 14.99 | 79% |
| GWS HD 3T#1 7x3.5 | 1 | 8.9 | 10.8 | 96 | 12760 | 42.3 | 521 | 18.38 | 76% |
| GWS HD 3T#1 7x3.5 | 1 | 9.9 | 12.5 | 123 | 13700 | 45.4 | 614 | 21.66 | 73% |
| GWS HD 3T#1 7x3.5 | 1 | 10.8 | 14.45 | 156 | 14700 | 48.7 | 714 | 25.19 | 72% |
| GWS HD 3P#2 7x3.5 | 1 | 6.9 | 7.4 | 51 | 10700 | 35.5 | 336 | 11.85 | 82% |
| GWS HD 3P#2 7x3.5 | 1 | 7.9 | 8.8 | 69 | 11760 | 39.0 | 416 | 14.67 | 79% |
| GWS HD 3P#2 7x3.5 | 1 | 8.8 | 10.4 | 91 | 12840 | 42.6 | 500 | 17.64 | 77% |
| GWS HD 3P#2 7x3.5 | 1 | 9.8 | 12.35 | 121 | 13800 | 45.7 | 594 | 20.95 | 75% |
| GWS HD 3P#2 7x3.5 | 1 | 10.8 | 14.05 | 151 | 14760 | 48.9 | 688 | 24.27 | 73% |
| GWS HD 3P#1 7x3.5 | 1 | 6.9 | 7.3 | 50 | 10680 | 35.4 | 330 | 11.64 | 82% |
| GWS HD 3P#1 7x3.5 | 1 | 7.9 | 8.8 | 69 | 11820 | 39.2 | 410 | 14.46 | 79% |
| GWS HD 3P#1 7x3.5 | 1 | 8.8 | 10.3 | 90 | 12860 | 42.6 | 495 | 17.46 | 78% |
| GWS HD 3P#1 7x3.5 | 1 | 9.8 | 12.2 | 119 | 13840 | 45.9 | 584 | 20.60 | 75% |
| GWS HD 3P#1 7x3.5 | 1 | 10.8 | 13.9 | 150 | 14800 | 49.0 | 685 | 24.16 | 73% |
| APC E 7x5 | 1 | 6.8 | 11 | 74 | 9330 | 44.2 | 411 | 14.50 | 73% |
| APC E 7x5 | 1 | 7.8 | 13.1 | 102 | 10260 | 48.6 | 502 | 17.71 | 70% |
| APC E 7x5 | 1 | 8.8 | 15.2 | 133 | 11040 | 52.3 | 582 | 20.53 | 67% |
| APC E 7x5 | 1 | 9.8 | 17.45 | 171 | 11730 | 55.5 | 671 | 23.67 | 63% |
| APC E 7x5 | 1 | 10.5 | 18.4 | 193 | 12180 | 57.7 | 692 | 24.41 | 62% |
| APC E 7x5 | 1 | 10.7 | 19.5 | 208 | 12360 | 58.5 | 742 | 26.17 | 61% |
gobrushless test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC 7x5 | 1 | 10.5 | 18.53 | 194 | 12500 | 59.2 | 708 | 25.00 | 63% |
